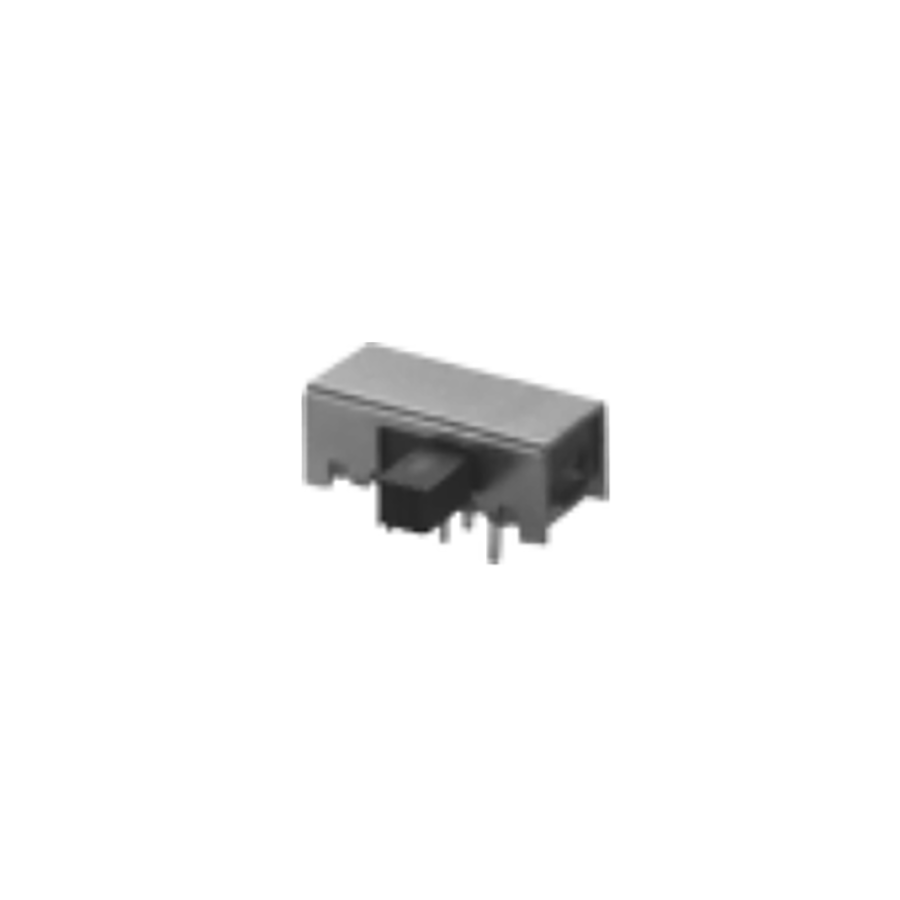

SLB2281R5
Manufacturer:
Apem
Mfr.Part #:
SLB2281R5
Datasheet:
Description:
Slide Switches Through Hole ON - ON DPDT Current Rating:300 mA Standard
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 30 V |
| Termination | PC Pin |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -20 °C |
| Voltage Rating (AC) | 125 V |
| Circuit Type | DPDT |
| Packaging | Tube |
| RoHS | Compliant |
| Contact Plating | Silver |
| Current Rating | 300 mA |
| Max Voltage Rating (DC) | 30 V |
| Orientation | Right Angle |
| Actuator Length | 5 mm |
| Throw Configuration | DPDT |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 125 V |
| Switch Function | ON - ON |
| Illumination Type | Non-Illuminated |
| Electrical Life | 10 kcycles |
| Switch Travel | 3.2 mm |
| Actuator Material | Thermoplastic |
| Contact Current Rating | 300 mA |
| Actuator Type | Standard |
| Termination Style | PC Pin |
