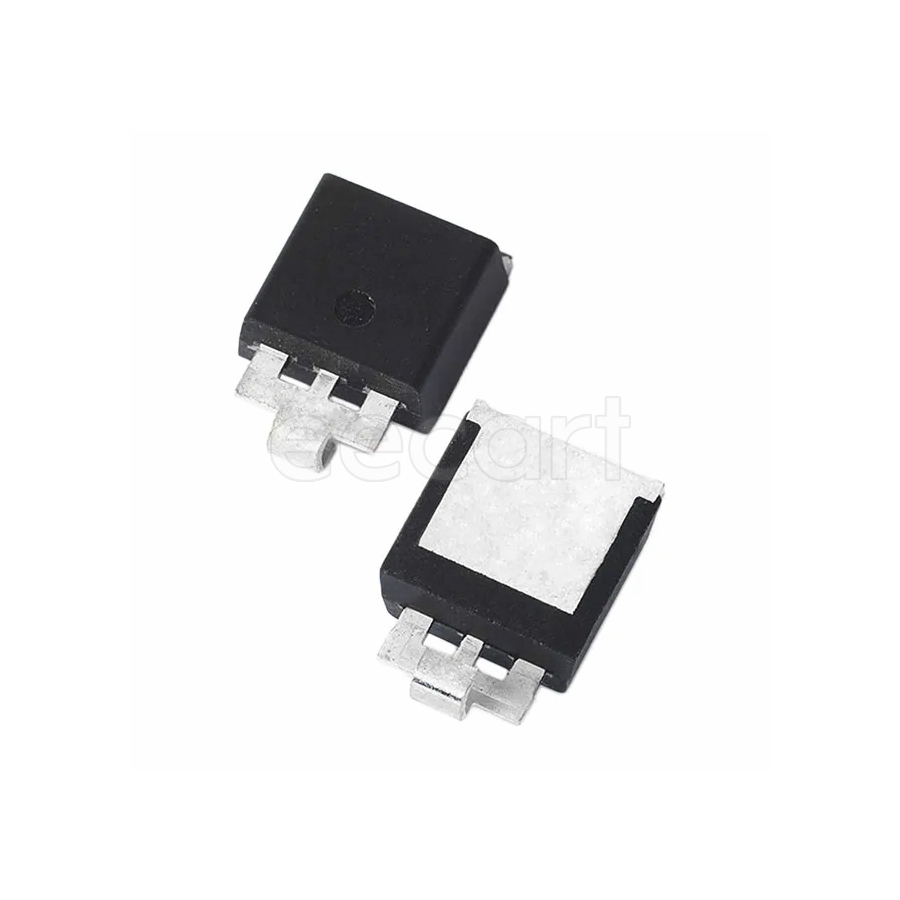

SLD8S33A
Manufacturer:
Littelfuse
Mfr.Part #:
SLD8S33A
Datasheet:
Description:
TVS Diodes SMTO-263 SMD/SMT Working Voltage:33 V Breakdown Voltage:36.7 V Clamping Voltage:53.3 V Peak Pulse Power:2.2 kW Polarity:Unidirectional
| Parameter | Value |
|---|---|
| Max Operating Temperature | 175 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| RoHS | Non-Compliant |
| Polarity | Unidirectional |
| Working Voltage | 33 V |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Peak Pulse Current | 132 A |
| Number of Channels | 1 |
| Breakdown Voltage | 36.7 V |
| Max Reverse Leakage Current | 2 µA |
| Min Breakdown Voltage | 36.7 V |
| Clamping Voltage | 53.3 V |
| Peak Pulse Power | 2.2 kW |
| Reverse Voltage | 33 V |
| Test Current | 5 mA |
| Max Breakdown Voltage | 40.6 V |
| Voltage ESD Contact | 30 kV |
| Voltage ESD Air Gap | 30 kV |
Stock: 90
Distributors
pcbx
pcbxUnit Price$2.08397
Ext.Price$2.08397
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.08397 | $2.08397 |
| 10 | $1.82957 | $18.29570 |
| 25 | $1.72151 | $43.03775 |
| 50 | $1.61983 | $80.99150 |
| 100 | $1.52416 | $152.41600 |
| 300 | $1.40557 | $421.67100 |
| 500 | $1.29621 | $648.10500 |
| 1000 | $1.26401 | $1264.01000 |
