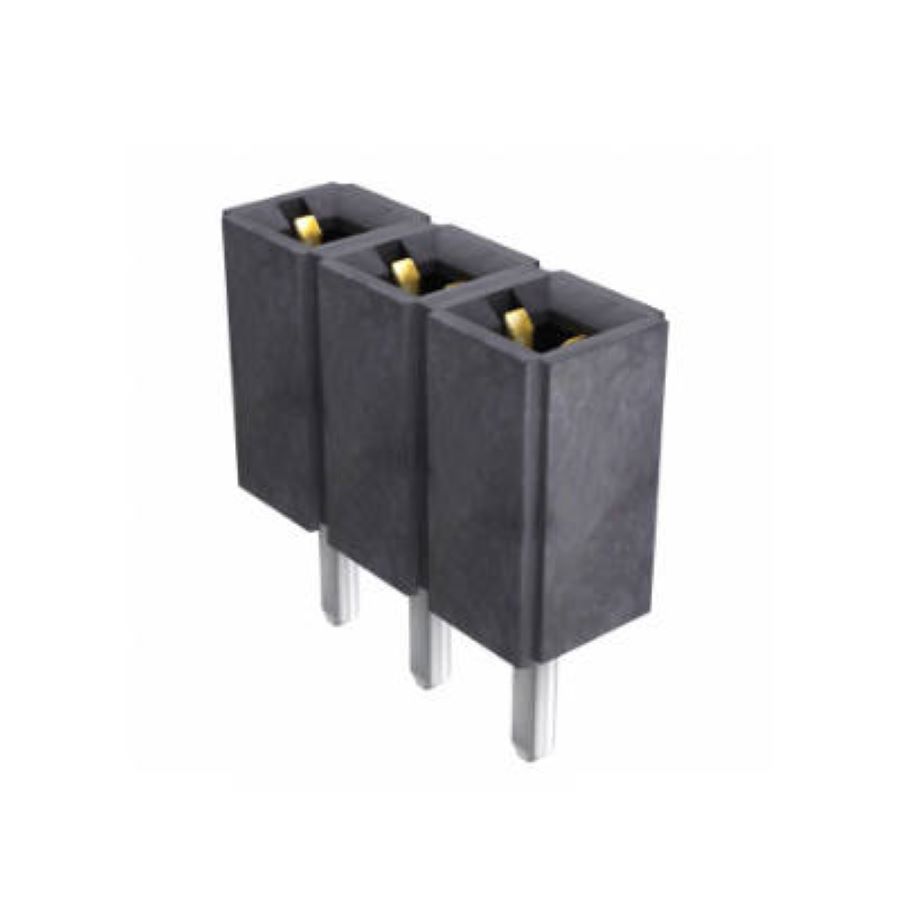

SLW-103-01-S-S
Manufacturer:
Samtec
Mfr.Part #:
SLW-103-01-S-S
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle Number of Positions:3 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 7.62 mm |
| Width | 2.54 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bulk |
| Depth | 2.54 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Pitch | 2.54 mm |
| Max Current Rating | 7.1 A |
| Orientation | Straight |
| Color | Black |
| Gender | Socket (Female) |
| Number of Contacts | 3 |
| Connector Type | Receptacle |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Row Spacing | 2.54 mm |
| Housing Material | Polyester |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 50 V |
| Housing Color | Black |
| Termination Post Length | 2.92 mm |
Stock: 318
Distributors
pcbx
pcbxUnit Price$0.51296
Ext.Price$0.51296
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.51296 | $0.51296 |
| 10 | $0.45158 | $4.51580 |
| 50 | $0.39754 | $19.87700 |
| 100 | $0.32146 | $32.14600 |
| 500 | $0.27273 | $136.36500 |
| 1000 | $0.20604 | $206.04000 |
| 3000 | $0.16945 | $508.35000 |
| 5000 | $0.13936 | $696.80000 |
| 10000 | $0.09490 | $949.00000 |
