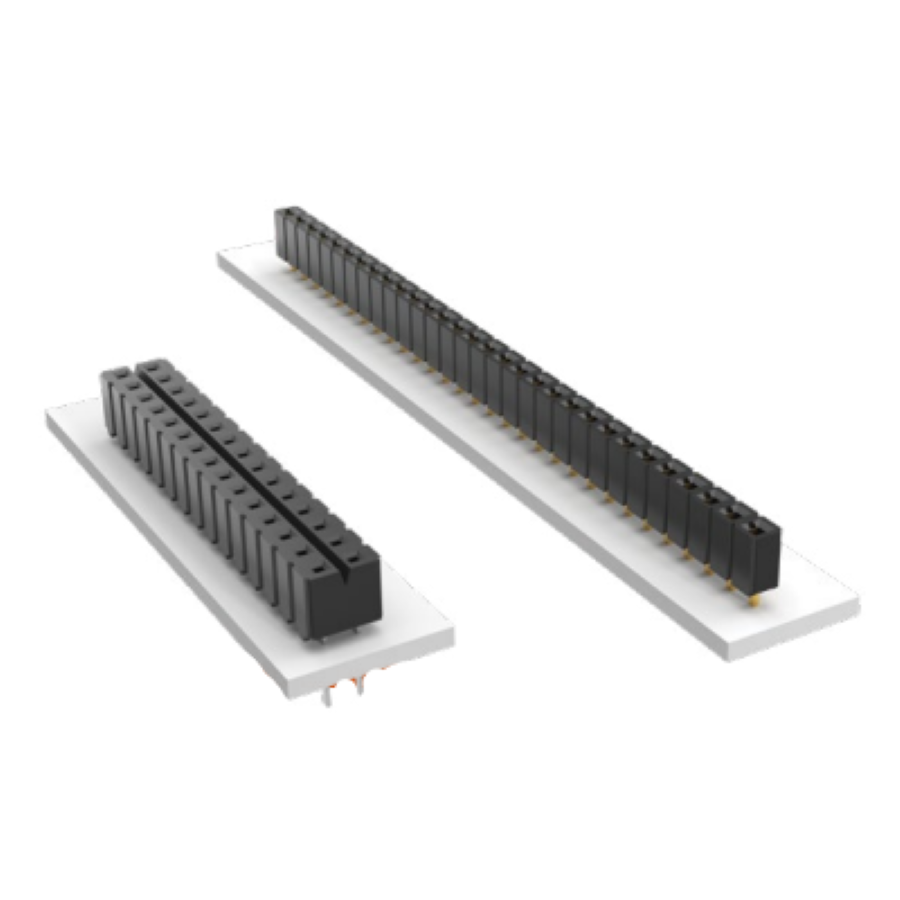

SLW-103-01-T-D
Manufacturer:
Samtec
Mfr.Part #:
SLW-103-01-T-D
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle Number of Positions:6 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 7.62 mm |
| Width | 4.95 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 550 V |
| Packaging | Bulk |
| Depth | 4.95 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Max Current Rating | 7.1 A |
| Orientation | Straight |
| Color | Black |
| Gender | Receptacle |
| Number of Contacts | 6 |
| Connector Type | Receptacle |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polyester |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 50 V |
| Housing Color | Black |
| Termination Post Length | 2.92 mm |
Stock: 503
Distributors
pcbx
pcbxUnit Price$0.53860
Ext.Price$0.53860
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.53860 | $0.53860 |
| 10 | $0.47306 | $4.73060 |
| 50 | $0.41550 | $20.77500 |
| 100 | $0.33599 | $33.59900 |
| 500 | $0.28640 | $143.20000 |
| 1000 | $0.21630 | $216.30000 |
| 3000 | $0.17731 | $531.93000 |
| 5000 | $0.14534 | $726.70000 |
| 10000 | $0.09917 | $991.70000 |
