SM02B-GHS-TB(LF)(SN)
Manufacturer:
JST
Mfr.Part #:
SM02B-GHS-TB(LF)(SN)
Datasheet:
Description:

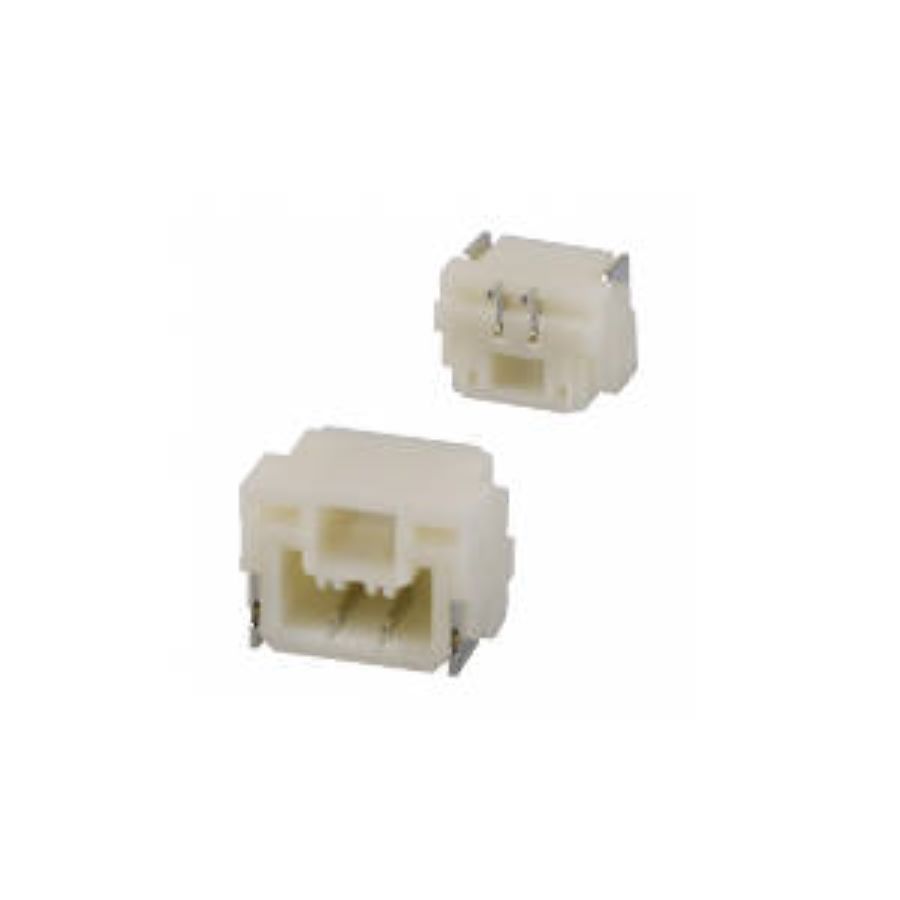

Headers and Wire Housings SMD/SMT Header Number of Positions:2 Pitch:1.25 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Reel |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Pitch | 1.25 mm |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 2 |
| Mounting Style | Surface Mount |
| lead free status | Lead Free |
| operating temperature | 85.0 °C |
| rohs status | Compliant |
| Connector Type | Header |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| size width | 4.05 mm |
| size length | 5.75 mm |
| size height | 4.25 mm |
| Housing Color | Natural |
| pin pitch | 1.24 mm |
Stock: 47852
Distributors
pcbx
pcbxUnit Price$0.09773
Ext.Price$0.09773
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.09773 | $0.09773 |
| 10 | $0.08782 | $0.87820 |
| 50 | $0.07891 | $3.94550 |
| 100 | $0.06988 | $6.98800 |
| 500 | $0.06189 | $30.94500 |
| 1000 | $0.05889 | $58.89000 |
| 3000 | $0.05603 | $168.09000 |
| 5000 | $0.05331 | $266.55000 |
