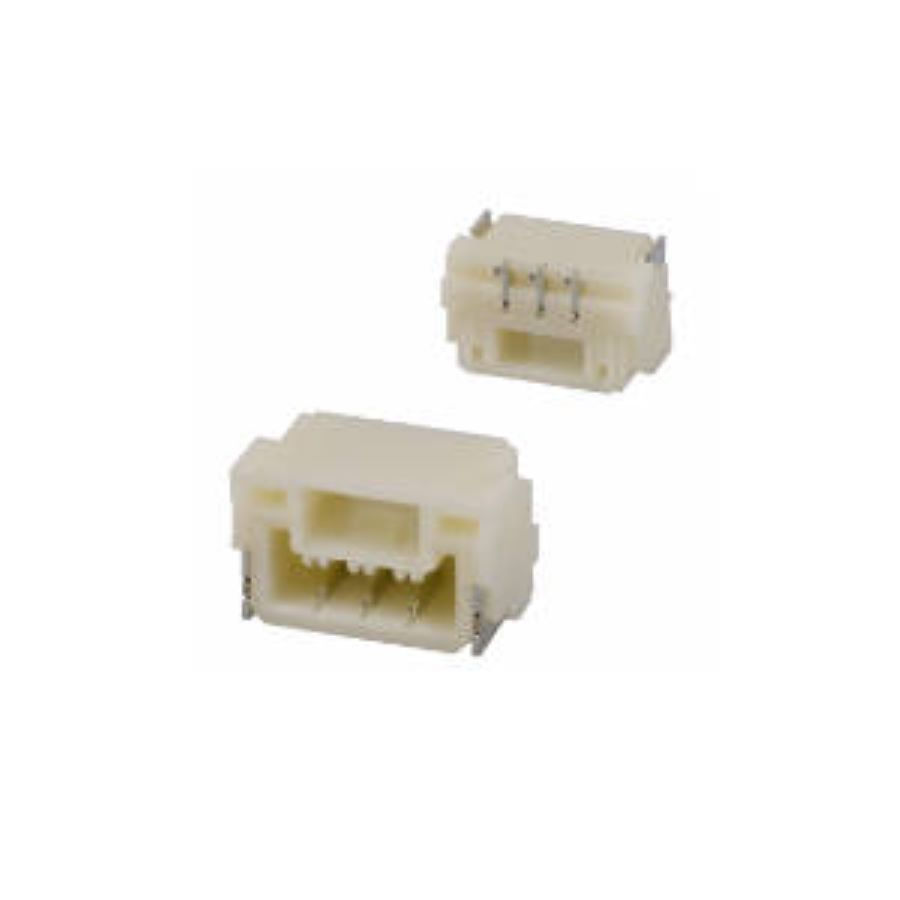

SM03B-GHS-TB(LF)(SN)
Manufacturer:
JST
Mfr.Part #:
SM03B-GHS-TB(LF)(SN)
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Male Pin, Outer Shroud Contact Number of Positions:3 Pitch:1.2446 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating (AC) | 50 V |
| Height | 4.25 mm |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 1.25 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze, Tin |
| Pitch | 1.2446 mm |
| Current Rating | 1 A |
| Orientation | Right Angle |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 3 |
| Connector Type | Male Pin, Outer Shroud Contact |
| Wire/Cable Gauge | 26 AWG |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Fastening Type | Latch, Ramp |
| Housing Color | Natural |
Stock: 963
Distributors
pcbx
pcbxUnit Price$0.22570
Ext.Price$0.22570
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.22570 | $0.22570 |
| 10 | $0.19236 | $1.92360 |
| 50 | $0.17723 | $8.86150 |
| 100 | $0.16329 | $16.32900 |
| 500 | $0.15085 | $75.42500 |
| 1000 | $0.13936 | $139.36000 |
| 3000 | $0.12333 | $369.99000 |
| 5000 | $0.10915 | $545.75000 |
| 10000 | $0.09660 | $966.00000 |
