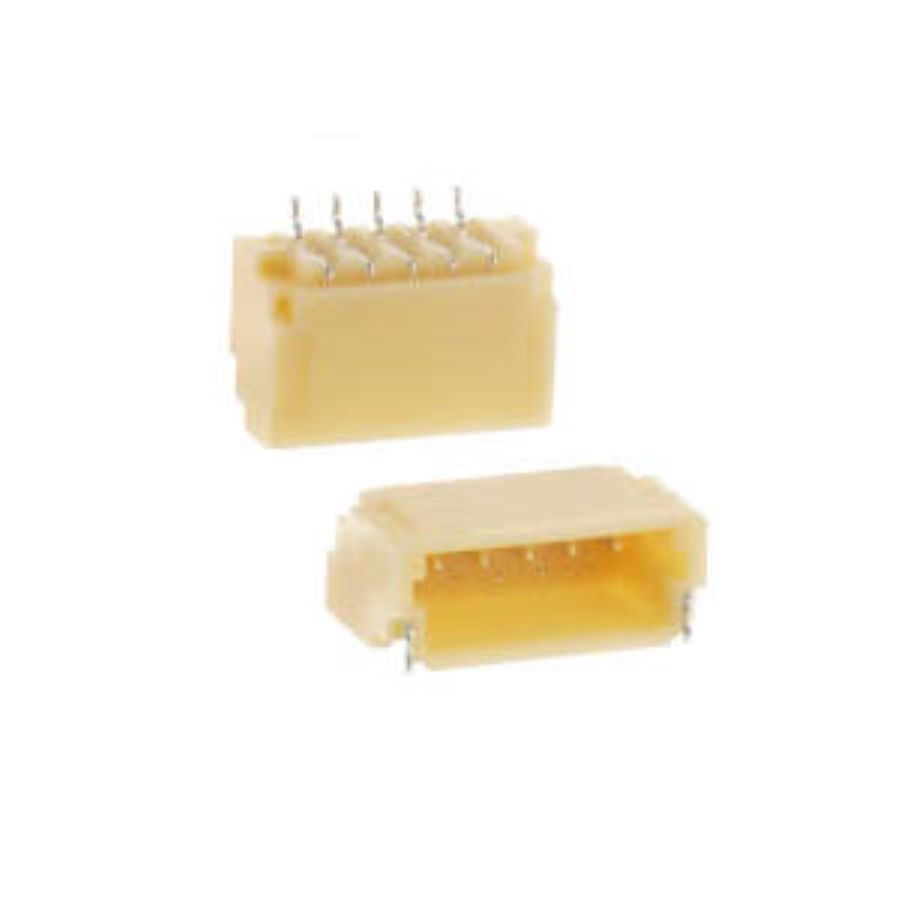

SM05B-SRSS-TB(LF)(SN)
Manufacturer:
JST
Mfr.Part #:
SM05B-SRSS-TB(LF)(SN)
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Header Number of Positions:5 Pitch:1 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Reel |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| Contact Plating | Tin, Tin Lead |
| Contact Material(Contact Finish) | Copper Alloy |
| Pitch | 1 mm |
| Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Horizontal |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 5 |
| Mounting Style | Horizontal, Surface Mount |
| lead free status | Lead Free |
| operating temperature | 85.0 °C |
| rohs status | Compliant |
| reach svhc compliance | No SVHC |
| Connector Type | Header |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| size width | 4.25 mm |
| size length | 7.00 mm |
| size height | 2.90 mm |
| voltage rating ac | 50 V |
| Housing Color | Natural |
| pin pitch | 1.00 mm |
Stock: 4573
Distributors
pcbx
pcbxUnit Price$0.25920
Ext.Price$0.25920
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.25920 | $0.25920 |
| 10 | $0.23157 | $2.31570 |
| 50 | $0.20688 | $10.34400 |
| 100 | $0.18080 | $18.08000 |
| 500 | $0.15801 | $79.00500 |
| 1000 | $0.15010 | $150.10000 |
| 3000 | $0.14259 | $427.77000 |
| 5000 | $0.13504 | $675.20000 |
