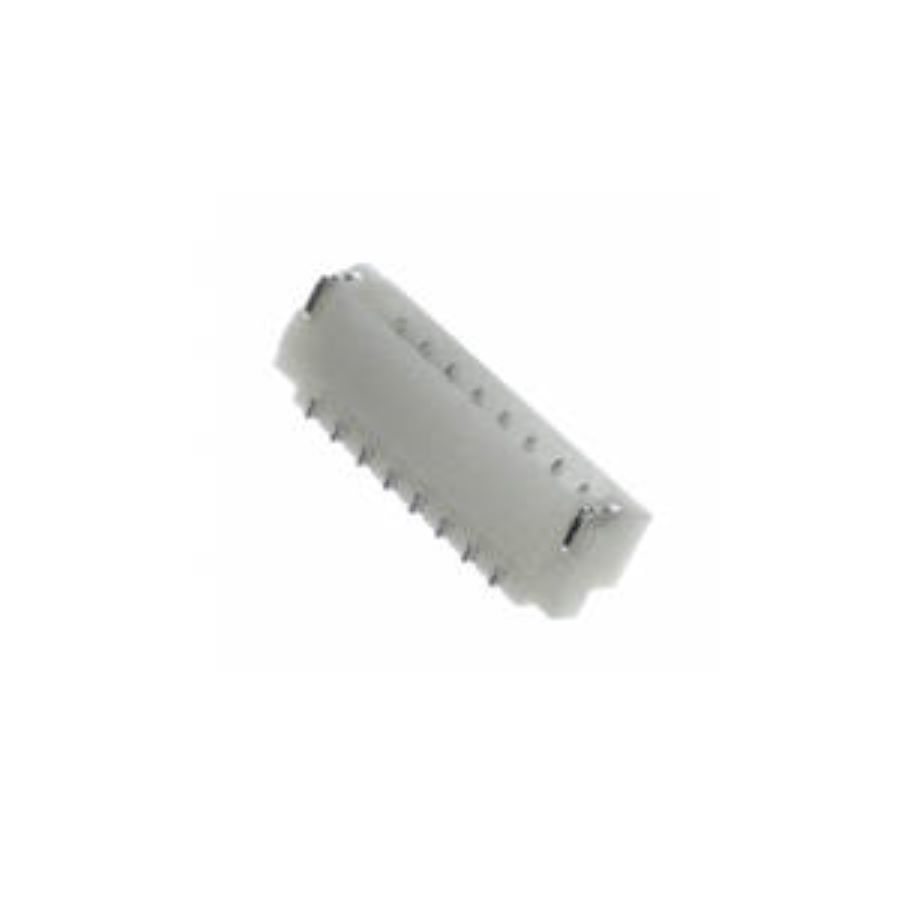

SM08B-SURS-TF(LF)(SN)
Manufacturer:
JST
Mfr.Part #:
SM08B-SURS-TF(LF)(SN)
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Header Number of Positions:8 Pitch:800 µm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 30 V |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Material | Polyamide |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 800 µm |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 800 µm |
| Current Rating | 500 mA |
| Working Voltage | 30 V |
| Flammability Rating | UL94 V-0 |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 8 |
| Number of Poles | 8 |
| Connector Type | Header |
| Wire/Cable Gauge | 32 AWG |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Insulation Material | Nylon |
| Body Plating | Tin |
Stock: 811
Distributors
pcbx
pcbxUnit Price$0.84467
Ext.Price$0.84467
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.84467 | $0.84467 |
| 10 | $0.81493 | $8.14930 |
| 25 | $0.78623 | $19.65575 |
| 50 | $0.75854 | $37.92700 |
| 100 | $0.73182 | $73.18200 |
| 300 | $0.67997 | $203.99100 |
| 500 | $0.63180 | $315.90000 |
| 1000 | $0.58102 | $581.02000 |
| 3000 | $0.53433 | $1602.99000 |
