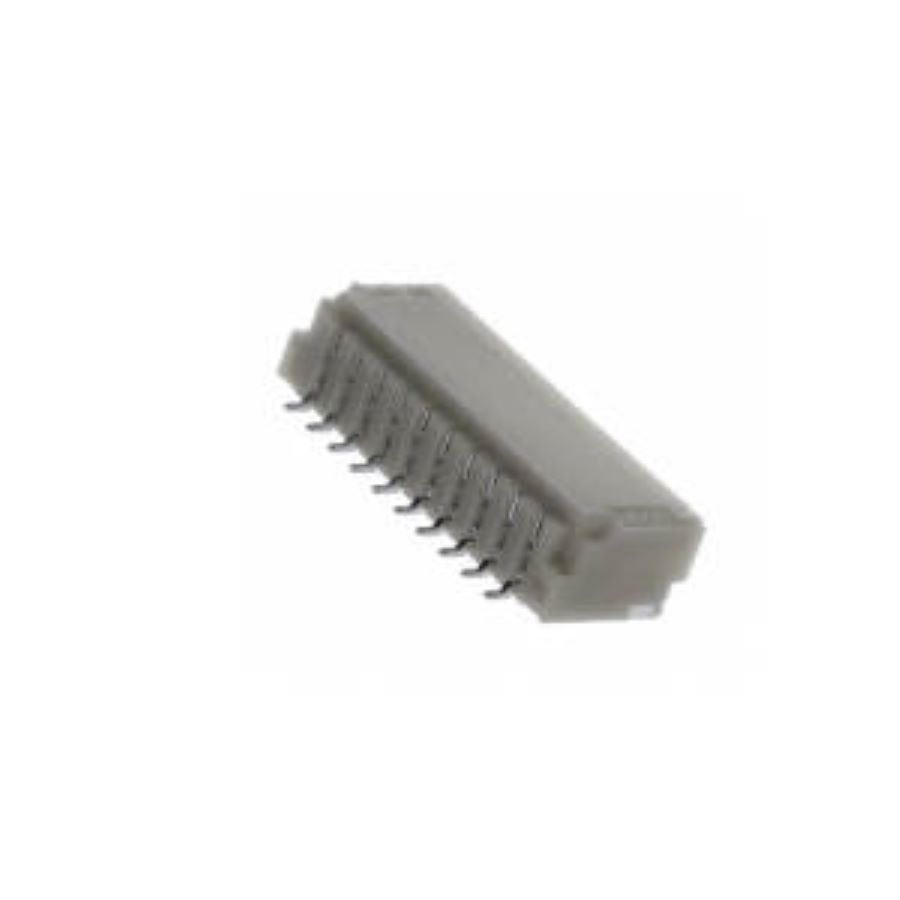

SM10B-SRSS-TB(LF)(SN)
Manufacturer:
JST
Mfr.Part #:
SM10B-SRSS-TB(LF)(SN)
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Header Number of Positions:10 Pitch:1 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Reel |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| Contact Plating | Tin, Tin Lead |
| Contact Material(Contact Finish) | Copper Alloy |
| Pitch | 1 mm |
| Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 10 |
| Mounting Style | Horizontal, Surface Mount |
| lead free status | Lead Free |
| operating temperature | 85.0 °C |
| rohs status | Compliant |
| reach svhc compliance | No SVHC |
| Connector Type | Header |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| size width | 4.25 mm |
| size length | 12.0 mm |
| size height | 2.90 mm |
| voltage rating ac | 50 V |
| Housing Color | Natural |
| pin pitch | 1.00 mm |
Stock: 18508
Distributors
pcbx
pcbxUnit Price$0.99514
Ext.Price$0.99514
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.99514 | $0.99514 |
| 10 | $0.88827 | $8.88270 |
| 25 | $0.84925 | $21.23125 |
| 50 | $0.81194 | $40.59700 |
| 100 | $0.77627 | $77.62700 |
| 300 | $0.74084 | $222.25200 |
| 500 | $0.70703 | $353.51500 |
| 1000 | $0.65141 | $651.41000 |
| 3000 | $0.60016 | $1800.48000 |
