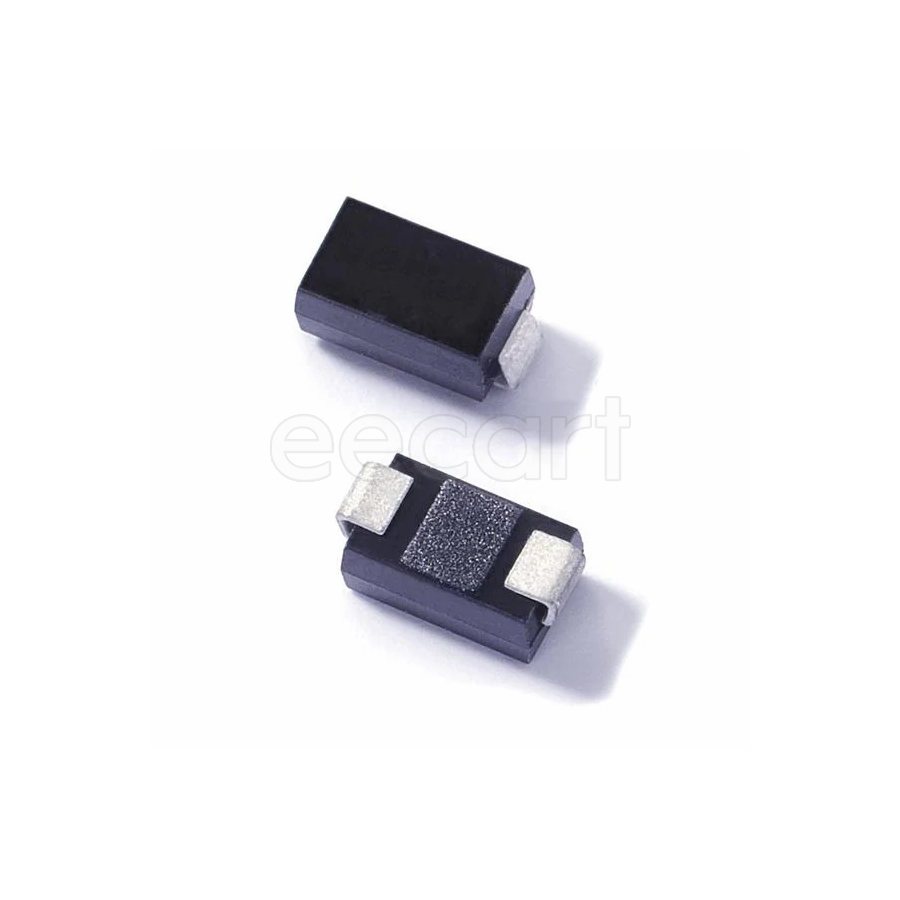

SMA6L22A
Manufacturer:
Littelfuse
Mfr.Part #:
SMA6L22A
Datasheet:
Description:
TVS Diodes SMA-FL SMD/SMT Working Voltage:22 V Breakdown Voltage:26.9 V Clamping Voltage:35.5 V Peak Pulse Power:600 W Polarity:Unidirectional
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Composition(Kit Type) | Zener |
| Packaging | Reel |
| RoHS | Compliant |
| Polarity | Unidirectional |
| Working Voltage | 22 V |
| Peak Pulse Current | 16.9 A |
| Number of Channels | 1 |
| Breakdown Voltage | 26.9 V |
| Min Breakdown Voltage | 24.4 V |
| Reverse Standoff Voltage | 22 V |
| Clamping Voltage | 35.5 V |
| Peak Pulse Power | 600 W |
| Power Line Protection | No |
| Number of Unidirectional Channels | 1 |
| Voltage ESD Contact | 30 kV |
| Voltage ESD Air Gap | 30 kV |
Stock: 1773
Distributors
pcbx
pcbxUnit Price$0.34454
Ext.Price$0.34454
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.34454 | $0.34454 |
| 10 | $0.21373 | $2.13730 |
| 50 | $0.17045 | $8.52250 |
| 100 | $0.13593 | $13.59300 |
| 500 | $0.11114 | $55.57000 |
| 1000 | $0.10344 | $103.44000 |
| 3000 | $0.08011 | $240.33000 |
| 5000 | $0.07080 | $354.00000 |
| 10000 | $0.06258 | $625.80000 |
