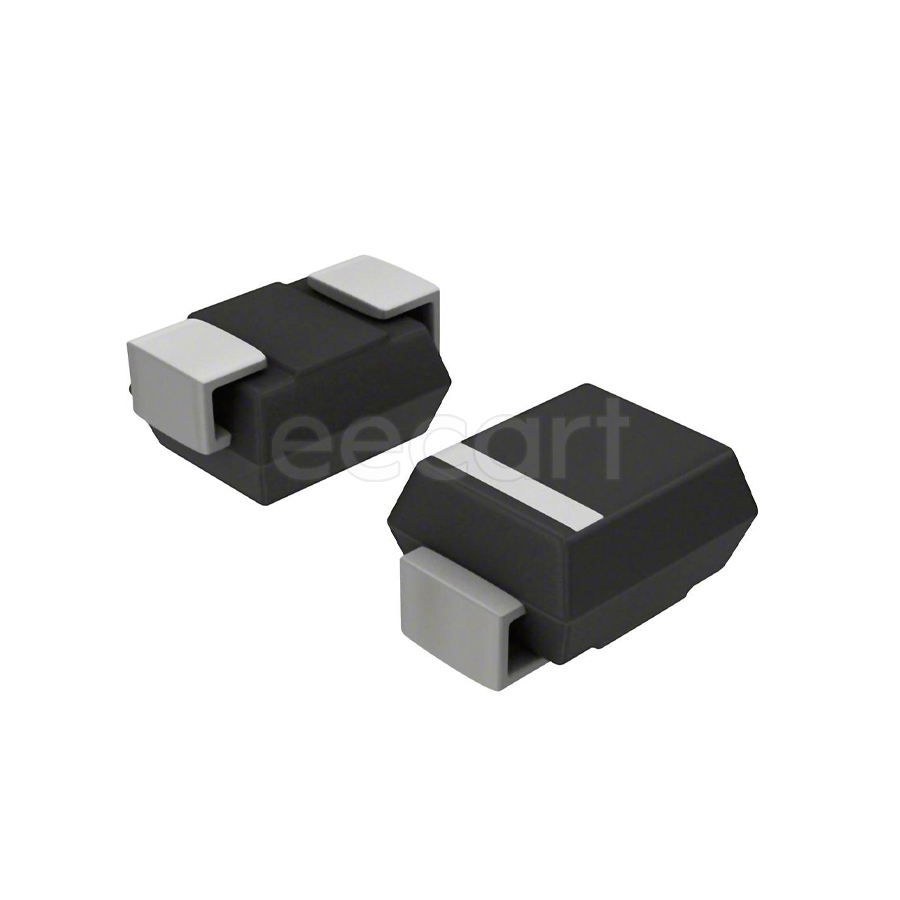

SMAJ13A
Manufacturer:
RUILON
Mfr.Part #:
SMAJ13A
Datasheet:
Description:
TVS Diodes SMA(DO-214AC) SMD/SMT Working Voltage:13 V Breakdown Voltage:14.4 V Clamping Voltage:21.5 V Peak Pulse Power:400 W Polarity:Unidirectional
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -65 °C |
| RoHS | Compliant |
| Peak Pulse Current | 18.6 A |
| Clamping Voltage | 21.5 V |
| Breakdown Voltage | 14.4 V |
| Peak Pulse Power | 400 W |
| Number of Channels | 1 |
| Polarity | Unidirectional |
| Packaging | Reel |
| Working Voltage | 13 V |
| Voltage ESD Contact | 30 kV |
| Voltage ESD Air Gap | 30 kV |
Stock: 2101
Distributors
pcbx
pcbxUnit Price$0.10982
Ext.Price$0.10982
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.10982 | $0.10982 |
| 10 | $0.05491 | $0.54910 |
| 50 | $0.04906 | $2.45300 |
| 100 | $0.04384 | $4.38400 |
| 500 | $0.04028 | $20.14000 |
| 1000 | $0.03701 | $37.01000 |
| 3000 | $0.03401 | $102.03000 |
| 5000 | $0.03125 | $156.25000 |
| 10000 | $0.02871 | $287.10000 |
