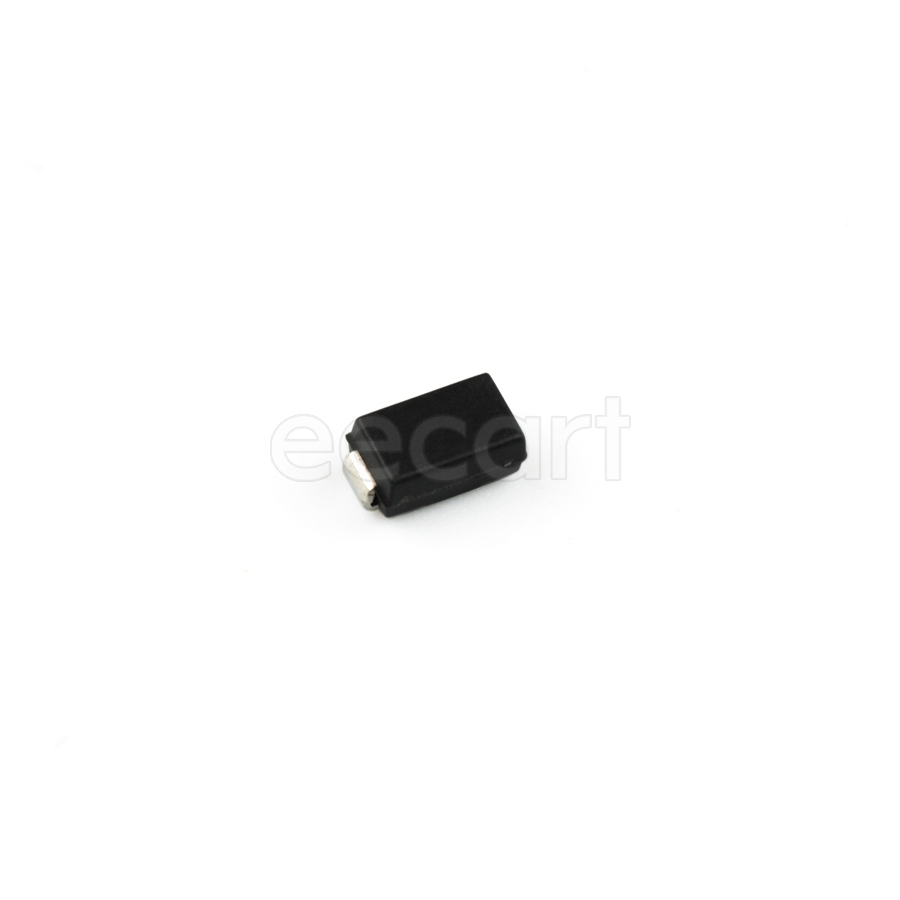

SMAJ18CA
Manufacturer:
Littelfuse
Mfr.Part #:
SMAJ18CA
Datasheet:
Description:
TVS Diodes SMA(DO-214AC) SMD/SMT Working Voltage:18 V Breakdown Voltage:19 V Clamping Voltage:29.2 V Peak Pulse Power:400 W Polarity:Bidirectional
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 18 V |
| Length | 5.28 mm |
| Width | 2.79 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 2 |
| Leakage Current | 1 µA |
| Power Rating | 400 W |
| Composition(Kit Type) | Zener |
| Height | 2.29 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Bidirectional |
| REACH SVHC | No SVHC |
| Number of Elements | 1 |
| Operating Supply Voltage | 18 V |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Max Power Dissipation | 3.3 W |
| Power Dissipation | 400 W |
| Peak Pulse Current | 13.7 A |
| Number of Channels | 1 |
| Breakdown Voltage | 19 V |
| Max Reverse Leakage Current | 1 µA |
| Direction(Counting Sequence) | Bidirectional |
| Min Breakdown Voltage | 20 V |
| Reverse Standoff Voltage | 18 V |
| Clamping Voltage | 29.2 V |
| Power Line Protection | No |
| Max Surge Current | 13.7 A |
| Number of Bidirectional Channels | 1 |
| Reverse Breakdown Voltage | 20 V |
| Reverse Voltage | 18 V |
| Test Current | 1 mA |
| Max Breakdown Voltage | 22.1 V |
| Schedule B | 8541100080 |
| Peak Pulse Power | 400 W |
| Working Voltage | 18 V |
Stock: 5275
Distributors
pcbx
pcbxUnit Price$0.10166
Ext.Price$0.10166
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.10166 | $0.10166 |
| 10 | $0.09129 | $0.91290 |
| 50 | $0.08198 | $4.09900 |
| 100 | $0.07327 | $7.32700 |
| 500 | $0.06548 | $32.74000 |
| 1000 | $0.05773 | $57.73000 |
| 3000 | $0.05090 | $152.70000 |
| 5000 | $0.04488 | $224.40000 |
