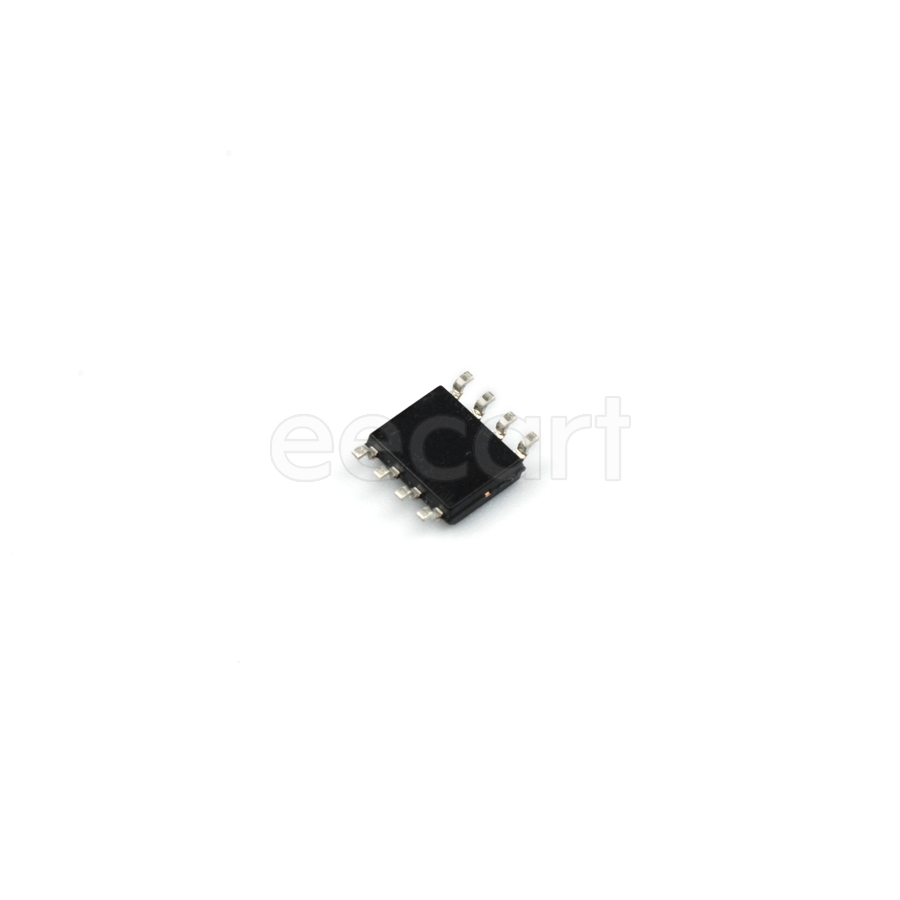

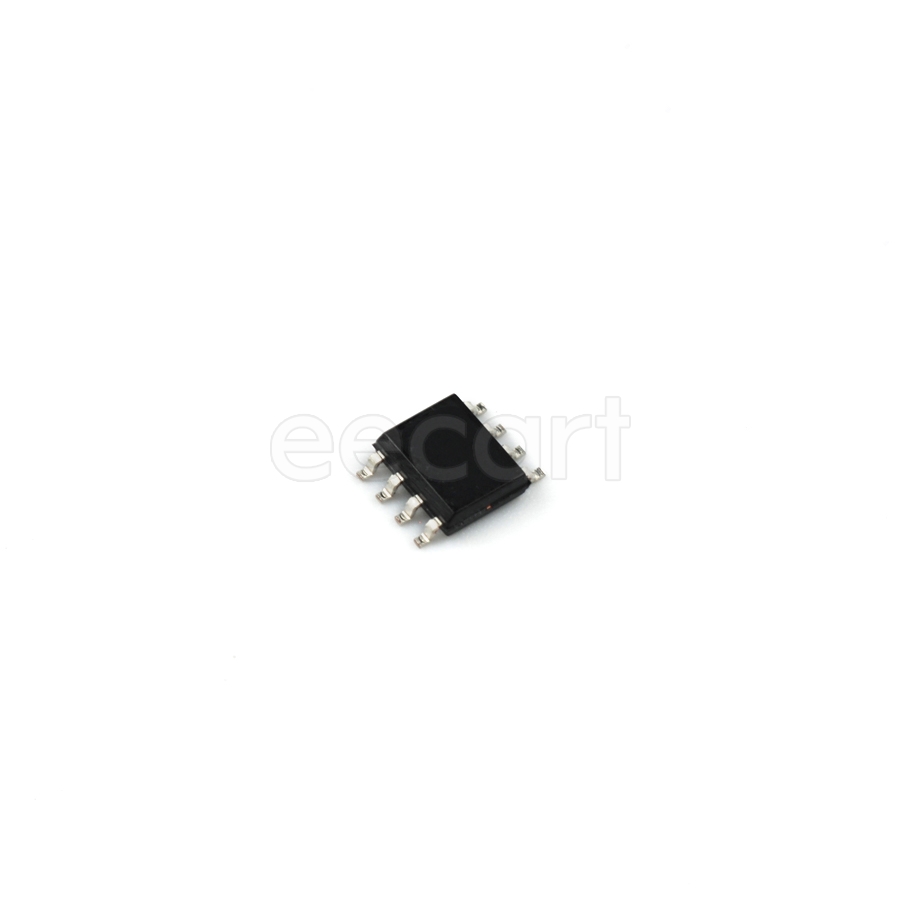

SMDA12C.TBT
Manufacturer:
Semtech
Mfr.Part #:
SMDA12C.TBT
Datasheet:
Description:
TVS Diodes SOIC-8 SMD/SMT Working Voltage:12 V Breakdown Voltage:13.3 V Clamping Voltage:19 V Peak Pulse Power:300 W Polarity:Bidirectional
| Parameter | Value |
|---|---|
| Capacitance | 120 pF |
| Length | 5 mm |
| Width | 4 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 8 |
| Leakage Current | 1 µA |
| Composition(Kit Type) | Zener |
| Height | 1.5 mm |
| Packaging | Reel |
| Depth | 4 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Bidirectional |
| Voltage | 5 V |
| Number of Elements | 4 |
| Working Voltage | 12 V |
| Operating Supply Voltage | 12 V |
| Peak Pulse Current | 12 A |
| Number of Channels | 4 |
| Breakdown Voltage | 13.3 V |
| Max Reverse Leakage Current | 1 µA |
| Direction(Counting Sequence) | Bidirectional |
| Min Breakdown Voltage | 13.3 V |
| Reverse Standoff Voltage | 12 V |
| Clamping Voltage | 19 V |
| Power Line Protection | No |
| Number of Bidirectional Channels | 4 |
| Reverse Breakdown Voltage | 13.3 V |
| ESD Protection | Yes |
| Test Current | 1 mA |
| Max Breakdown Voltage | 13.3 V |
| Schedule B | 8536300000 |
| Peak Pulse Power | 300 W |
| Voltage ESD Contact | 8 kV |
| Voltage ESD Air Gap | 15 kV |
| Diode Capacitance | 120 pF |
Stock: 248
Distributors
pcbx
pcbxUnit Price$1.54955
Ext.Price$1.54955
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.54955 | $1.54955 |
| 10 | $1.29957 | $12.99570 |
| 25 | $1.18403 | $29.60075 |
| 50 | $1.07876 | $53.93800 |
| 100 | $0.98286 | $98.28600 |
