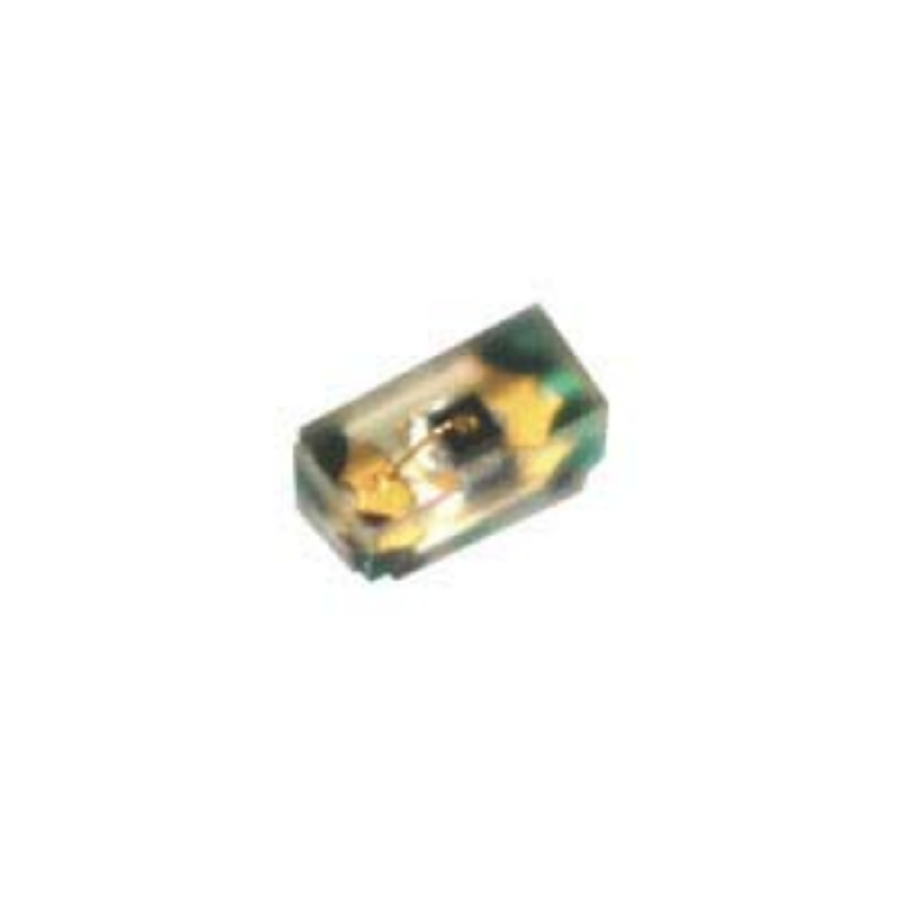

SML-LX0402USBC-TR
Manufacturer:
Lumex
Mfr.Part #:
SML-LX0402USBC-TR
Datasheet:
Description:
LEDs 0402(1005 Metric) SMD/SMT Blue 463 nm 20 mA 3.3 V
| Parameter | Value |
|---|---|
| Length | 1 mm |
| Width | 500 µm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Height | 500 µm |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Approvals | CSA, UL |
| Forward Current | 20 mA |
| Forward Voltage | 3.3 V |
| Color | Blue |
| Illumination Color | Blue |
| Lens Style | Rectangle with Flat Top |
| Luminous Intensity | 60 mcd |
| Viewing Angle | 120 ° |
| Wavelength | 470 nm |
| Lens Transparency | Clear |
| Lens Color | Clear, Colorless |
| Dominant Wavelength/CCT (K) | 463 nm |
| Test Current | 20 mA |
Stock: 2728
Distributors
pcbx
pcbxUnit Price$0.81987
Ext.Price$0.81987
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.81987 | $0.81987 |
| 10 | $0.57964 | $5.79640 |
| 25 | $0.52264 | $13.06600 |
| 50 | $0.47124 | $23.56200 |
| 100 | $0.42490 | $42.49000 |
| 300 | $0.39292 | $117.87600 |
| 500 | $0.36334 | $181.67000 |
| 1000 | $0.34710 | $347.10000 |
| 3000 | $0.32327 | $969.81000 |
| 5000 | $0.30108 | $1505.40000 |
| 10000 | $0.28042 | $2804.20000 |
