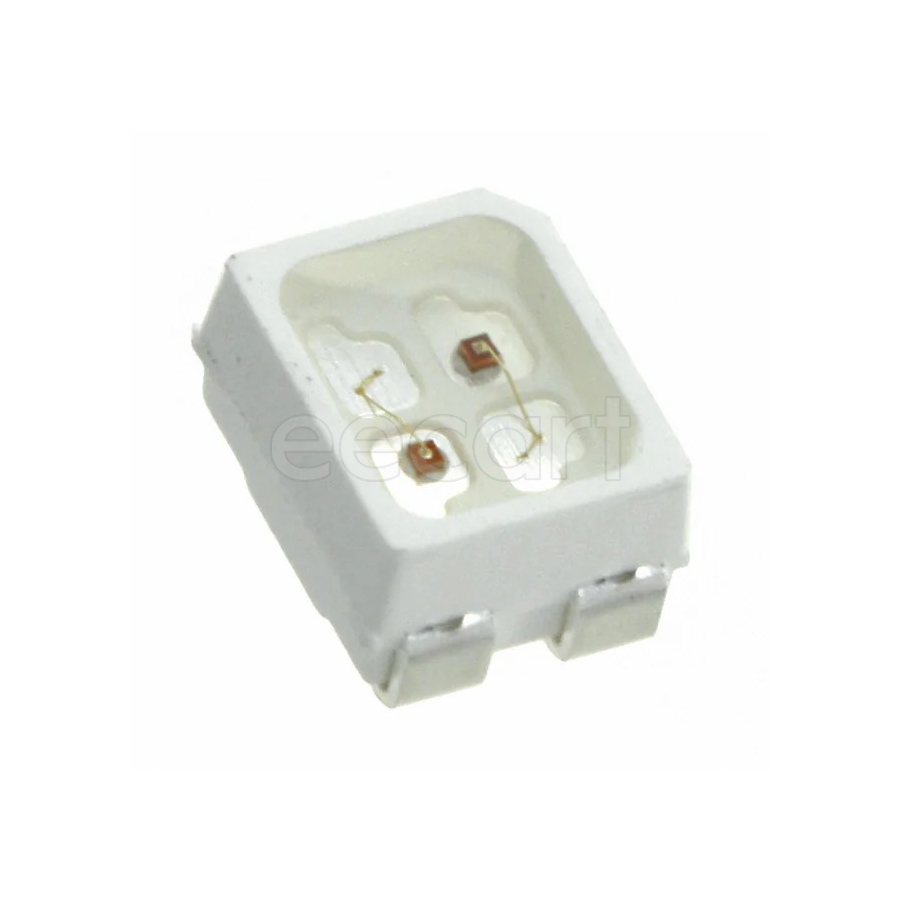

SML-LX2835YGC-TR
Manufacturer:
Lumex
Mfr.Part #:
SML-LX2835YGC-TR
Datasheet:
Description:
LEDs SMD/SMT Yellow, Green 585 nm, 565 nm 20 mA, 20 mA 2.1 V
| Parameter | Value |
|---|---|
| Length | 3.2 mm |
| Width | 2.7 mm |
| Height | 1.8 mm |
| Packaging | Reel |
| RoHS | Compliant |
| Forward Voltage | 2.1 V |
| Color | Green, Yellow |
| Luminous Intensity | 15 mcd |
| Viewing Angle | 120 ° |
| Lens Transparency | Clear |
| Lens Color | Colorless |
| Test Current | 20 mA |
| Dominant Wavelength/CCT (K) | 585 nm, 565 nm |
| Forward Current | 20 mA, 20 mA |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Illumination Color | Yellow, Green |
Stock: 785
Distributors
pcbx
pcbxUnit Price$0.40010
Ext.Price$0.40010
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.40010 | $0.40010 |
| 10 | $0.27187 | $2.71870 |
| 50 | $0.23121 | $11.56050 |
| 100 | $0.19663 | $19.66300 |
| 500 | $0.16414 | $82.07000 |
| 1000 | $0.15902 | $159.02000 |
| 3000 | $0.14635 | $439.05000 |
| 5000 | $0.13469 | $673.45000 |
| 10000 | $0.12397 | $1239.70000 |
