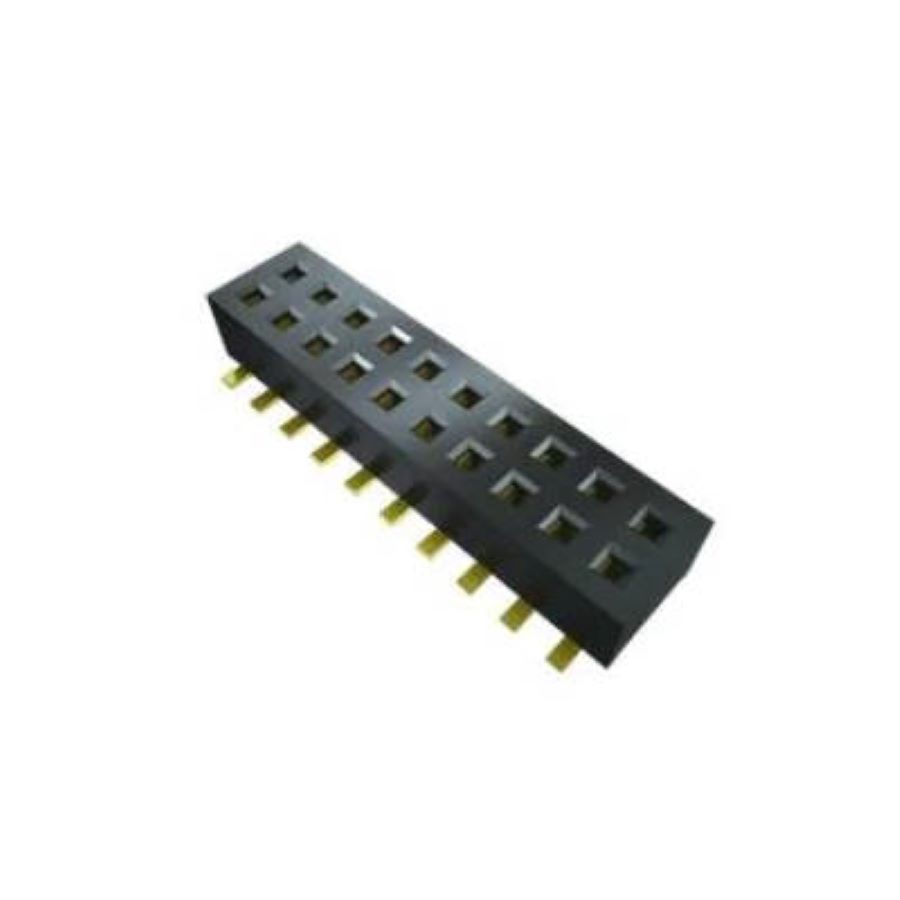

SMM-110-02-S-D
Manufacturer:
Samtec
Mfr.Part #:
SMM-110-02-S-D
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Receptacle, Socket Number of Positions:20 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 20 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Voltage Rating | 350 V |
| Depth | 4 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Pitch | 2 mm |
| Current Rating | 3.9 A |
| Max Current Rating | 3.9 A |
| Orientation | Vertical |
| Color | Black |
| Gender | Socket (Female) |
| Number of Contacts | 20 |
| Connector Type | Receptacle, Socket |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Row Spacing | 2 mm |
| Housing Material | Polymer |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 350 V |
| Housing Color | Black |
Stock: 1224
Distributors
pcbx
pcbxUnit Price$3.23506
Ext.Price$3.23506
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.23506 | $3.23506 |
| 10 | $2.88070 | $28.80700 |
| 25 | $2.56516 | $64.12900 |
| 50 | $2.28418 | $114.20900 |
| 100 | $2.03398 | $203.39800 |
| 300 | $1.81119 | $543.35700 |
| 500 | $1.61280 | $806.40000 |
| 1000 | $1.43614 | $1436.14000 |
| 3000 | $1.27883 | $3836.49000 |
| 5000 | $1.13877 | $5693.85000 |
