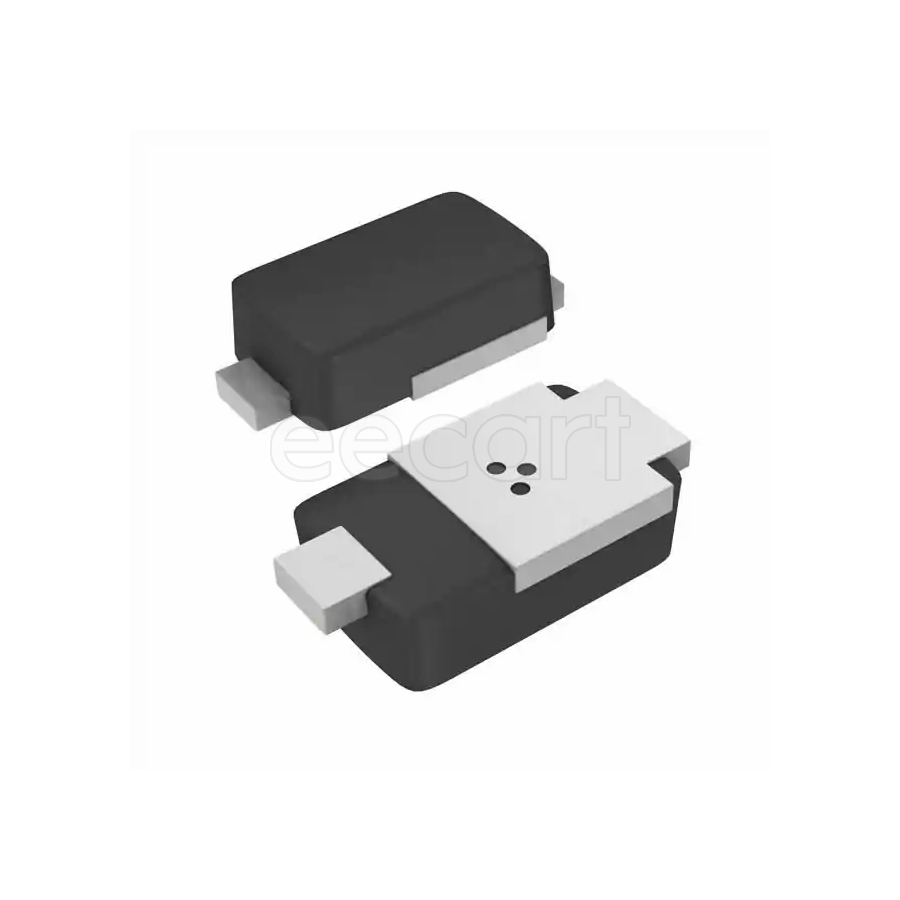

SMM4F5.0A-TR
Manufacturer:
STMicroelectronics
Mfr.Part #:
SMM4F5.0A-TR
Datasheet:
Description:
TVS Diodes DO-222AA-2 SMD/SMT Working Voltage:5 V Breakdown Voltage:6.46 V Clamping Voltage:13.4 V Peak Pulse Power:400 W Polarity:Unidirectional
| Parameter | Value |
|---|---|
| Termination | SMD/SMT |
| Max Operating Temperature | 175 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Leakage Current | 10 µA |
| Composition(Kit Type) | Zener |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Unidirectional |
| Number of Elements | 1 |
| Operating Supply Voltage | 5 V |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Max Power Dissipation | 400 W |
| Peak Pulse Current | 174 A |
| Number of Channels | 1 |
| Breakdown Voltage | 6.46 V |
| Max Reverse Leakage Current | 10 µA |
| Max Repetitive Reverse Voltage (Vrrm) | 5 V |
| Element Configuration | Single |
| Direction(Counting Sequence) | Unidirectional |
| Min Breakdown Voltage | 6.46 V |
| Reverse Standoff Voltage | 5 V |
| Clamping Voltage | 13.4 V |
| Power Line Protection | No |
| Number of Unidirectional Channels | 1 |
| Max Surge Current | 174 A |
| Reverse Breakdown Voltage | 6.46 V |
| Test Current | 10 mA |
| Max Junction Temperature (Tj) | 175 °C |
| Schedule B | 8541100080 |
| Peak Pulse Power | 400 W |
| Packaging | Reel |
| Working Voltage | 5 V |
| Voltage ESD Contact | 30 kV |
| Voltage ESD Air Gap | 30 kV |
Stock: 7065
Distributors
pcbx
pcbxUnit Price$0.17526
Ext.Price$0.17526
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.17526 | $0.17526 |
| 10 | $0.16671 | $1.66710 |
| 50 | $0.15748 | $7.87400 |
| 100 | $0.14876 | $14.87600 |
| 500 | $0.14106 | $70.53000 |
| 1000 | $0.13850 | $138.50000 |
| 3000 | $0.13161 | $394.83000 |
| 5000 | $0.12506 | $625.30000 |
| 10000 | $0.11883 | $1188.30000 |
