SMP28A-M3/84A
Manufacturer:
Vishay
Mfr.Part #:
SMP28A-M3/84A
Datasheet:
Description:

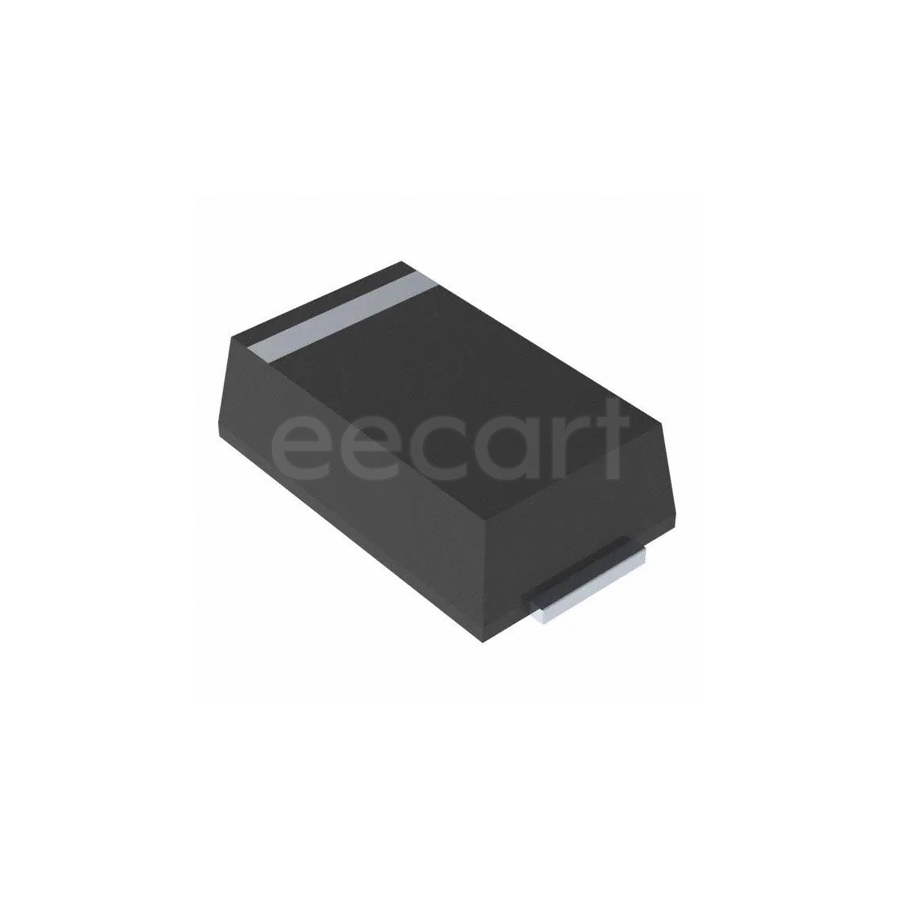

TVS Diodes DO-220AA-2 SMD/SMT Working Voltage:28 V Breakdown Voltage:31.1 V Clamping Voltage:45.4 V Peak Pulse Power:400 W Polarity:Unidirectional
| Parameter | Value |
|---|---|
| Length | 3.61 mm |
| Width | 2.18 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Leakage Current | 1 µA |
| Composition(Kit Type) | Zener |
| Height | 1.15 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Unidirectional |
| REACH SVHC | Unknown |
| Number of Elements | 1 |
| Working Voltage | 28 V |
| Power Dissipation | 400 W |
| Peak Pulse Current | 8.8 A |
| Breakdown Voltage | 31.1 V |
| Max Reverse Leakage Current | 1 µA |
| Element Configuration | Single |
| Direction(Counting Sequence) | Unidirectional |
| Min Breakdown Voltage | 31.1 V |
| Reverse Standoff Voltage | 28 V |
| Clamping Voltage | 45.4 V |
| Power Line Protection | No |
| Number of Unidirectional Channels | 1 |
| Max Surge Current | 8.8 A |
| Reverse Breakdown Voltage | 31.1 V |
| Test Current | 1 mA |
| Max Breakdown Voltage | 34.4 V |
| Peak Pulse Power | 400 W |
| Number of Channels | 1 |
Stock: 3681
Distributors
pcbx
pcbxUnit Price$0.18124
Ext.Price$0.18124
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.18124 | $0.18124 |
| 10 | $0.12140 | $1.21400 |
| 50 | $0.08450 | $4.22500 |
| 100 | $0.05882 | $5.88200 |
| 500 | $0.05754 | $28.77000 |
| 1000 | $0.05634 | $56.34000 |
| 3000 | $0.05566 | $166.98000 |
| 5000 | $0.03881 | $194.05000 |
