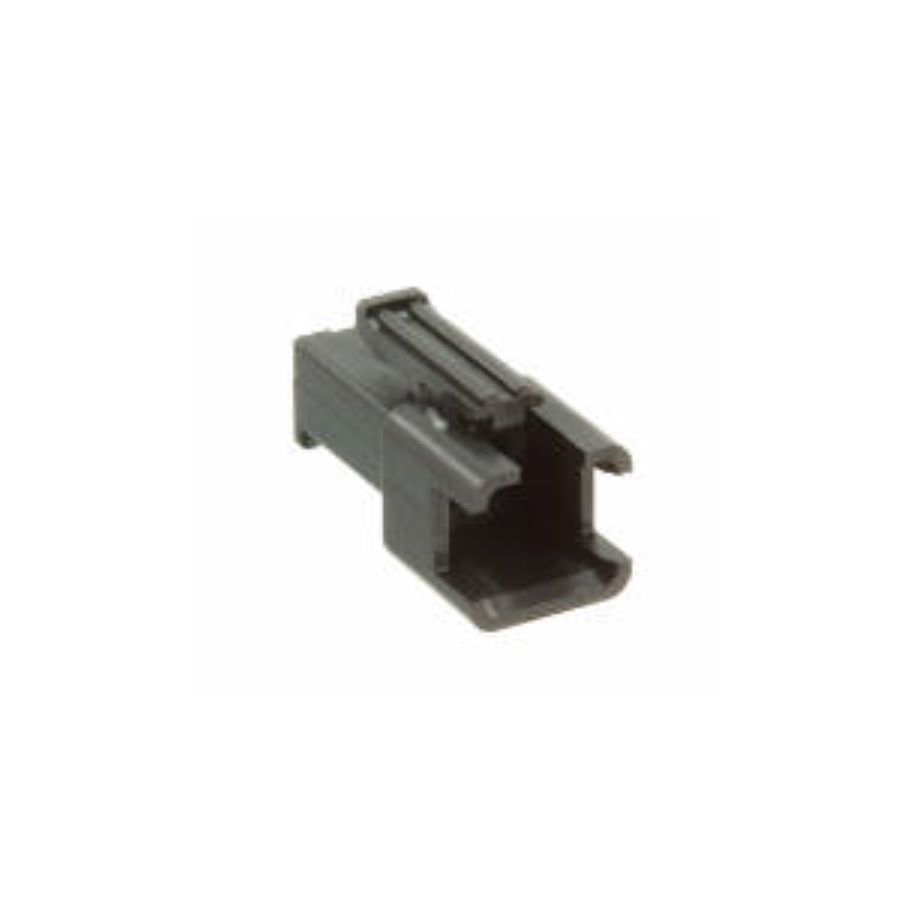

SMR-02V-B
Manufacturer:
JST
Mfr.Part #:
SMR-02V-B
Datasheet:
Description:
Headers and Wire Housings Free Hanging Male Pin, Receptacle Number of Positions:2 Pitch:2.5 mm
| Parameter | Value |
|---|---|
| Length | 8 mm |
| Width | 8 mm |
| Termination | Crimp |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Number of Pins | 2 |
| Height | 7.5 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 18.2 mm |
| RoHS | Compliant |
| Contact Material(Contact Finish) | Tin |
| Pitch | 2.5 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Color | Black |
| Gender | Female |
| Number of Contacts | 2 |
| Connector Type | Male Pin, Receptacle |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Fastening Type | Latch |
| Max Voltage Rating (AC) | 250 V |
| Wire Gauge (Max) | 28 AWG |
| Wire Gauge (Min) | 22 AWG |
| Housing Color | Black |
Stock: 1656
Distributors
pcbx
pcbxUnit Price$0.10388
Ext.Price$0.10388
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.10388 | $0.10388 |
| 10 | $0.05194 | $0.51940 |
| 50 | $0.04719 | $2.35950 |
| 100 | $0.04287 | $4.28700 |
| 500 | $0.03654 | $18.27000 |
| 1000 | $0.03114 | $31.14000 |
| 3000 | $0.02985 | $89.55000 |
| 5000 | $0.02862 | $143.10000 |
| 10000 | $0.02715 | $271.50000 |
