SN74HC74N
Manufacturer:
Texas Instruments
Mfr.Part #:
SN74HC74N
Datasheet:
Description:

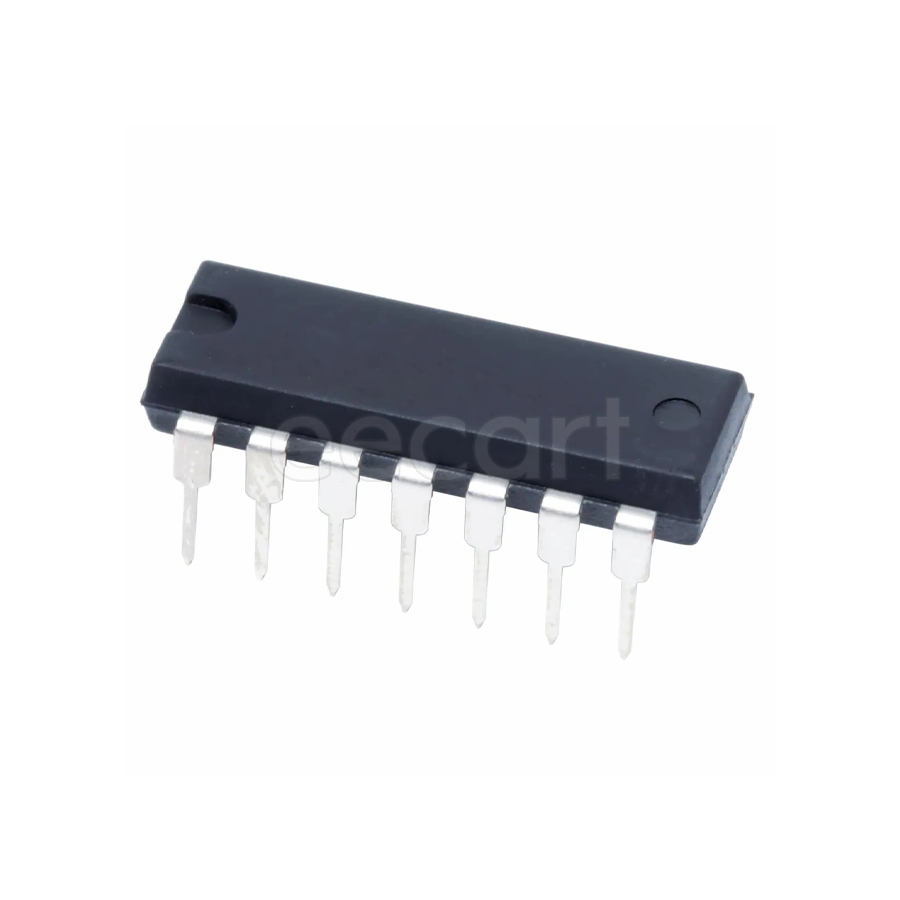

Latches and Flip Flops PDIP-14 Through Hole 60 MHz
| Parameter | Value |
|---|---|
| Length | 19.3 mm |
| Width | 6.35 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 14 |
| Height | 5.08 mm |
| Thickness | 3.9 mm |
| Radiation Hardening | No |
| Manufacturer Package Identifier | J (R-GDIP-T**) |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Frequency | 60 MHz |
| Number of Elements | 2 |
| Output Current | 5.2 mA |
| Number of Circuits | 2 |
| Operating Supply Voltage | 5 V |
| Lifecycle Status | Active |
| Max Supply Voltage | 6 V |
| Min Supply Voltage | 2 V |
| Number of Channels | 2 |
| Number of Bits | 2 |
| Turn-On Delay Time | 15 ns |
| Quiescent Current | 4 µA |
| Propagation Delay | 175 ns |
| High Level Output Current | -5.2 mA |
| Low Level Output Current | 5.2 mA |
| Logic Function | AND, D-Type, Flip-Flop |
| Number of Bits per Element | 1 |
| Max Frequency | 29 MHz |
| Number of Input Lines | 4 |
| Number of Output Lines | 2 |
| Clock Edge Trigger Type | Positive Edge |
| RoHS | Compliant |
| Polarity | Inverting, Non-Inverting |
| Packaging | Tube |
Stock: 53
Distributors
pcbx
pcbxUnit Price$0.79690
Ext.Price$0.79690
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.79690 | $0.79690 |
| 10 | $0.64224 | $6.42240 |
| 25 | $0.53174 | $13.29350 |
| 50 | $0.49450 | $24.72500 |
| 100 | $0.45988 | $45.98800 |
| 300 | $0.43623 | $130.86900 |
| 500 | $0.41380 | $206.90000 |
| 1000 | $0.38994 | $389.94000 |
