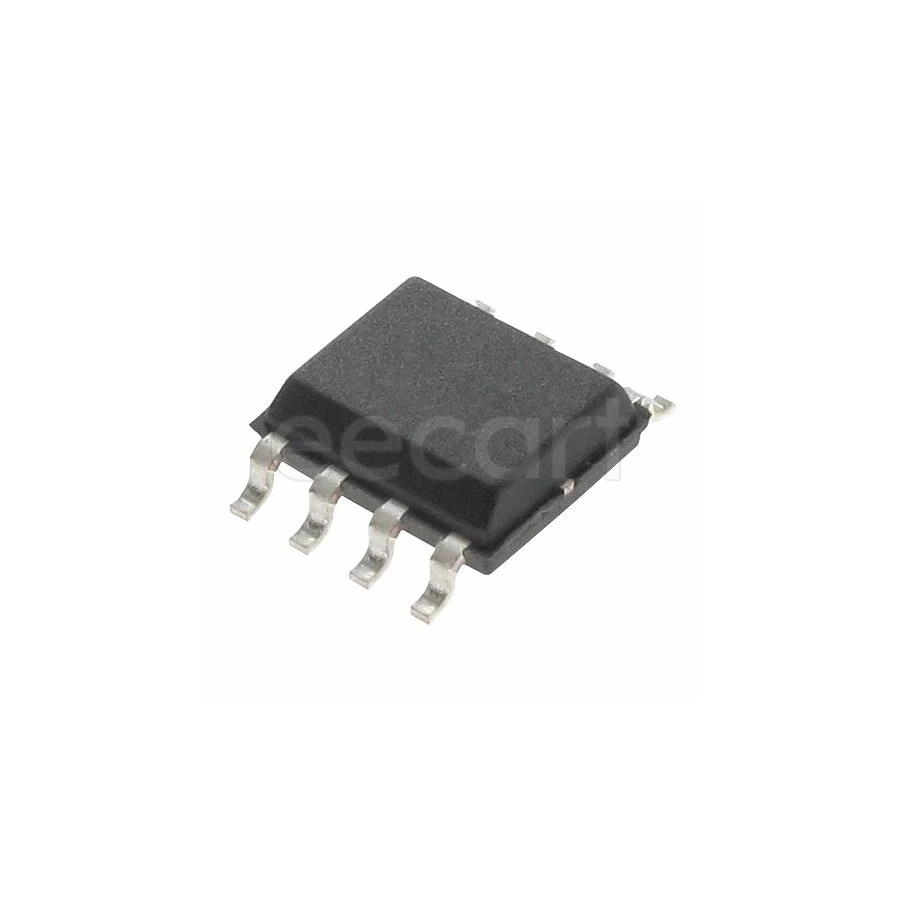

SP03-3.3BTG
Manufacturer:
Littelfuse
Mfr.Part #:
SP03-3.3BTG
Datasheet:
Description:
TVS Diodes SO-8 SMD/SMT Working Voltage:3.3 V Breakdown Voltage:3.3 V Clamping Voltage:18 V Peak Pulse Power:3.3 kW Polarity:Bidirectional
| Parameter | Value |
|---|---|
| Capacitance | 16 pF |
| Length | 5 mm |
| Width | 4 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Leakage Current | 1 µA |
| Height | 1.65 mm |
| Packaging | Reel |
| Depth | 4 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Bidirectional |
| REACH SVHC | No SVHC |
| Number of Elements | 1 |
| Working Voltage | 3.3 V |
| Number of Circuits | 2 |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Max Power Dissipation | 3.3 kW |
| Peak Pulse Current | 150 A |
| Number of Channels | 2 |
| Breakdown Voltage | 3.3 V |
| Max Reverse Leakage Current | 1 µA |
| Element Configuration | Dual |
| Direction(Counting Sequence) | Bidirectional |
| Min Breakdown Voltage | 3.3 V |
| Reverse Standoff Voltage | 3.3 V |
| Clamping Voltage | 18 V |
| Peak Pulse Power | 3.3 kW |
| Max Surge Current | 150 A |
| Reverse Breakdown Voltage | 3.3 V |
| Test Current | 50 µA |
| Max Breakdown Voltage | 3.3 V |
| Schedule B | 8536300000 |
| Voltage ESD Contact | 30 kV |
| Voltage ESD Air Gap | 30 kV |
| Diode Capacitance | 16 pF |
Stock: 62
Distributors
pcbx
pcbxUnit Price$1.38576
Ext.Price$1.38576
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.38576 | $1.38576 |
| 10 | $1.16774 | $11.67740 |
| 25 | $1.07902 | $26.97550 |
| 50 | $0.99704 | $49.85200 |
| 100 | $0.92131 | $92.13100 |
| 300 | $0.89093 | $267.27900 |
| 500 | $0.86155 | $430.77500 |
| 1000 | $0.83401 | $834.01000 |
