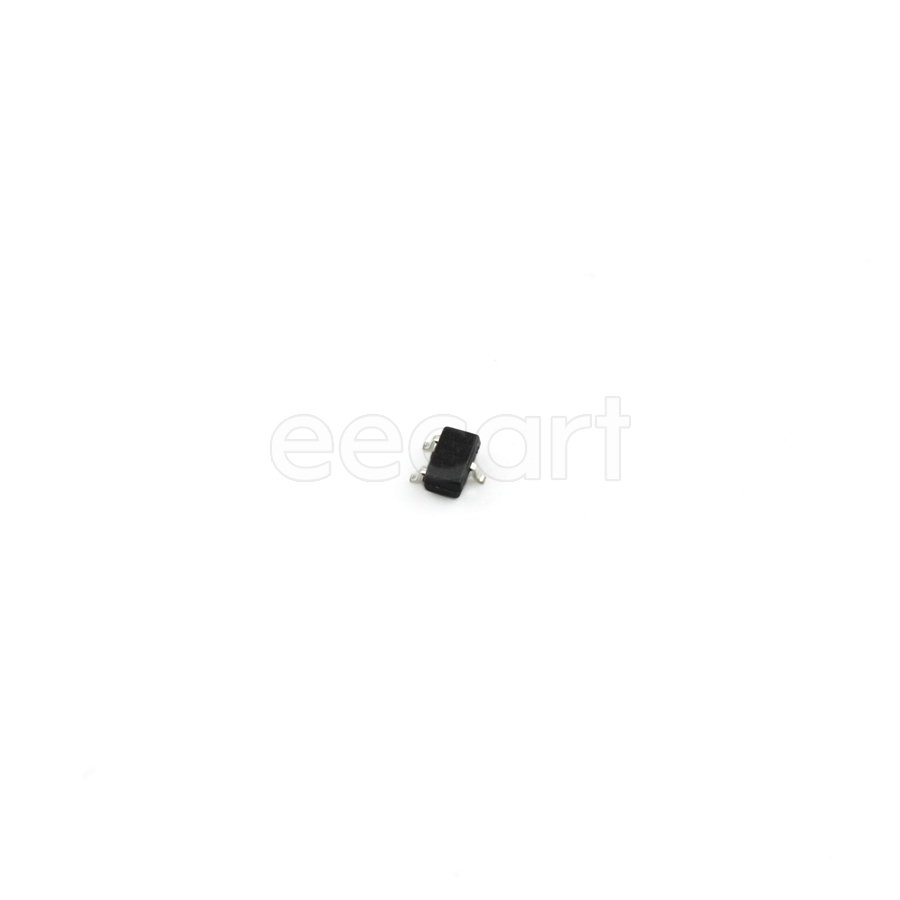

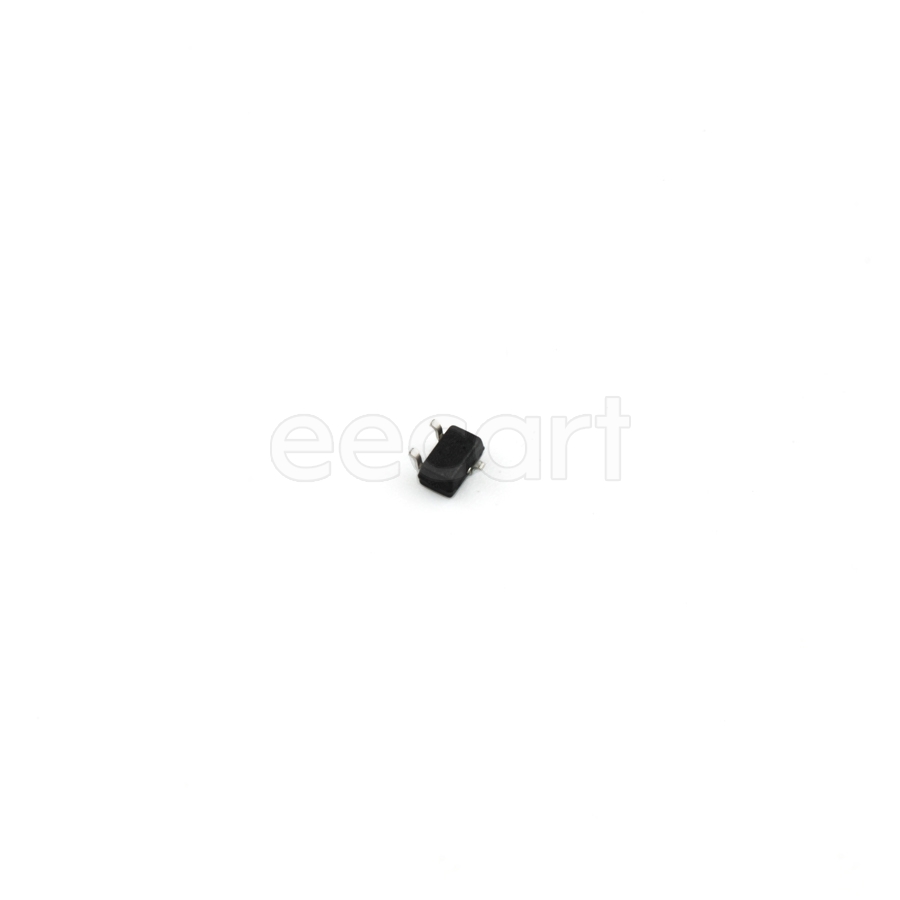

SP0502BAJTG
Manufacturer:
Littelfuse
Mfr.Part #:
SP0502BAJTG
Datasheet:
Description:
TVS Diodes SC-70-3 SMD/SMT Working Voltage:5.5 V Breakdown Voltage:5.5 V Clamping Voltage:8.5 V Peak Pulse Power:25 W Polarity:Bidirectional, Bipolar
| Parameter | Value |
|---|---|
| Capacitance | 30 pF |
| Voltage Rating (DC) | 5 V |
| Length | 2.25 mm |
| Width | 1.35 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 3 |
| Leakage Current | 100 nA |
| Composition(Kit Type) | Zener |
| Packaging | Reel |
| Depth | 1.35 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Bidirectional, Bipolar |
| REACH SVHC | Unknown |
| Working Voltage | 5.5 V |
| Operating Supply Voltage | 5.5 V |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Max Power Dissipation | 200 mW |
| Power Dissipation | 200 mW |
| Number of Channels | 2 |
| Breakdown Voltage | 5.5 V |
| Element Configuration | Common Anode |
| Direction(Counting Sequence) | Unidirectional |
| Reverse Standoff Voltage | 5.5 V |
| Clamping Voltage | 8.5 V |
| Power Line Protection | No |
| Number of Unidirectional Channels | 2 |
| Peak Pulse Current | 2 A |
| Peak Pulse Power | 25 W |
| Diode Capacitance | 1 pF |
| Voltage ESD Air Gap | 20 kV |
| Voltage ESD Contact | 15 kV |
Stock: 51339
Distributors
pcbx
pcbxUnit Price$0.23767
Ext.Price$0.23767
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.23767 | $0.23767 |
| 10 | $0.19749 | $1.97490 |
| 25 | $0.19633 | $4.90825 |
| 50 | $0.19518 | $9.75900 |
| 100 | $0.19404 | $19.40400 |
| 300 | $0.19290 | $57.87000 |
| 500 | $0.19177 | $95.88500 |
| 1000 | $0.19065 | $190.65000 |
| 3000 | $0.16073 | $482.19000 |
