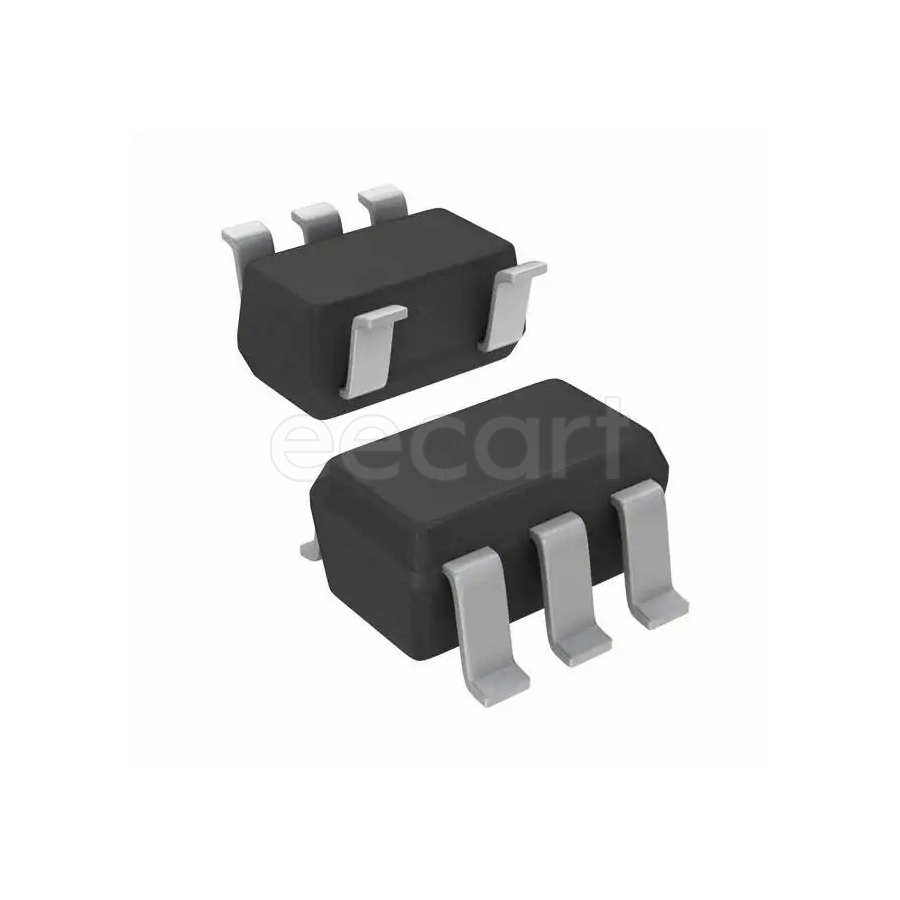

SP0504BAHTG
Manufacturer:
Littelfuse
Mfr.Part #:
SP0504BAHTG
Datasheet:
Description:
TVS Diodes SOT-23-5 SMD/SMT Working Voltage:5.5 V Breakdown Voltage:5.5 V Clamping Voltage:8.5 V Peak Pulse Power:225 mW Polarity:Unidirectional
| Parameter | Value |
|---|---|
| Capacitance | 30 pF |
| Voltage Rating (DC) | 5 V |
| Length | 3.05 mm |
| Width | 1.75 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 5 |
| Leakage Current | 100 nA |
| Composition(Kit Type) | Zener |
| Height | 1.3 mm |
| Packaging | Reel |
| Depth | 1.75 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Unidirectional |
| REACH SVHC | Unknown |
| Number of Elements | 4 |
| Working Voltage | 5.5 V |
| Operating Supply Voltage | 5.5 V |
| Max Power Dissipation | 225 mW |
| Power Dissipation | 225 mW |
| Number of Channels | 4 |
| Breakdown Voltage | 5.5 V |
| Max Reverse Leakage Current | 100 nA |
| Element Configuration | Common Anode |
| Direction(Counting Sequence) | Unidirectional |
| Reverse Standoff Voltage | 5.5 V |
| Clamping Voltage | 8.5 V |
| Peak Pulse Power | 225 mW |
| Power Line Protection | No |
| Number of Unidirectional Channels | 4 |
| Diode Type | Avalanche |
| ESD Protection | Yes |
| Schedule B | 8536300000 |
| Voltage ESD Contact | 30 kV |
| Voltage ESD Air Gap | 30 kV |
| Diode Capacitance | 30 pF |
