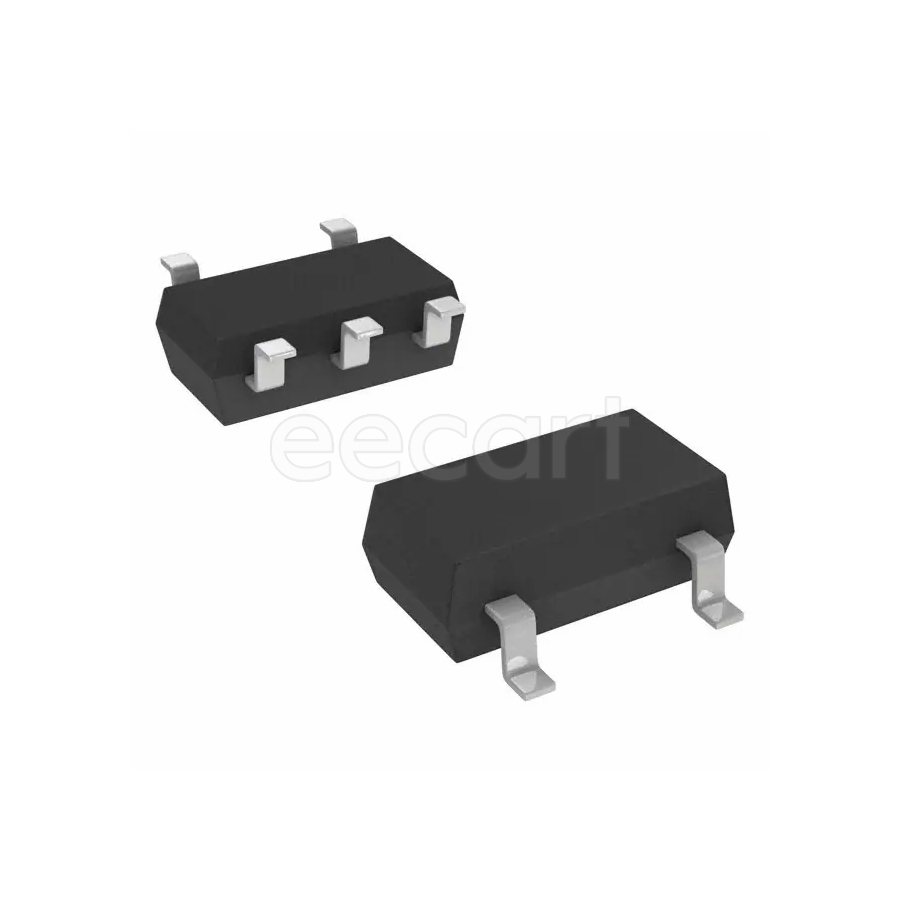

SP0504BAJTG
Manufacturer:
Littelfuse
Mfr.Part #:
SP0504BAJTG
Datasheet:
Description:
TVS Diodes SC-70-5 SMD/SMT Working Voltage:5.5 V Breakdown Voltage:5.5 V Clamping Voltage:8 V Polarity:Bidirectional, Bipolar, Unidirectional
| Parameter | Value |
|---|---|
| Capacitance | 30 pF |
| Voltage Rating (DC) | 5 V |
| Length | 2.25 mm |
| Width | 1.35 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 5 |
| Leakage Current | 100 nA |
| Composition(Kit Type) | Zener |
| Height | 1 mm |
| Packaging | Reel |
| Depth | 1.35 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Bidirectional, Bipolar, Unidirectional |
| REACH SVHC | Unknown |
| Number of Elements | 4 |
| Working Voltage | 5.5 V |
| Operating Supply Voltage | 5.5 V |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Max Power Dissipation | 200 mW |
| Power Dissipation | 200 mW |
| Number of Channels | 4 |
| Breakdown Voltage | 5.5 V |
| Direction(Counting Sequence) | Unidirectional |
| Reverse Standoff Voltage | 5.5 V |
| Clamping Voltage | 8 V |
| Power Line Protection | No |
| Number of Unidirectional Channels | 4 |
| Diode Type | Avalanche |
| Schedule B | 8536300000 |
| Diode Capacitance | 30 pF |
| Voltage ESD Air Gap | 30 kV |
| Voltage ESD Contact | 30 kV |
Stock: 6628
Distributors
pcbx
pcbxUnit Price$0.55656
Ext.Price$0.55656
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.55656 | $0.55656 |
| 10 | $0.40182 | $4.01820 |
| 25 | $0.38111 | $9.52775 |
| 50 | $0.36146 | $18.07300 |
| 100 | $0.34283 | $34.28300 |
| 300 | $0.33810 | $101.43000 |
| 500 | $0.33343 | $166.71500 |
| 1000 | $0.30436 | $304.36000 |
| 3000 | $0.26076 | $782.28000 |
| 5000 | $0.25904 | $1295.20000 |
