SP12-01WTG-C-HV
Manufacturer:
Littelfuse
Mfr.Part #:
SP12-01WTG-C-HV
Datasheet:
Description:

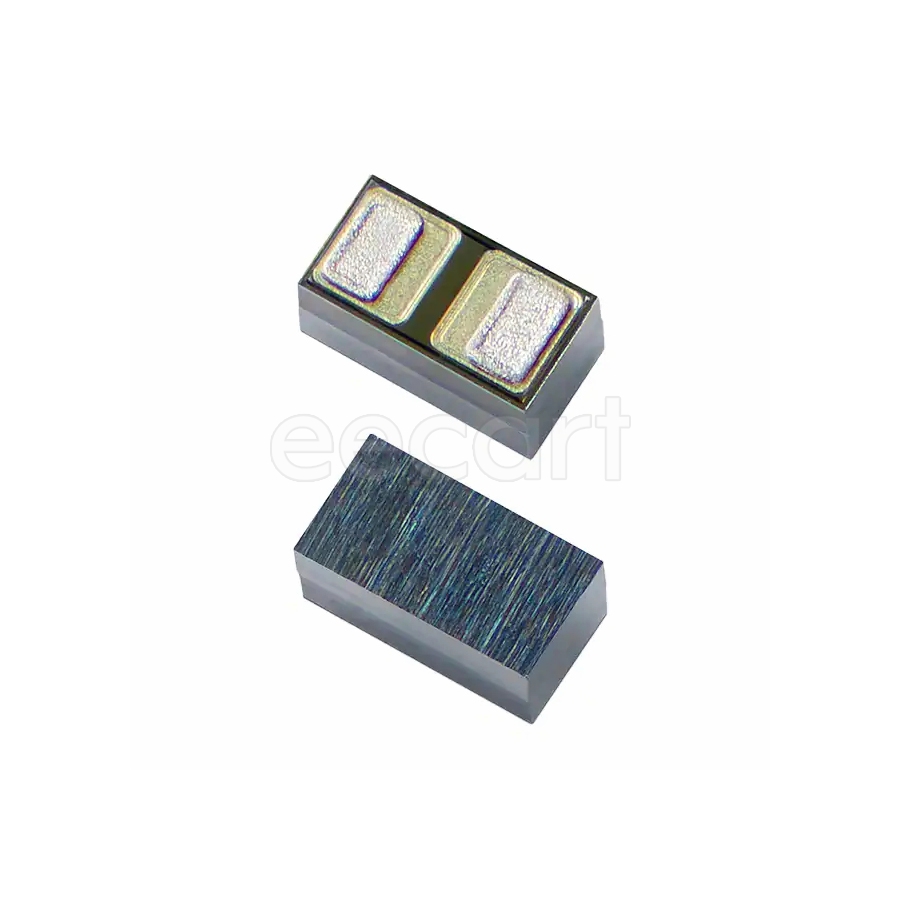

TVS Diodes XFDFN-2 SMD/SMT Working Voltage:12 V Breakdown Voltage:13.3 V Clamping Voltage:19 V Peak Pulse Power:100 W Polarity:Bidirectional
| Parameter | Value |
|---|---|
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Leakage Current | 100 nA |
| Composition(Kit Type) | Zener |
| Packaging | Reel |
| RoHS | Compliant |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Peak Pulse Current | 8 A |
| Number of Channels | 1 |
| Min Breakdown Voltage | 13.3 V |
| Reverse Standoff Voltage | 12 V |
| Clamping Voltage | 19 V |
| Power Line Protection | No |
| Number of Bidirectional Channels | 1 |
| Schedule B | 8536300000 |
| Breakdown Voltage | 13.3 V |
| Peak Pulse Power | 100 W |
| Polarity | Bidirectional |
| Working Voltage | 12 V |
| Voltage ESD Contact | 30 kV |
| Voltage ESD Air Gap | 30 kV |
| Diode Capacitance | 26 pF |
Stock: 48265
Distributors
pcbx
pcbxUnit Price$0.20690
Ext.Price$0.20690
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.20690 | $0.20690 |
| 10 | $0.12567 | $1.25670 |
| 50 | $0.07631 | $3.81550 |
| 100 | $0.04634 | $4.63400 |
| 500 | $0.04377 | $21.88500 |
| 1000 | $0.04069 | $40.69000 |
| 3000 | $0.04035 | $121.05000 |
| 5000 | $0.04001 | $200.05000 |
| 10000 | $0.03565 | $356.50000 |
