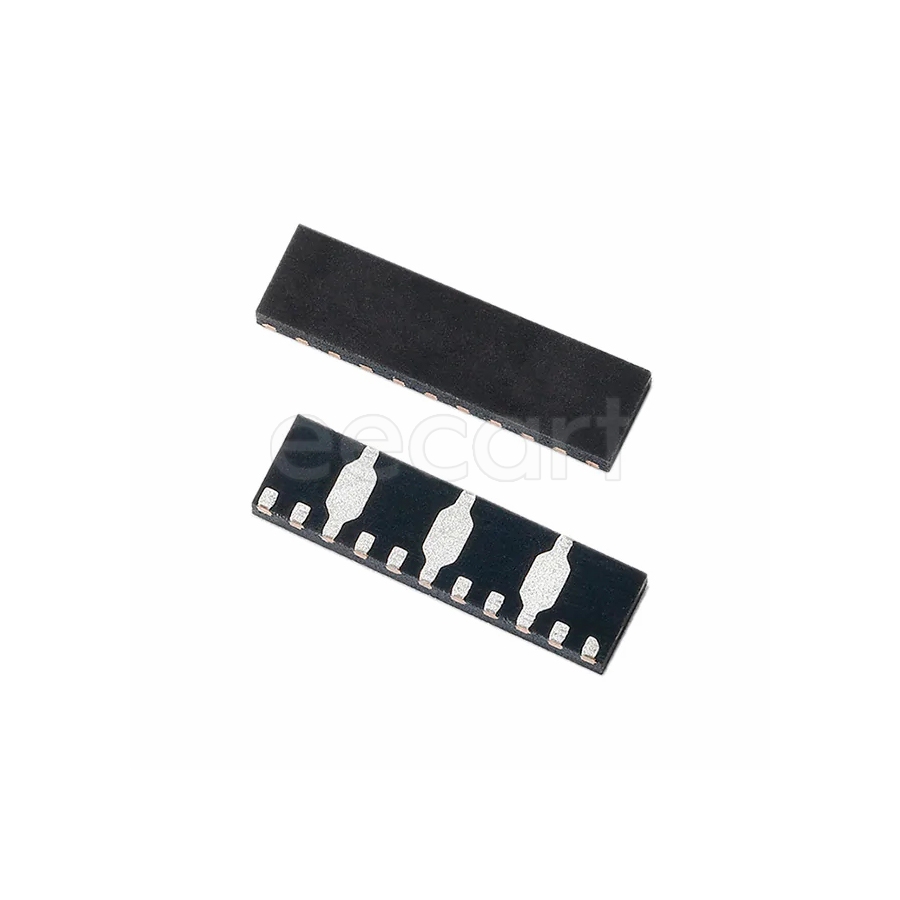

SP3012-06UTG
Manufacturer:
Littelfuse
Mfr.Part #:
SP3012-06UTG
Datasheet:
Description:
TVS Diodes uDFN-14 SMD/SMT Working Voltage:5 V Clamping Voltage:7 V Polarity:Unidirectional
| Parameter | Value |
|---|---|
| Length | 3.5 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -44 °C |
| Number of Pins | 14 |
| Leakage Current | 1.5 µA |
| Packaging | Reel |
| Depth | 1.35 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Unidirectional |
| REACH SVHC | No SVHC |
| Working Voltage | 5 V |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Peak Pulse Current | 2 A |
| Number of Channels | 6 |
| Direction(Counting Sequence) | Unidirectional |
| Reverse Standoff Voltage | 5 V |
| Clamping Voltage | 7 V |
| Power Line Protection | Yes |
| Number of Bidirectional Channels | 6 |
| Schedule B | 8536300000 |
| Voltage ESD Contact | 12 kV |
| Voltage ESD Air Gap | 25 kV |
| Diode Capacitance | 0.5 pF |
Out of Stock
Distributors
--
--Unit Price$--
Ext.Price$--
| Qty | Unit Price | Ext.Price |
|---|---|---|
No data | ||
