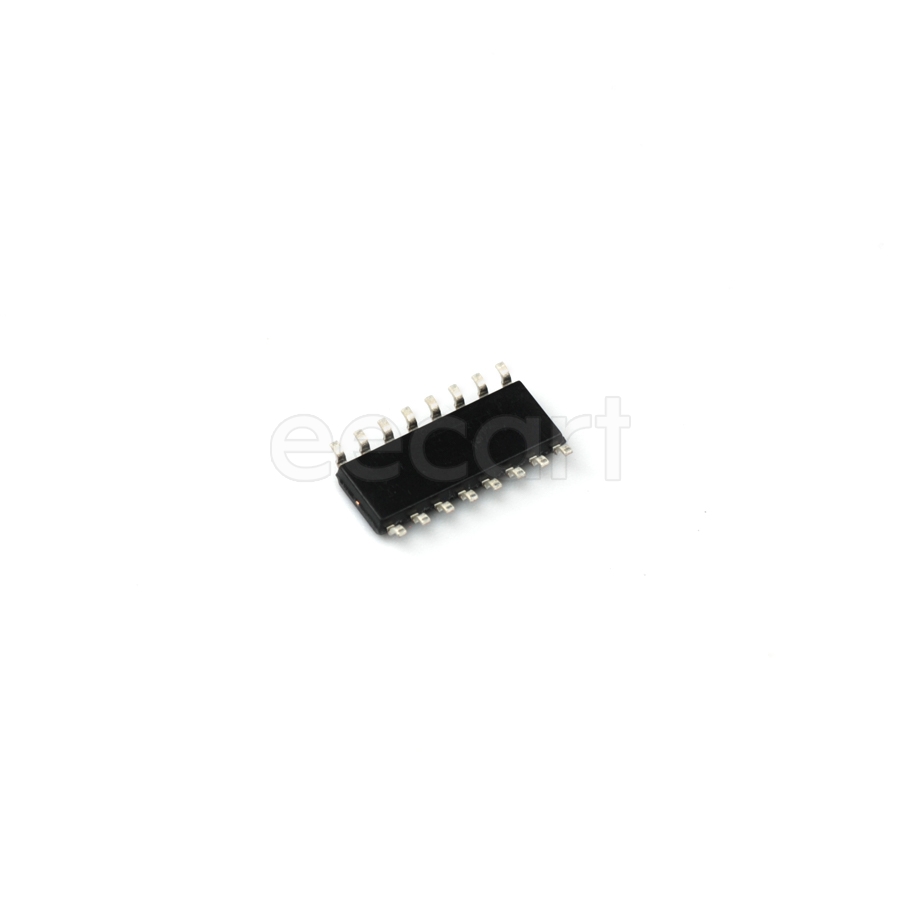

SP720ABG
Manufacturer:
Littelfuse
Mfr.Part #:
SP720ABG
Datasheet:
Description:
TVS Diodes SOIC-16 SMD/SMT Working Voltage:30 V Breakdown Voltage:30 V Polarity:Bidirectional
| Parameter | Value |
|---|---|
| Capacitance | 3 pF |
| Voltage Rating (DC) | 30 V |
| Length | 10 mm |
| Width | 3.9878 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 16 |
| Leakage Current | 20 nA |
| Height | 1.75 mm |
| Packaging | Bulk |
| Depth | 4 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Working Voltage | 30 V |
| Number of Circuits | 14 |
| Peak Pulse Current | 3 A |
| Number of Channels | 14 |
| Breakdown Voltage | 30 V |
| Element Configuration | Single |
| Direction(Counting Sequence) | Unidirectional |
| ESD Protection | Yes |
| Max Junction Temperature (Tj) | 150 °C |
| Schedule B | 8536300000 |
| Polarity | Bidirectional |
| Voltage ESD Contact | 4 kV |
| Voltage ESD Air Gap | 15 kV |
| Diode Capacitance | 3 pF |
Stock: 4593
Distributors
pcbx
pcbxUnit Price$1.67737
Ext.Price$1.67737
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.67737 | $1.67737 |
| 10 | $0.97034 | $9.70340 |
| 25 | $0.95764 | $23.94100 |
| 50 | $0.94511 | $47.25550 |
| 100 | $0.93273 | $93.27300 |
| 300 | $0.92629 | $277.88700 |
| 500 | $0.91990 | $459.95000 |
| 1000 | $0.91392 | $913.92000 |
