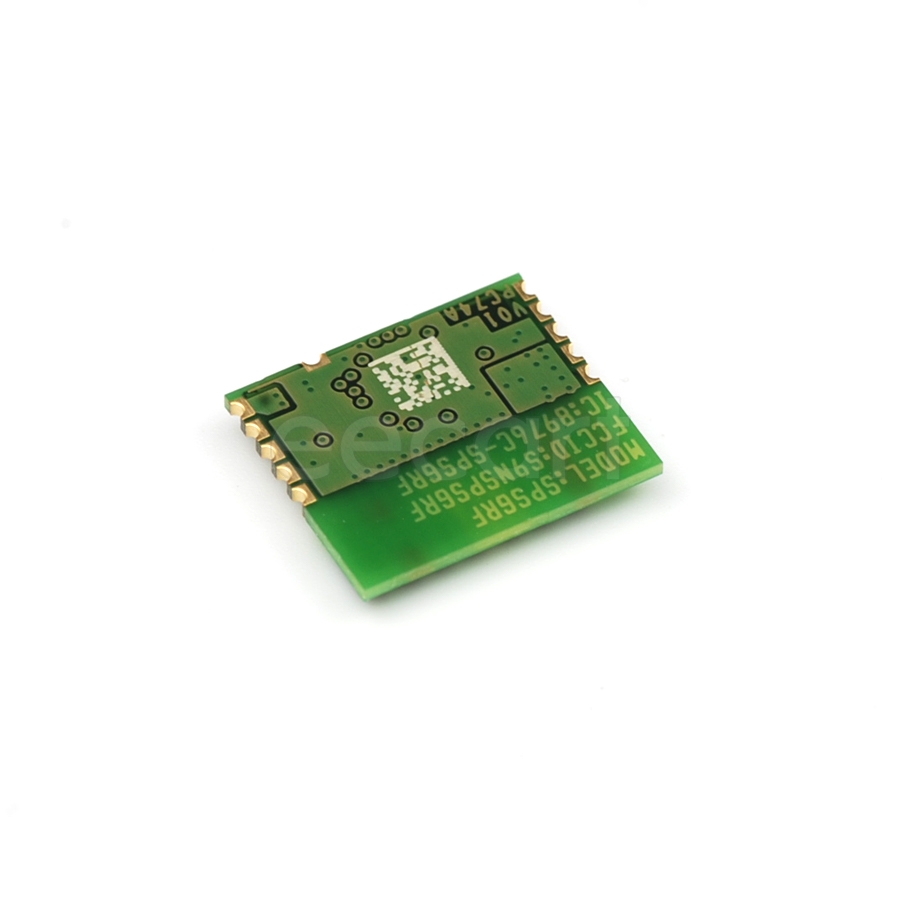

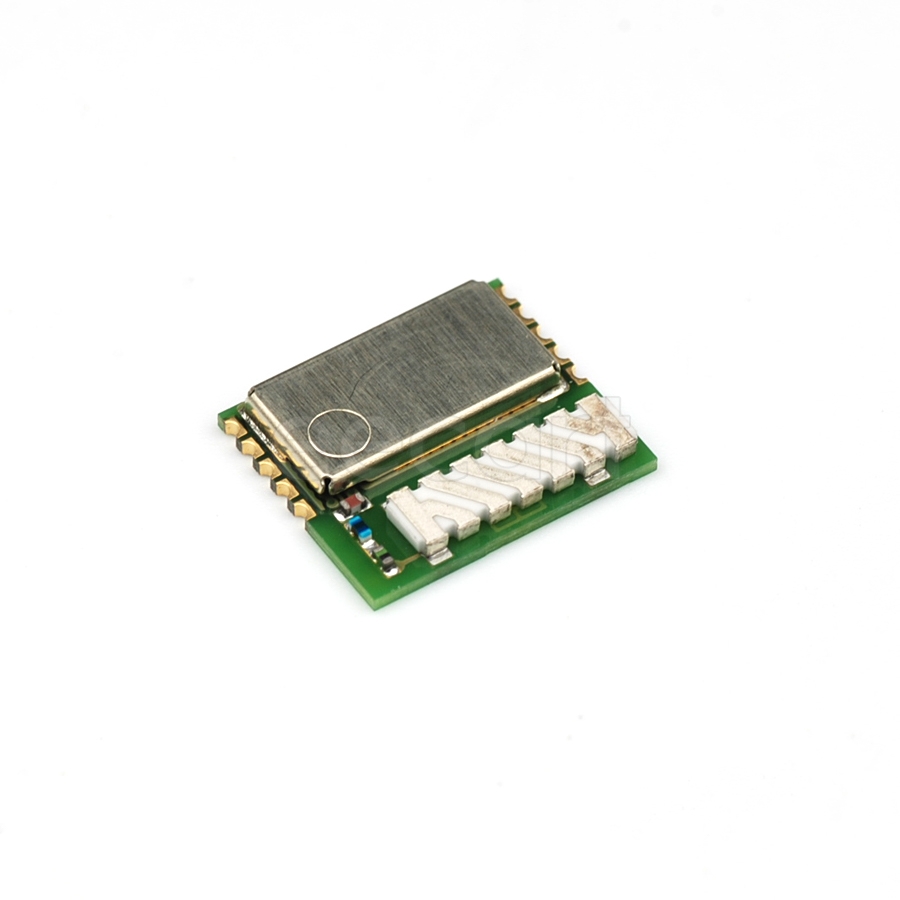

SPSGRF-868
Manufacturer:
STMicroelectronics
Mfr.Part #:
SPSGRF-868
Datasheet:
Description:
RF - Transceiver Modules and Modems 13.50mmL×11.50mmW×1.20mmH SMD/SMT General ISM < 1GHz 868 MHz
| Parameter | Value |
|---|---|
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 2.2 mm |
| Packaging | Tray |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Frequency | 868 MHz |
| Interface | SPI |
| Bandwidth | 7 MHz |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Max Supply Voltage | 3.6 V |
| Min Supply Voltage | 1.8 V |
| Data Rate | 500 kbps |
| Current - Receiving | 10 mA |
| Current - Transmitting | 22 mA |
| Max Frequency | 870 MHz |
| Output Power | 11.6 dBm |
| Supply Voltage | 1.8 V to 3.6 V |
| Number of GPIO | 4 |
| Sensitivity (dBm) | -118 dBm |
| Standard | General ISM < 1GHz |
Stock: 2
Distributors
pcbx
pcbxUnit Price$20.53670
Ext.Price$20.53670
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $20.53670 | $20.53670 |
| 10 | $20.03242 | $200.32420 |
