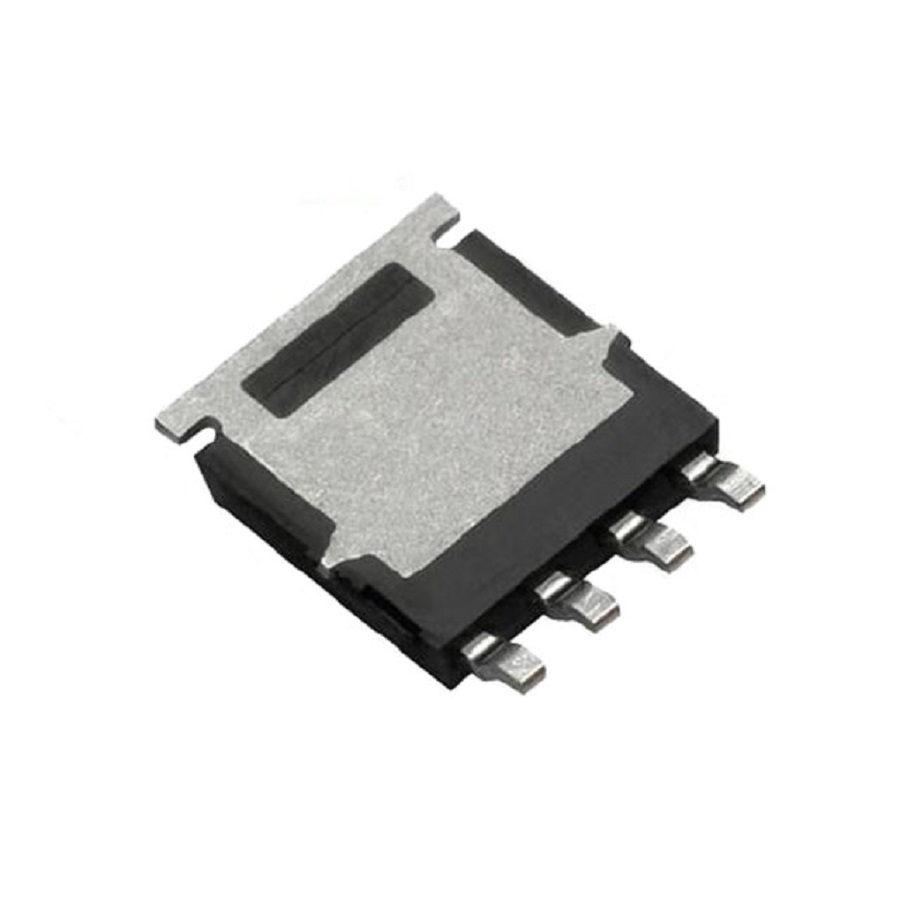

SQJ457EP-T1_GE3
Manufacturer:
Vishay
Mfr.Part #:
SQJ457EP-T1_GE3
Datasheet:
Description:
MOSFETs PowerPAK SO-8L SMD/SMT P-Channel number of channels:1 68 W -60 V Continuous Drain Current (ID):-36 A 65 nC
| Parameter | Value |
|---|---|
| Max Operating Temperature | 175 °C |
| Min Operating Temperature | -55 °C |
| Height | 1.267 mm |
| Packaging | Reel |
| RoHS | Non-Compliant |
| Power Dissipation | 68 W |
| Number of Channels | 1 |
| Input capacitance | 3.4 nF |
| Continuous Drain Current (ID) | -36 A |
| Drain to Source Voltage (Vdss) | -60 V |
| FET Type(Transistor Polarity) | P-Channel |
| Turn-On Delay Time | 15 ns |
| Turn-Off Delay Time | 40 ns |
| Gate Charge | 65 nC |
| Drain to Source Resistance | 21 mΩ |
| Max Junction Temperature (Tj) | 175 °C |
| Gate to Source Voltage (Vgs) | 20 V |
| Drain to Source Breakdown Voltage (Vds) | -60 V |
| Schedule B | 8541290080 |
| Gate to Source Threshold Voltage | 2.5 V |
Stock: 272
Distributors
pcbx
pcbxUnit Price$0.99053
Ext.Price$0.99053
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.99053 | $0.99053 |
| 10 | $0.80275 | $8.02750 |
| 25 | $0.73645 | $18.41125 |
| 50 | $0.67563 | $33.78150 |
| 100 | $0.61983 | $61.98300 |
| 300 | $0.59083 | $177.24900 |
| 500 | $0.56318 | $281.59000 |
| 1000 | $0.53408 | $534.08000 |
