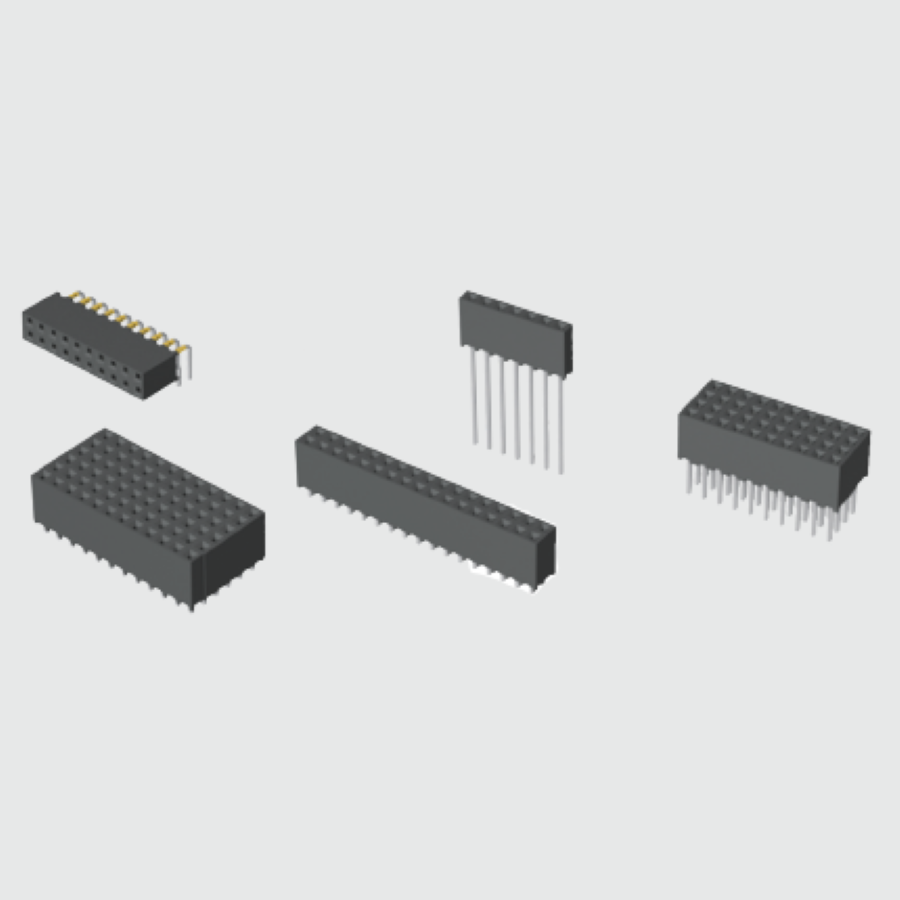

SQT-109-01-F-D
Manufacturer:
Samtec
Mfr.Part #:
SQT-109-01-F-D
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle Number of Positions:18 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 18.3 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 450 V |
| Packaging | Tube |
| Depth | 4 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Lead Length | 2.29 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2 mm |
| Max Current Rating | 5.5 A |
| Orientation | Straight |
| Gender | Female |
| Number of Contacts | 18 |
| Connector Type | Receptacle |
| Number of Positions | 18 |
| Number of Rows | 2 |
| Row Spacing | 2 mm |
| Housing Material | Polymer |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 450 V |
| Housing Color | Black |
| Schedule B | 8536694040 |
| Termination Post Length | 2.29 mm |
Stock: 48
Distributors
pcbx
pcbxUnit Price$1.75859
Ext.Price$1.75859
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.75859 | $1.75859 |
| 10 | $1.67077 | $16.70770 |
| 25 | $1.58734 | $39.68350 |
| 50 | $1.50810 | $75.40500 |
| 100 | $1.25590 | $125.59000 |
| 300 | $1.04588 | $313.76400 |
| 500 | $0.87098 | $435.49000 |
| 1000 | $0.72533 | $725.33000 |
| 3000 | $0.60403 | $1812.09000 |
| 5000 | $0.50302 | $2515.10000 |
| 10000 | $0.41891 | $4189.10000 |
