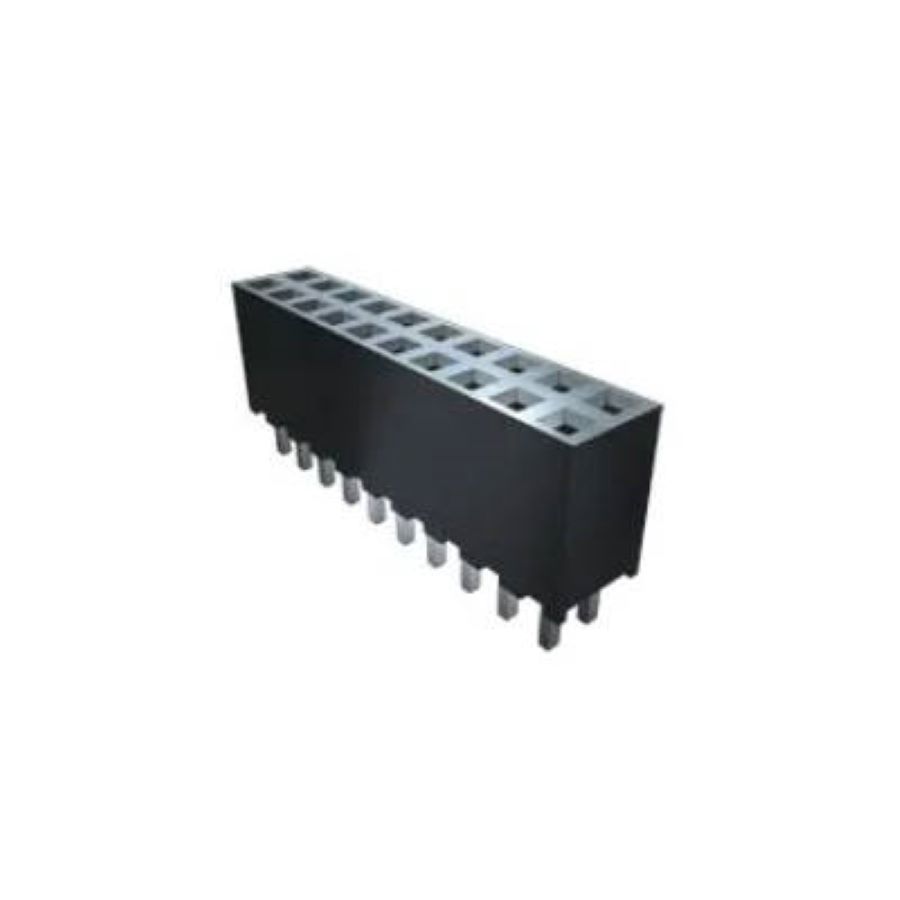

SQT-110-01-F-S
Manufacturer:
Samtec
Mfr.Part #:
SQT-110-01-F-S
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle Number of Positions:10 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 20.3 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 450 V |
| Packaging | Tube |
| Depth | 2 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Lead Length | 2.29 mm |
| Pitch | 2 mm |
| Max Current Rating | 5.5 A |
| Orientation | Straight |
| Gender | Socket (Female) |
| Number of Contacts | 10 |
| Connector Type | Receptacle |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Row Spacing | 2 mm |
| Housing Material | Polymer |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 450 V |
| Housing Color | Black |
| Termination Post Length | 2.29 mm |
Stock: 2470
Distributors
pcbx
pcbxUnit Price$1.08918
Ext.Price$1.08918
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.08918 | $1.08918 |
| 10 | $0.94471 | $9.44710 |
| 25 | $0.81940 | $20.48500 |
| 50 | $0.71071 | $35.53550 |
| 100 | $0.61644 | $61.64400 |
| 300 | $0.53467 | $160.40100 |
| 500 | $0.46375 | $231.87500 |
| 1000 | $0.40224 | $402.24000 |
| 3000 | $0.34889 | $1046.67000 |
| 5000 | $0.30261 | $1513.05000 |
| 10000 | $0.26246 | $2624.60000 |
