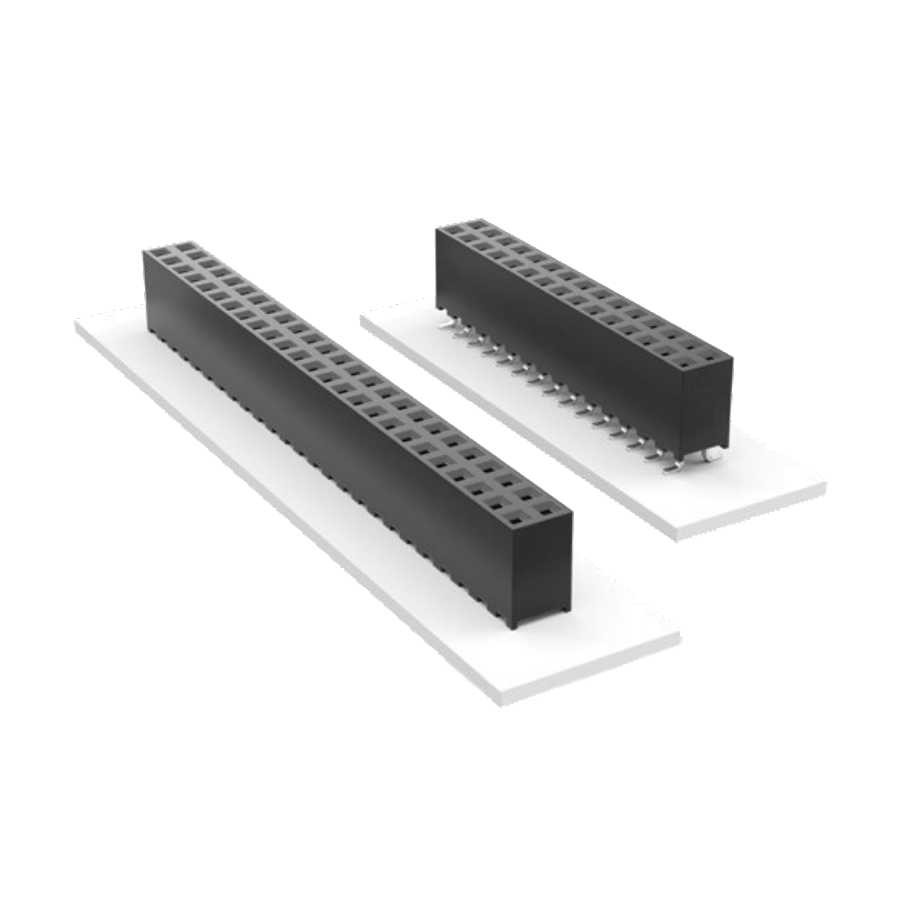

SQW-110-01-L-D
Manufacturer:
Samtec
Mfr.Part #:
SQW-110-01-L-D
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle, Socket Number of Positions:20 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 20.12 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Voltage Rating | 500 V |
| Depth | 4 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 2 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2 mm |
| Current Rating | 5 A |
| Max Current Rating | 5 A |
| Orientation | Straight |
| Color | Black |
| Gender | Receptacle |
| Number of Contacts | 20 |
| Connector Type | Receptacle, Socket |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Row Spacing | 2.0066 mm |
| Housing Material | Polymer |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 500 V |
| Housing Color | Black |
Stock: 11
Distributors
pcbx
pcbxUnit Price$1.89025
Ext.Price$1.89025
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.89025 | $1.89025 |
| 10 | $1.67752 | $16.77520 |
| 25 | $1.48873 | $37.21825 |
| 50 | $1.32119 | $66.05950 |
| 100 | $1.17250 | $117.25000 |
| 300 | $1.04055 | $312.16500 |
| 500 | $0.92345 | $461.72500 |
| 1000 | $0.81953 | $819.53000 |
| 3000 | $0.72730 | $2181.90000 |
| 5000 | $0.64545 | $3227.25000 |
| 10000 | $0.57280 | $5728.00000 |
