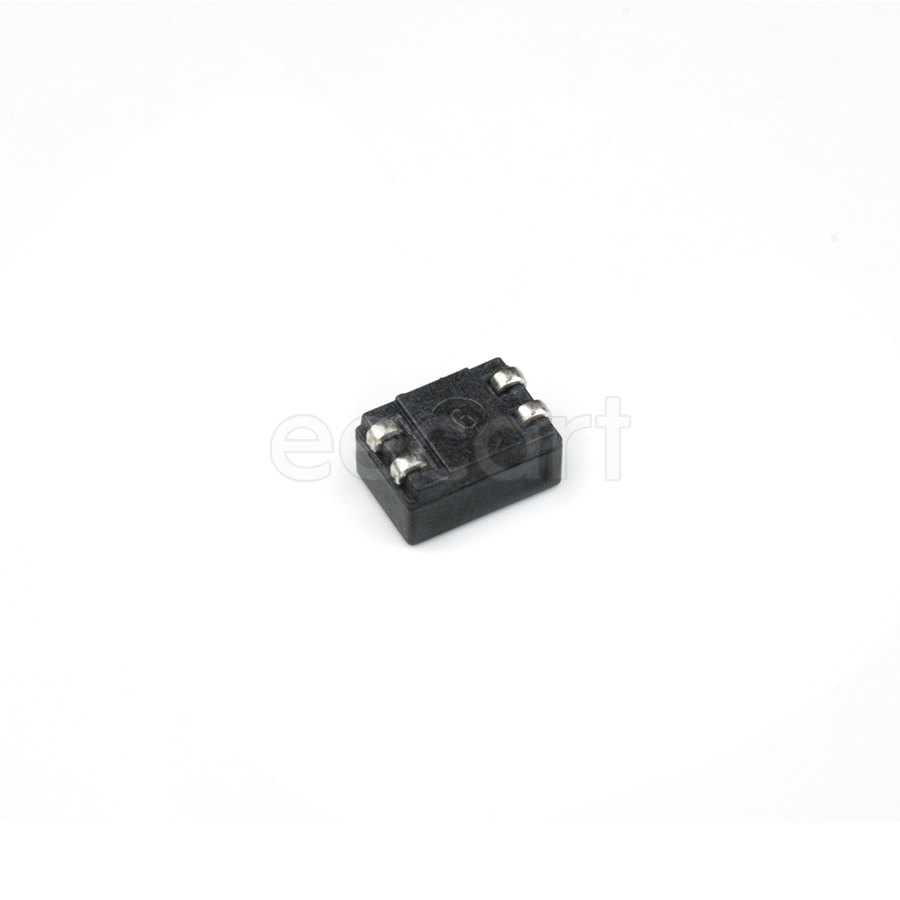

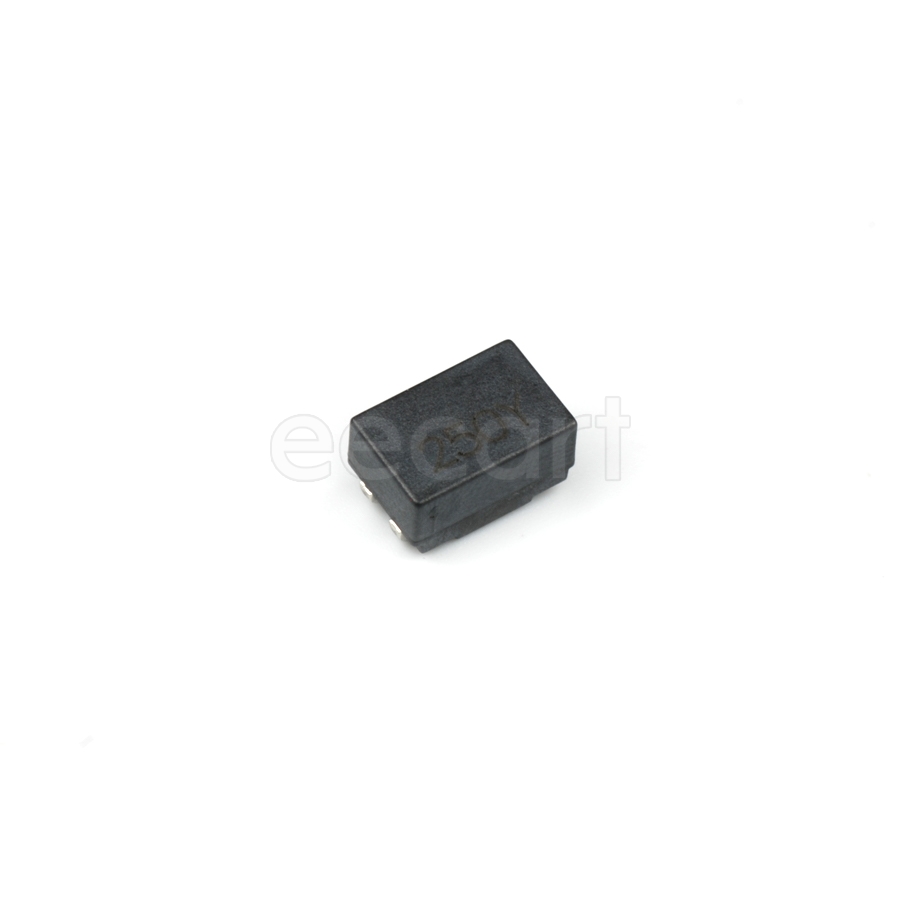

SRF0504-102Y
Manufacturer:
Bourns
Mfr.Part #:
SRF0504-102Y
Datasheet:
Description:
Common Mode Chokes SMD/SMT Max Current Rating:1.5 A Number of Lines:2 1 kΩ Frequency:1.2 GHz 60 mΩ 2.7 µH
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 50 V |
| Tolerance | 30 % |
| Length | 5 mm |
| Width | 5.2 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 4 |
| Height | 4.7 mm |
| Depth | 5.2 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Impedance | 1 kΩ |
| Frequency | 1.2 GHz |
| Self Resonant Frequency | 1.2 GHz |
| Current | 1.5 A |
| Current Rating | 1.5 A |
| DC Resistance (DCR) | 60 mΩ |
| Test Frequency | 100 kHz |
| Shielding | Shielded |
| Number of Lines | 2 |
| Inductance | 2.7 µH |
| Core Material | Ferrite |
| Element Configuration | Dual |
| Max DC Current | 1.5 A |
| DC Current | 1.5 A |
| Schedule B | 8504500000 |
| Packaging | Reel |
| Max Current Rating | 1.5 A |
| Type | Line Filters |
Stock: 49
Distributors
pcbx
pcbxUnit Price$1.04006
Ext.Price$1.04006
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.04006 | $1.04006 |
| 10 | $0.86746 | $8.67460 |
| 25 | $0.79620 | $19.90500 |
| 50 | $0.73079 | $36.53950 |
| 100 | $0.67076 | $67.07600 |
| 300 | $0.63082 | $189.24600 |
| 500 | $0.59325 | $296.62500 |
| 1000 | $0.57094 | $570.94000 |
