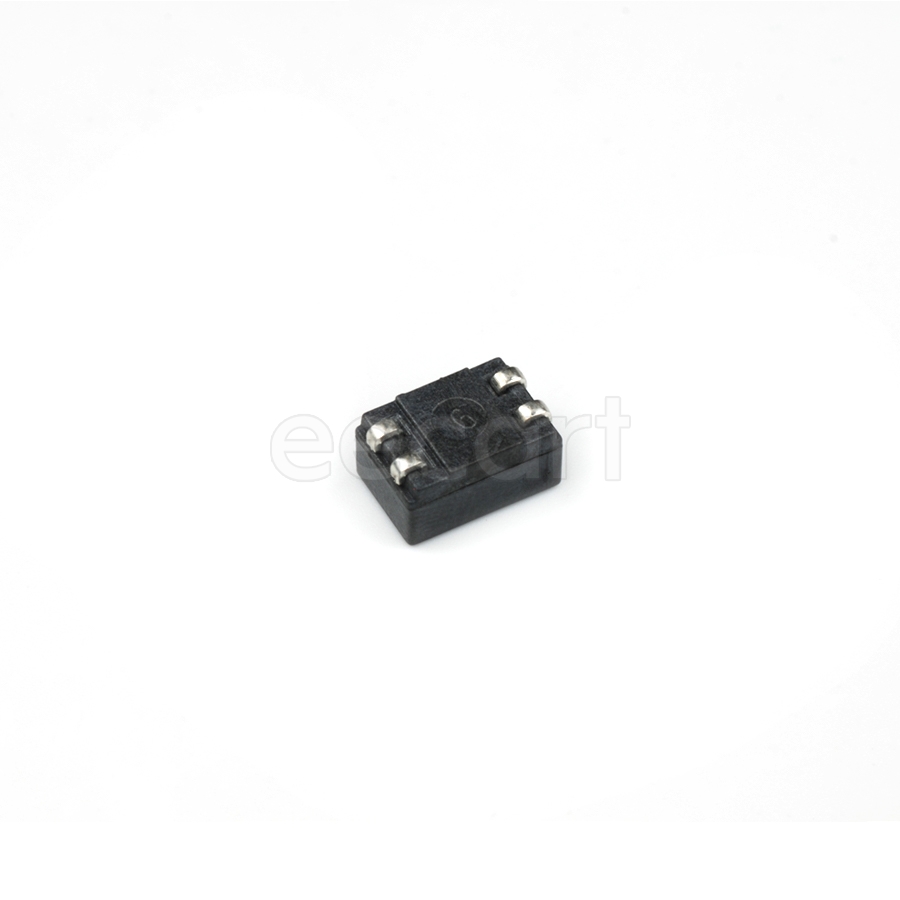

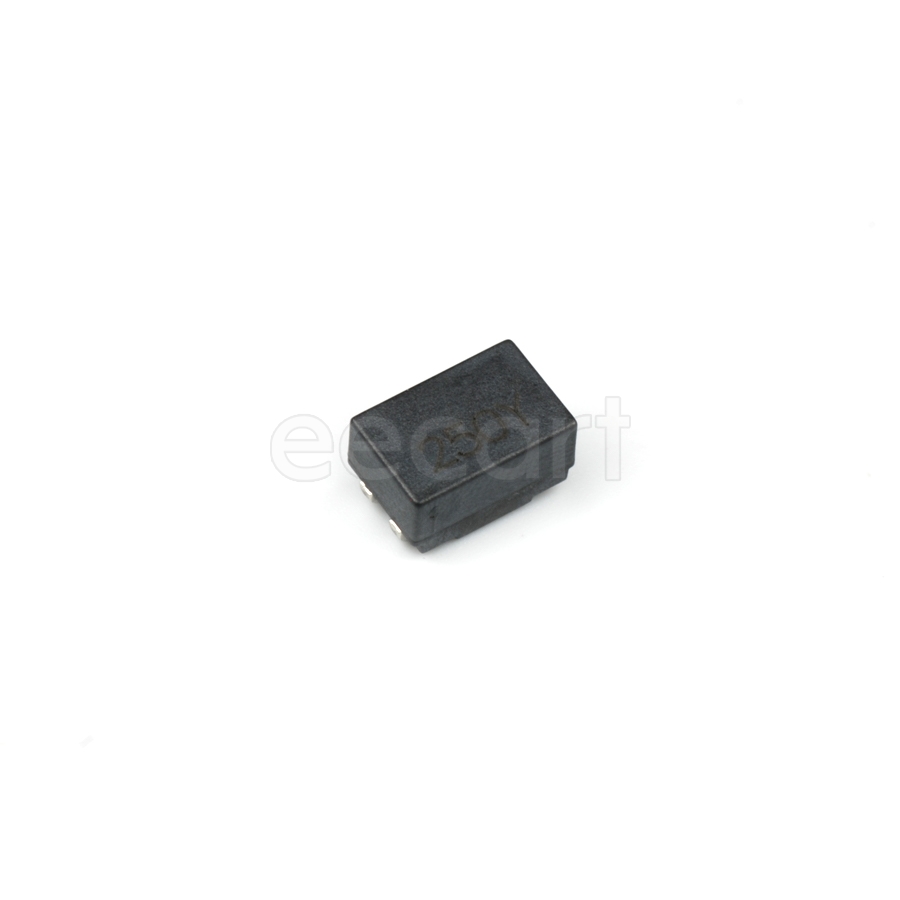

SRF0504-302Y
Manufacturer:
Bourns
Mfr.Part #:
SRF0504-302Y
Datasheet:
Description:
Common Mode Chokes SMD/SMT Max Current Rating:500 mA Number of Lines:2 3 kΩ Frequency:1.2 GHz 200 mΩ 6 µH
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 50 V |
| Tolerance | 30 % |
| Length | 5 mm |
| Width | 5.2 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 4 |
| Height | 4.7 mm |
| Depth | 5.2 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Impedance | 3 kΩ |
| Frequency | 1.2 GHz |
| Self Resonant Frequency | 1.2 GHz |
| Current | 500 mA |
| Current Rating | 500 mA |
| DC Resistance (DCR) | 200 mΩ |
| Test Frequency | 100 kHz |
| Shielding | Shielded |
| Number of Lines | 2 |
| Inductance | 6 µH |
| Core Material | Ferrite |
| Element Configuration | Dual |
| Max DC Current | 500 mA |
| DC Current | 500 mA |
| Schedule B | 8504500000 |
| Type | Line Filters |
| Max Current Rating | 500 mA |
| Packaging | Reel |
Stock: 51
Distributors
pcbx
pcbxUnit Price$0.79833
Ext.Price$0.79833
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.79833 | $0.79833 |
| 10 | $0.78000 | $7.80000 |
| 25 | $0.76953 | $19.23825 |
