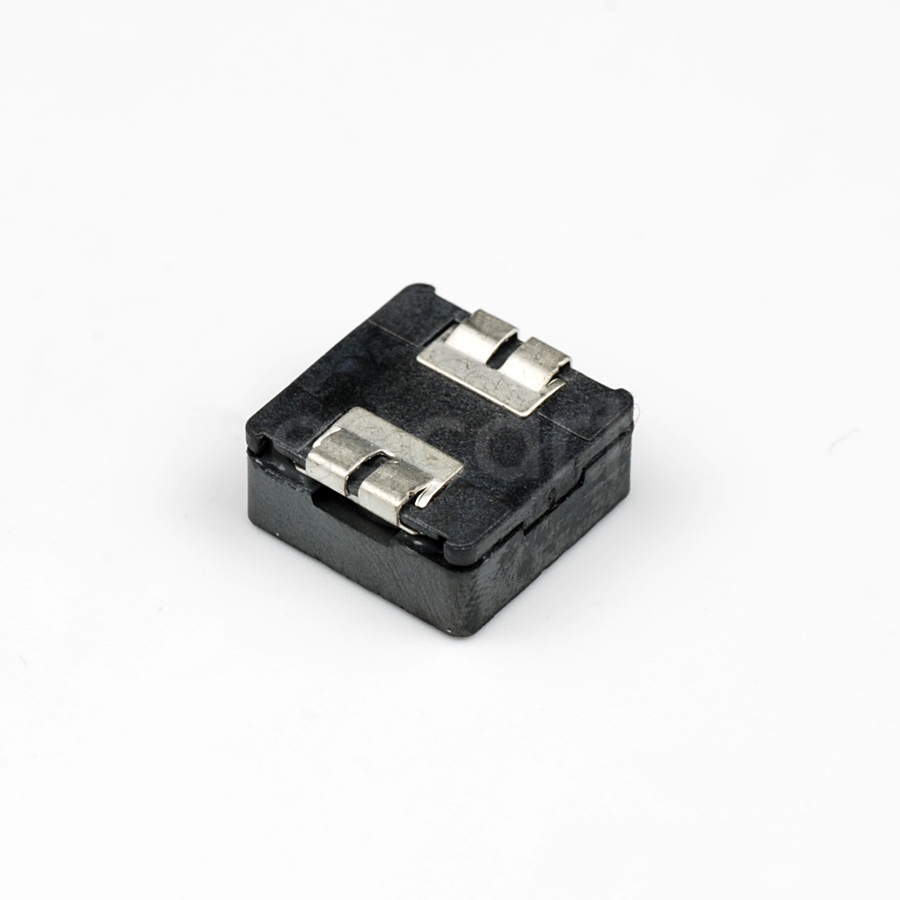

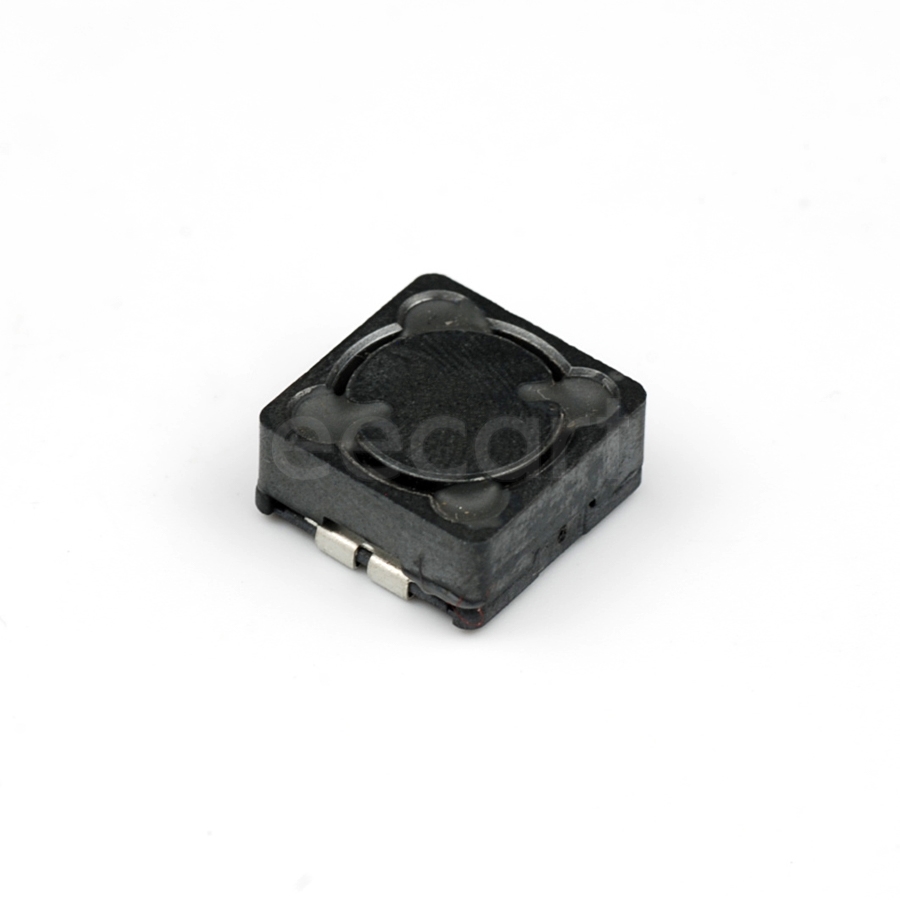

SRF0703-102M
Manufacturer:
Bourns
Mfr.Part #:
SRF0703-102M
Datasheet:
Description:
Fixed Inductors 7.60mmL×7.60mmW×3.60mmH SMD/SMT 14 mH 20 % 128 mA 6.11 Ω
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 3.6 mm |
| Length | 7.6 mm |
| Width | 7.5946 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 4 |
| Resistance | 6.11 Ω |
| Height | 3.4 mm |
| Packaging | Reel |
| Depth | 7.6 mm |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 100 kHz |
| Type | Dual-Winding Shielded Power Inductors |
| DC Resistance (DCR) | 6.11 Ω |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 14 mH |
| Core Material | Ferrite |
| RMS Current (Irms) | 260 mA |
| Max DC Current | 260 mA |
| Saturation Current | 130 mA to 250 mA |
| Schedule B | 8504500000 |
| DC Resistance (DCR) - Series | 24420 mΩ |
| Inductance - Series | 4 mH |
| Number of Coils | 2 |
| Inductance - Parallel | 1 mH |
| Current Rating | 128 mA |
Stock: 37469
Distributors
pcbx
pcbxUnit Price$0.51296
Ext.Price$0.51296
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.51296 | $0.51296 |
| 10 | $0.42051 | $4.20510 |
| 25 | $0.39402 | $9.85050 |
| 50 | $0.36920 | $18.46000 |
| 100 | $0.34594 | $34.59400 |
| 300 | $0.30395 | $91.18500 |
| 500 | $0.26706 | $133.53000 |
| 1000 | $0.23464 | $234.64000 |
