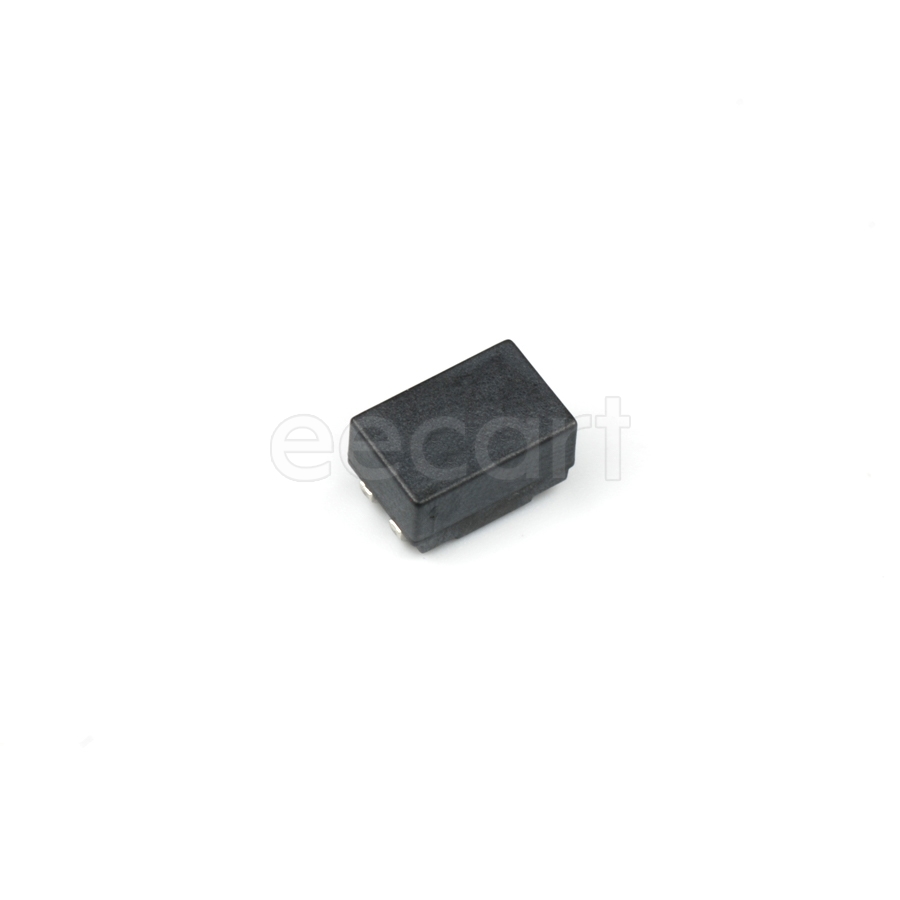

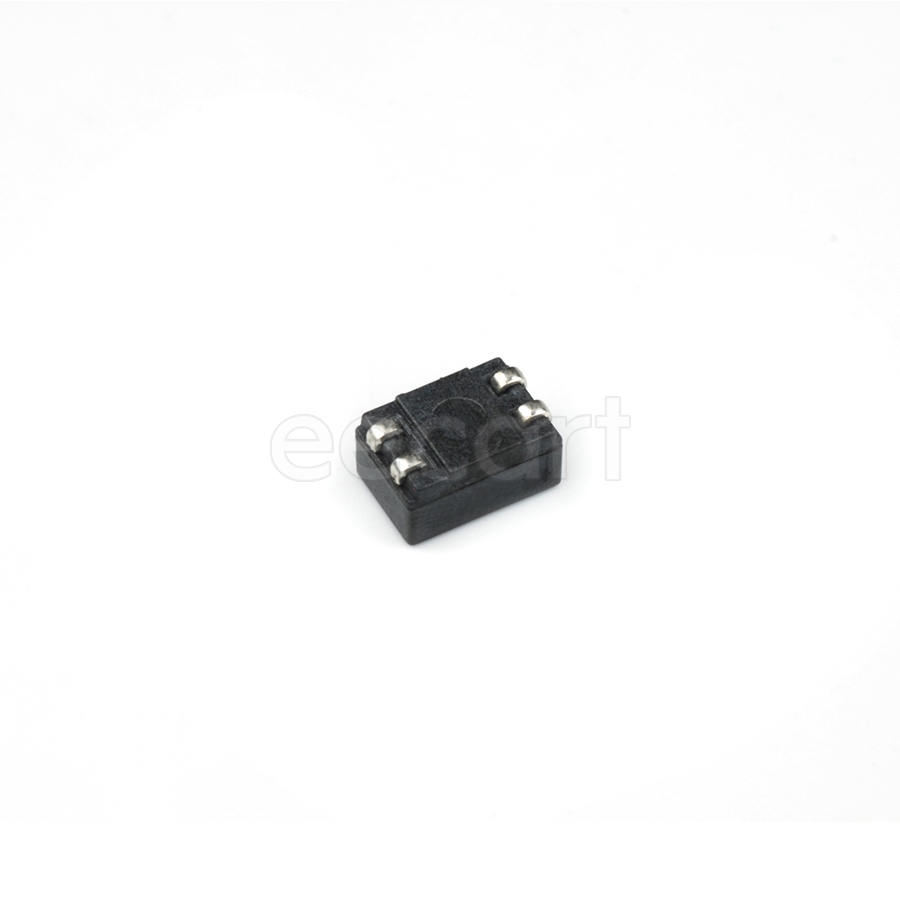

SRF0905-250Y
Manufacturer:
Bourns
Mfr.Part #:
SRF0905-250Y
Datasheet:
Description:
Common Mode Chokes SMD/SMT Max Current Rating:1 A Number of Lines:2 600 Ω Frequency:150 MHz 150 mΩ 25 µH
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 50 V |
| Tolerance | 30 % |
| Length | 9.2 mm |
| Width | 6 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 80 V |
| Number of Pins | 4 |
| Height | 5 mm |
| Material | Polymer |
| Packaging | Reel |
| Depth | 6.3 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Impedance | 600 Ω |
| Frequency | 150 MHz |
| Self Resonant Frequency | 20 MHz |
| Type | Line Filters |
| Current | 1 A |
| Current Rating | 1 A |
| DC Resistance (DCR) | 150 mΩ |
| Max Current Rating | 1 A |
| Test Frequency | 1 kHz |
| Shielding | Shielded |
| Number of Lines | 2 |
| Inductance | 25 µH |
| Core Material | Ferrite |
| Element Configuration | Dual |
| Max DC Current | 1 A |
| DC Current | 1 A |
| Schedule B | 8504500000 |
Stock: 133
Distributors
pcbx
pcbxUnit Price$1.45766
Ext.Price$1.45766
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.45766 | $1.45766 |
| 10 | $1.19606 | $11.96060 |
| 25 | $1.08783 | $27.19575 |
| 50 | $0.98940 | $49.47000 |
| 100 | $0.89987 | $89.98700 |
| 300 | $0.86242 | $258.72600 |
| 500 | $0.82654 | $413.27000 |
| 1000 | $0.79298 | $792.98000 |
