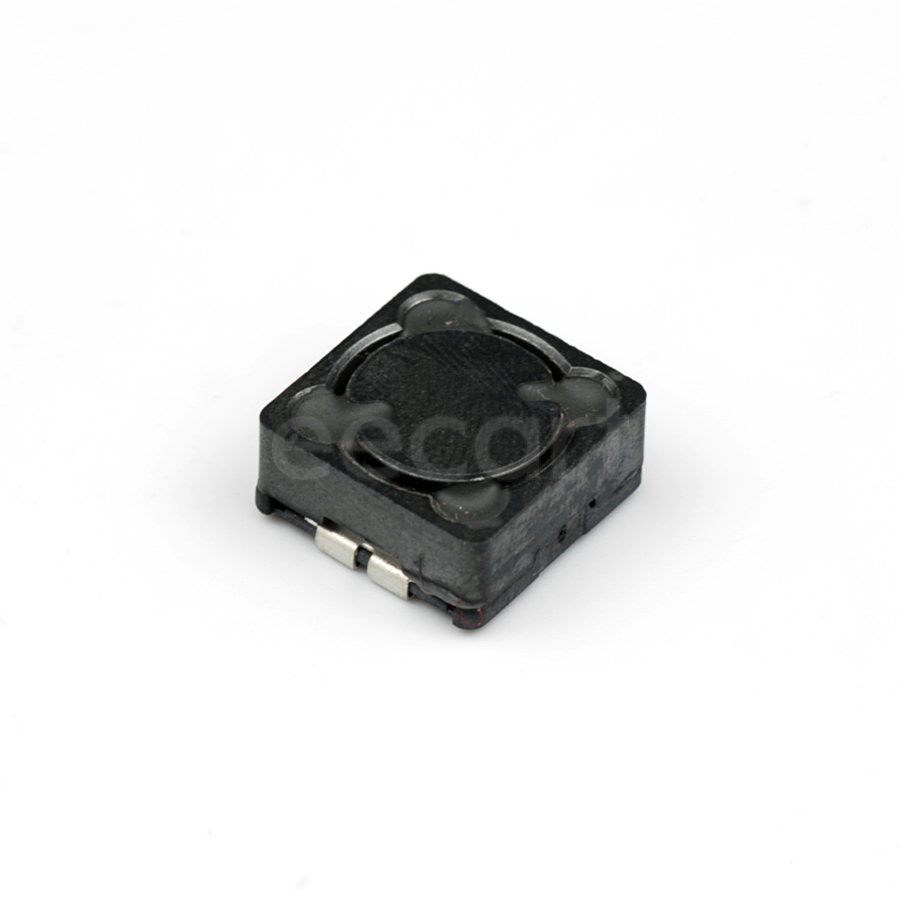

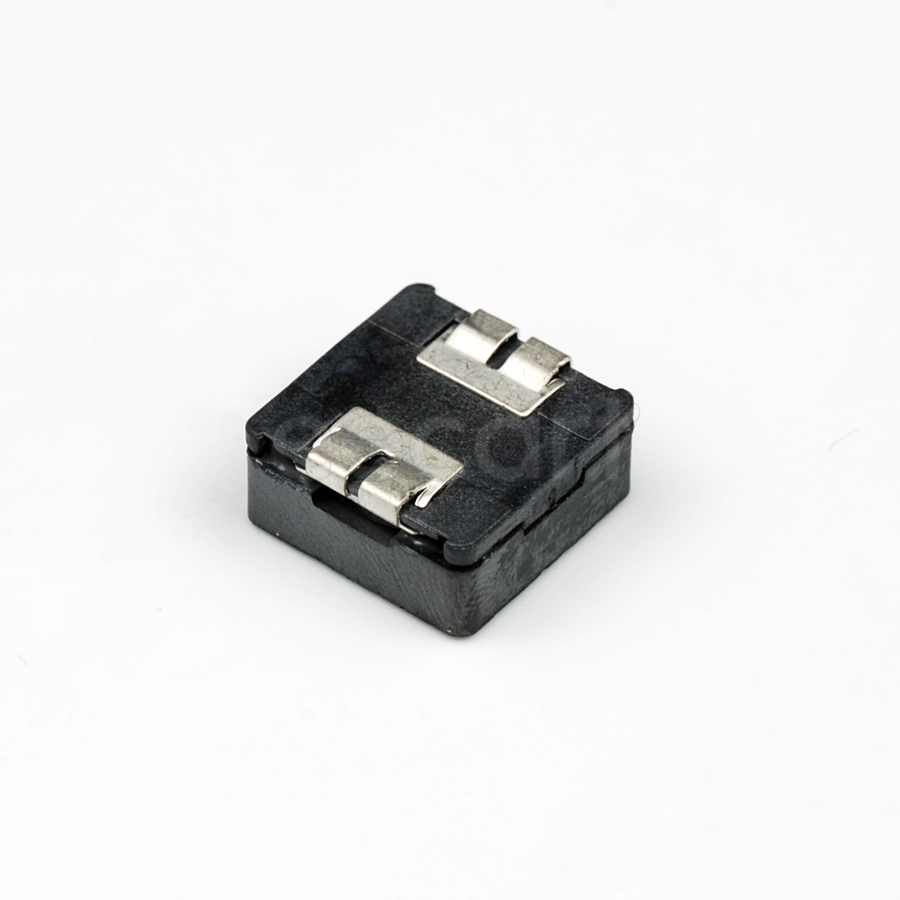

SRF1260A-470M
Manufacturer:
Bourns
Mfr.Part #:
SRF1260A-470M
Datasheet:
Description:
Fixed Inductors 12.50mmL×12.50mmW×6.20mmH SMD/SMT 47 µH 20 % 2.71 A 86 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 6.2 mm |
| Length | 12.5 mm |
| Width | 12.4968 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Resistance | 86 mΩ |
| Composition(Kit Type) | Wirewound |
| Height | 6 mm |
| Packaging | Reel |
| Depth | 12.5 mm |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Current Rating | 2.71 A |
| DC Resistance (DCR) | 86 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 47 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 2.71 A |
| Max DC Current | 1.62 A |
| Saturation Current | 3.24 A |
| DC Resistance (DCR) - Series | 340 mΩ |
| Inductance - Series | 188 µH |
| Number of Coils | 2 |
| Inductance - Parallel | 47 µH |
| Ratings | AEC-Q200 |
| Type | AEC-Q200 Dual-Winding Shielded Power Inductors |
Stock: 523
Distributors
pcbx
pcbxUnit Price$0.83270
Ext.Price$0.83270
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.83270 | $0.83270 |
| 10 | $0.68822 | $6.88220 |
| 25 | $0.59845 | $14.96125 |
| 50 | $0.58110 | $29.05500 |
| 100 | $0.56426 | $56.42600 |
| 300 | $0.53161 | $159.48300 |
| 500 | $0.50085 | $250.42500 |
| 1000 | $0.47187 | $471.87000 |
| 3000 | $0.44456 | $1333.68000 |
