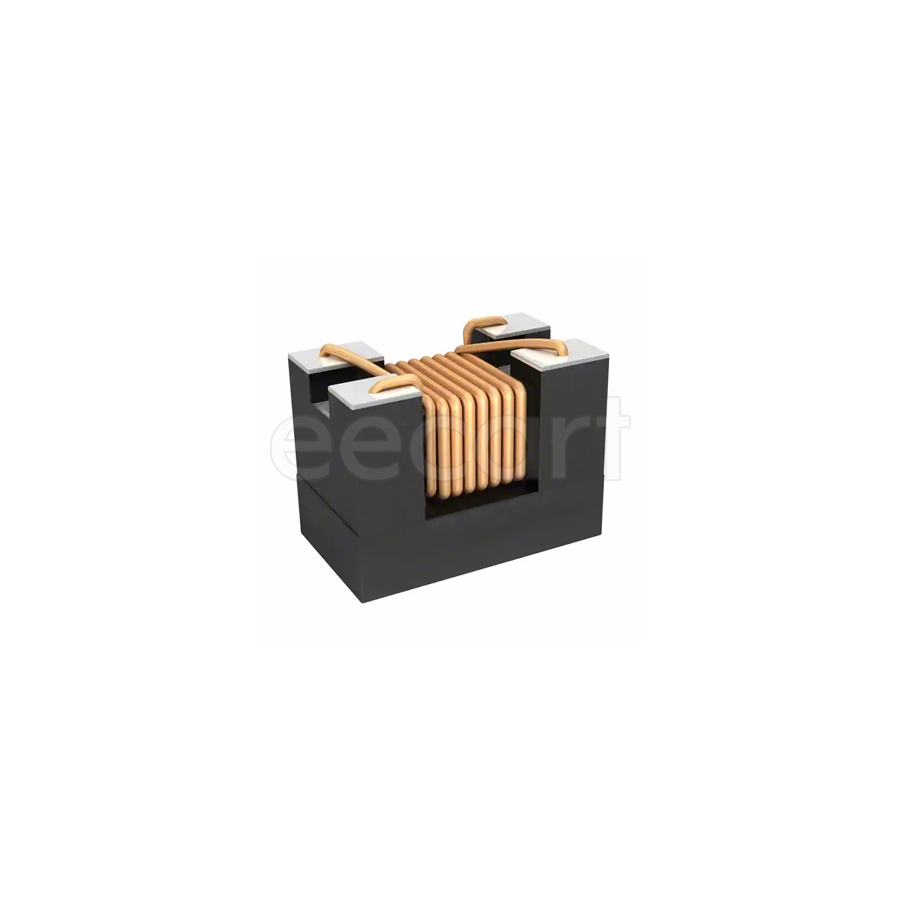

SRF4532-101Y
Manufacturer:
Bourns
Mfr.Part #:
SRF4532-101Y
Datasheet:
Description:
Fixed Inductors 4.50mmL×3.20mmW×3.00mmH SMD/SMT 100 µH 50 % 200 mA 8.9 Ω
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 50 V |
| Tolerance | 50 % |
| Length | 4.5 mm |
| Width | 3.2004 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 50 V |
| Resistance | 5 kΩ |
| Height | 2.9972 mm |
| Material | Steel |
| Packaging | Reel |
| Depth | 3.4 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Insulation Resistance | 10 MΩ |
| REACH SVHC | No SVHC |
| Impedance | 5 kΩ |
| Self Resonant Frequency | 100 kHz |
| Current | 200 mA |
| Current Rating | 200 mA |
| DC Resistance (DCR) | 8.9 Ω |
| Test Frequency | 100 kHz |
| Number of Lines | 2 |
| Inductance | 100 µH |
| Core Material | Ferrite |
| Max DC Current | 200 mA |
| DC Current | 200 mA |
| Height - Seated (Max) | 3 mm |
| Type | Common Mode Chip Inductors |
Stock: 468
Distributors
pcbx
pcbxUnit Price$0.58138
Ext.Price$0.58138
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.58138 | $0.58138 |
| 10 | $0.47232 | $4.72320 |
| 25 | $0.43421 | $10.85525 |
| 50 | $0.39917 | $19.95850 |
| 100 | $0.36695 | $36.69500 |
| 300 | $0.34195 | $102.58500 |
| 500 | $0.31865 | $159.32500 |
| 1000 | $0.30206 | $302.06000 |
