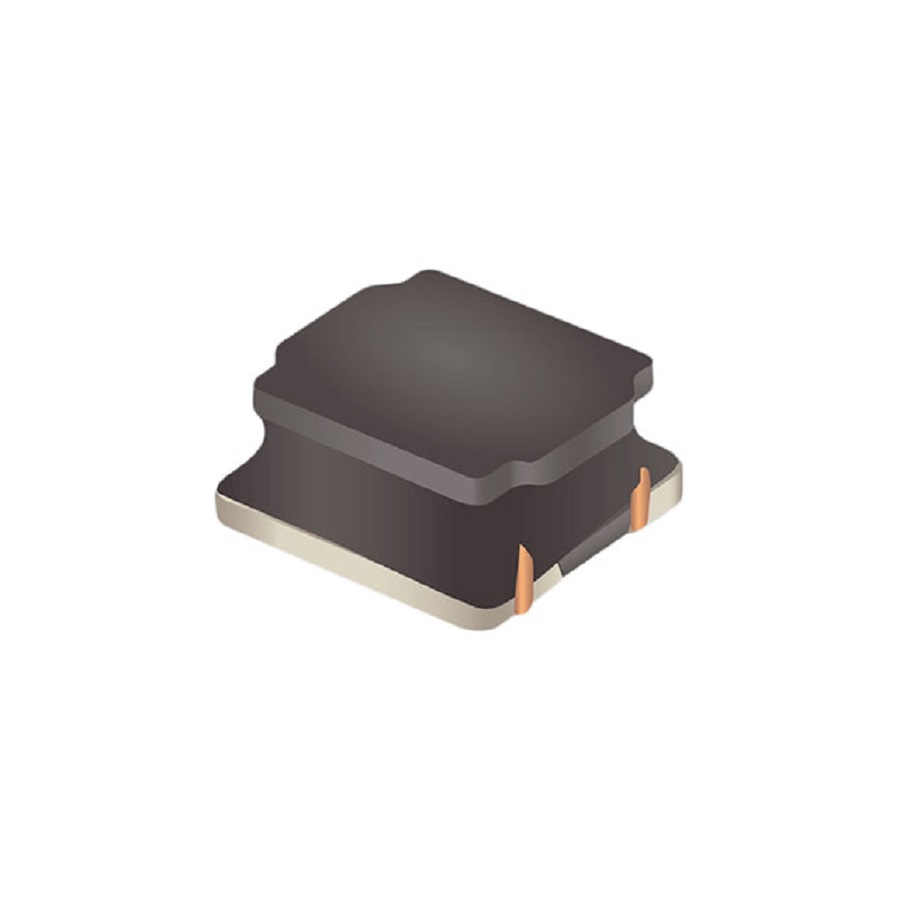

SRN3015TA-4R7M
Manufacturer:
Bourns
Mfr.Part #:
SRN3015TA-4R7M
Datasheet:
Description:
Fixed Inductors 1212(3030 Metric) SMD/SMT 4.7 µH 20 % 1.2 A 120 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 1.5 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Reel |
| RoHS | Non-Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 40 MHz |
| Type | Wirewound |
| Q Factor | 12 |
| DC Resistance (DCR) | 120 mΩ |
| Shielding | Semi-Shielded |
| Inductance | 4.7 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 1.2 A |
| inductance tolerance | 20 % |
| Saturation Current | 1 A |
| Schedule B | 8504500000 |
| Current Rating | 1.2 A |
Stock: 3723
Distributors
pcbx
pcbxUnit Price$0.28811
Ext.Price$0.28811
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.28811 | $0.28811 |
| 10 | $0.23510 | $2.35100 |
| 50 | $0.20594 | $10.29700 |
| 100 | $0.18039 | $18.03900 |
| 500 | $0.15159 | $75.79500 |
| 1000 | $0.12739 | $127.39000 |
| 3000 | $0.12296 | $368.88000 |
| 5000 | $0.11868 | $593.40000 |
| 10000 | $0.11456 | $1145.60000 |
