SRN8040-1R0Y
Manufacturer:
Bourns
Mfr.Part #:
SRN8040-1R0Y
Datasheet:
Description:

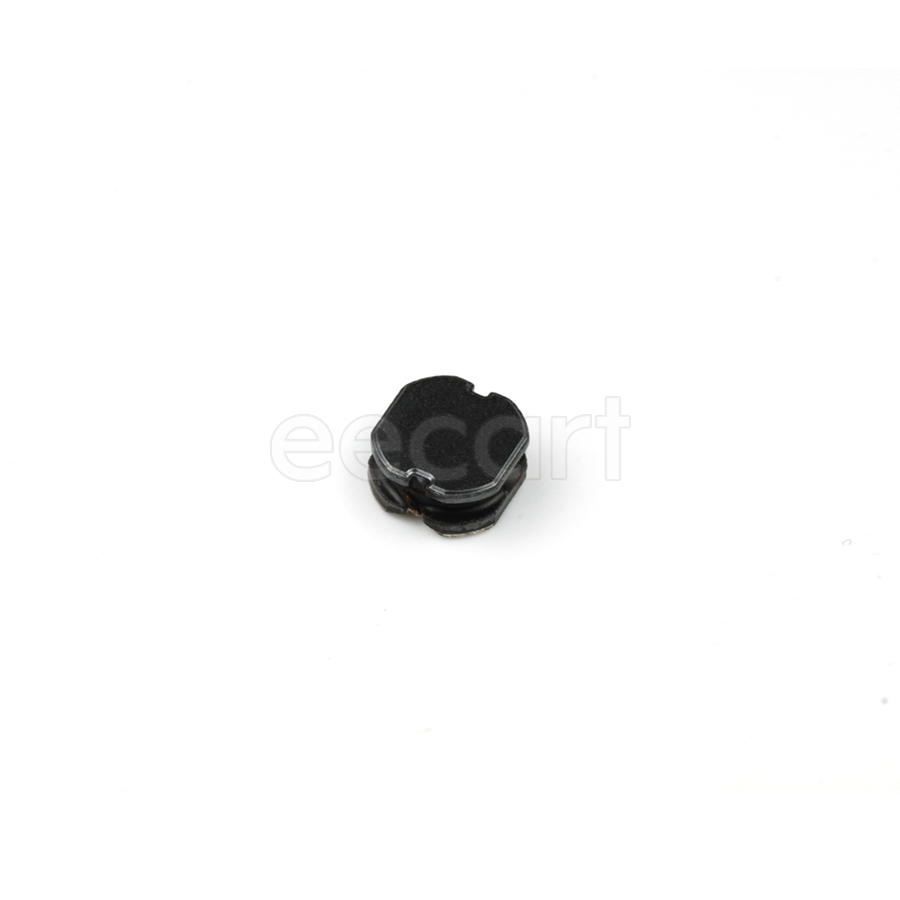

Fixed Inductors 8.00mmL×8.00mmW×4.00mmH SMD/SMT 1 µH 30 % 7.8 A 10 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 30 % |
| Height - Seated (Max) | 4 mm |
| Length | 8 mm |
| Width | 8 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Composition(Kit Type) | Wirewound |
| Height | 4 mm |
| Packaging | Reel |
| Depth | 8.3 mm |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 75 MHz |
| Type | Wirewound |
| Q Factor | 13 |
| Current Rating | 7.8 A |
| DC Resistance (DCR) | 10 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Semi-Shielded |
| Inductance | 1 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 7.8 A |
| inductance tolerance | 30 % |
| Max DC Current | 7.8 A |
| Series Resistance | 10 mΩ |
| DC Current | 7.8 A |
| Saturation Current | 11 A |
| Schedule B | 8504500000 |
| RoHS | Compliant |
Stock: 408
Distributors
pcbx
pcbxUnit Price$0.74016
Ext.Price$0.74016
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.74016 | $0.74016 |
| 10 | $0.58243 | $5.82430 |
| 25 | $0.52664 | $13.16600 |
| 50 | $0.47620 | $23.81000 |
| 100 | $0.43058 | $43.05800 |
| 300 | $0.40607 | $121.82100 |
| 500 | $0.38296 | $191.48000 |
| 1000 | $0.35754 | $357.54000 |
