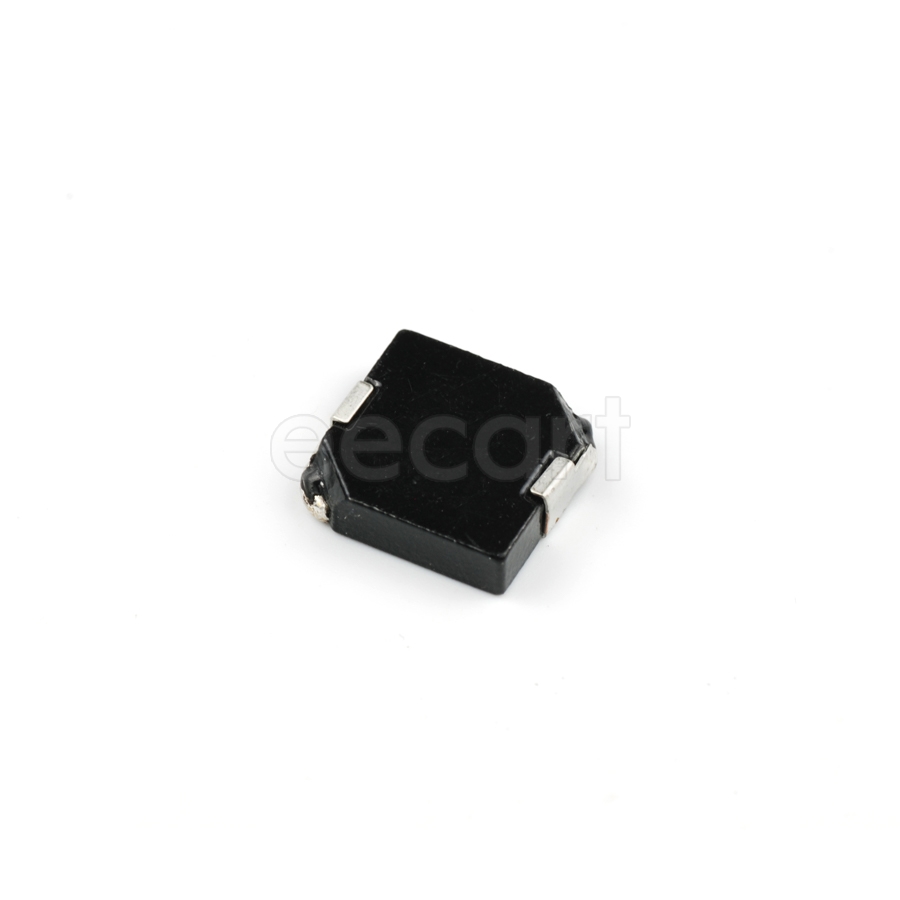

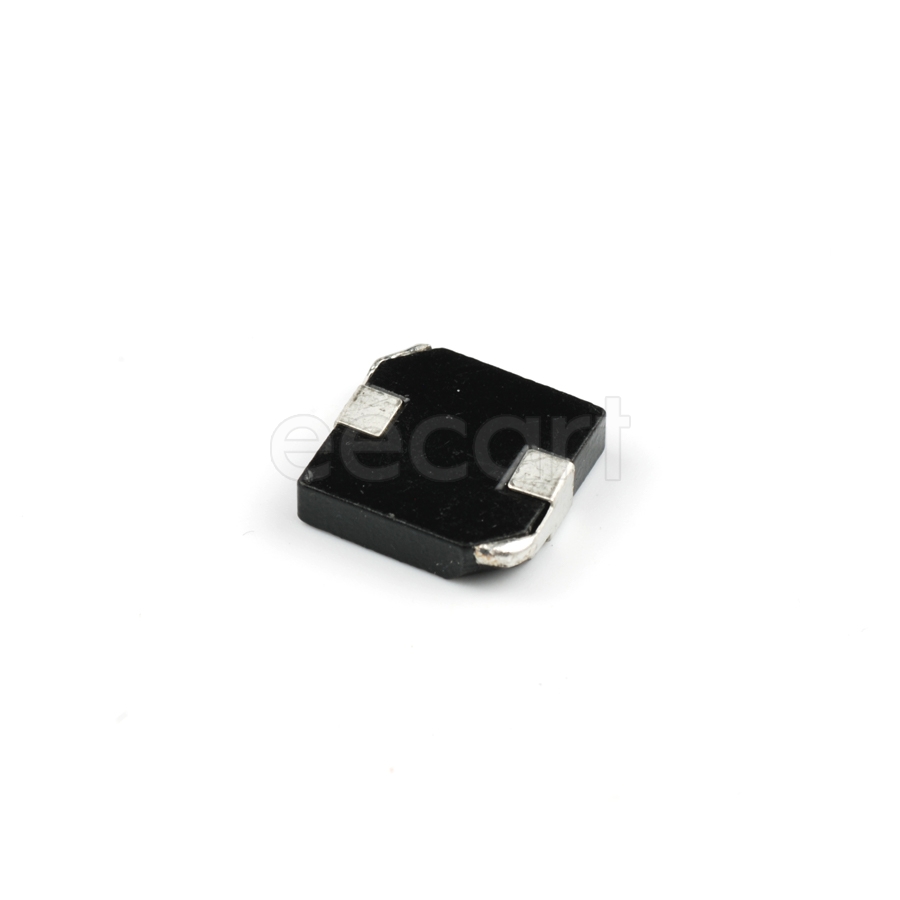

SRP1235-1R0M
Manufacturer:
Bourns
Mfr.Part #:
SRP1235-1R0M
Datasheet:
Description:
Fixed Inductors 13.90mmL×13.50mmW×3.70mmH SMD/SMT 1 µH 20 % 24 A 3.5 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 3.7 mm |
| Length | 13.9 mm |
| Width | 13.4874 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Height | 3.7 mm |
| Packaging | Reel |
| Depth | 13.5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 60 MHz |
| Current | 10 A |
| Current Rating | 24 A |
| DC Resistance (DCR) | 3.5 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 1 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 24 A |
| inductance tolerance | 20 % |
| Max DC Current | 24 A |
| DC Current | 24 A |
| Saturation Current | 36 A |
| Schedule B | 8504500000 |
