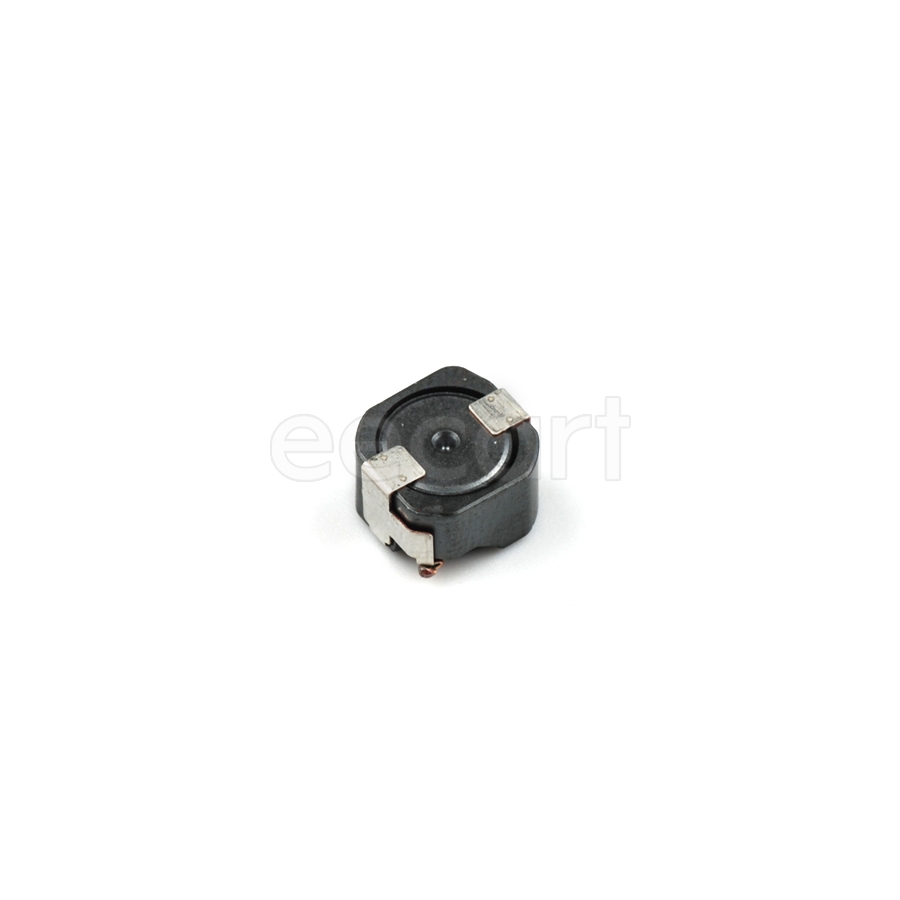

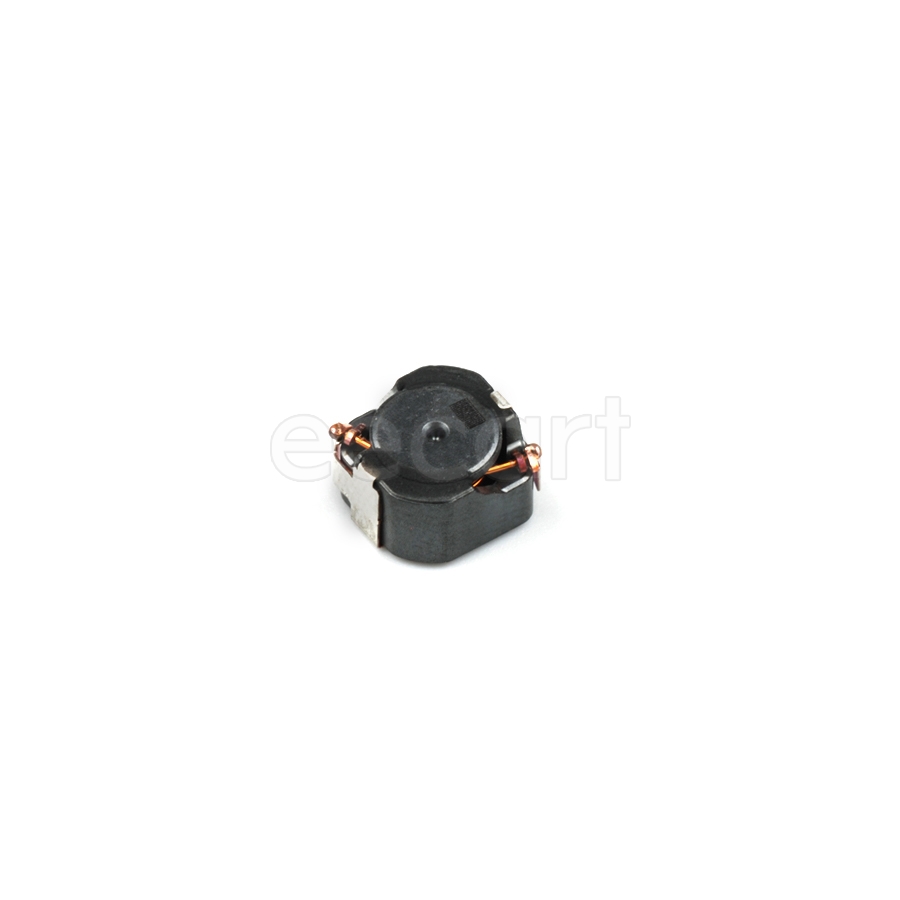

SRP1250-100M
Manufacturer:
Bourns
Mfr.Part #:
SRP1250-100M
Datasheet:
Description:
Fixed Inductors 13.90mmL×13.50mmW×5.90mmH SMD/SMT 10 µH 20 % 9 A 25.5 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 5.9 mm |
| Length | 13.9 mm |
| Width | 13.5 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Height | 5.2 mm |
| Material | Ferrite |
| Packaging | Reel |
| Depth | 13.5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Current Rating | 9 A |
| DC Resistance (DCR) | 25.5 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 10 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 9 A |
| inductance tolerance | 20 % |
| Max DC Current | 9 A |
| DC Current | 9 A |
| Saturation Current | 16 A |
| Schedule B | 8504500000 |
| Composition(Kit Type) | Wirewound |
| Type | Wirewound |
Stock: 538
Distributors
pcbx
pcbxUnit Price$0.87630
Ext.Price$0.87630
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.87630 | $0.87630 |
| 10 | $0.72583 | $7.25830 |
| 25 | $0.67899 | $16.97475 |
| 50 | $0.63517 | $31.75850 |
| 100 | $0.59417 | $59.41700 |
| 300 | $0.53904 | $161.71200 |
| 500 | $0.48902 | $244.51000 |
