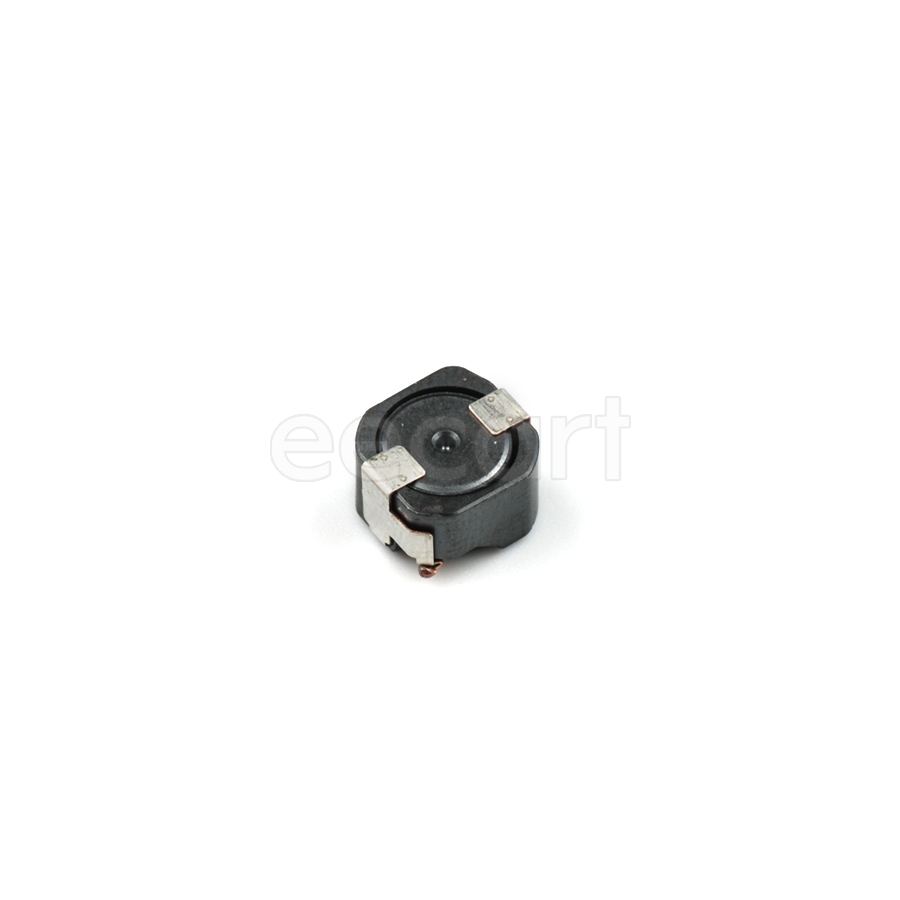

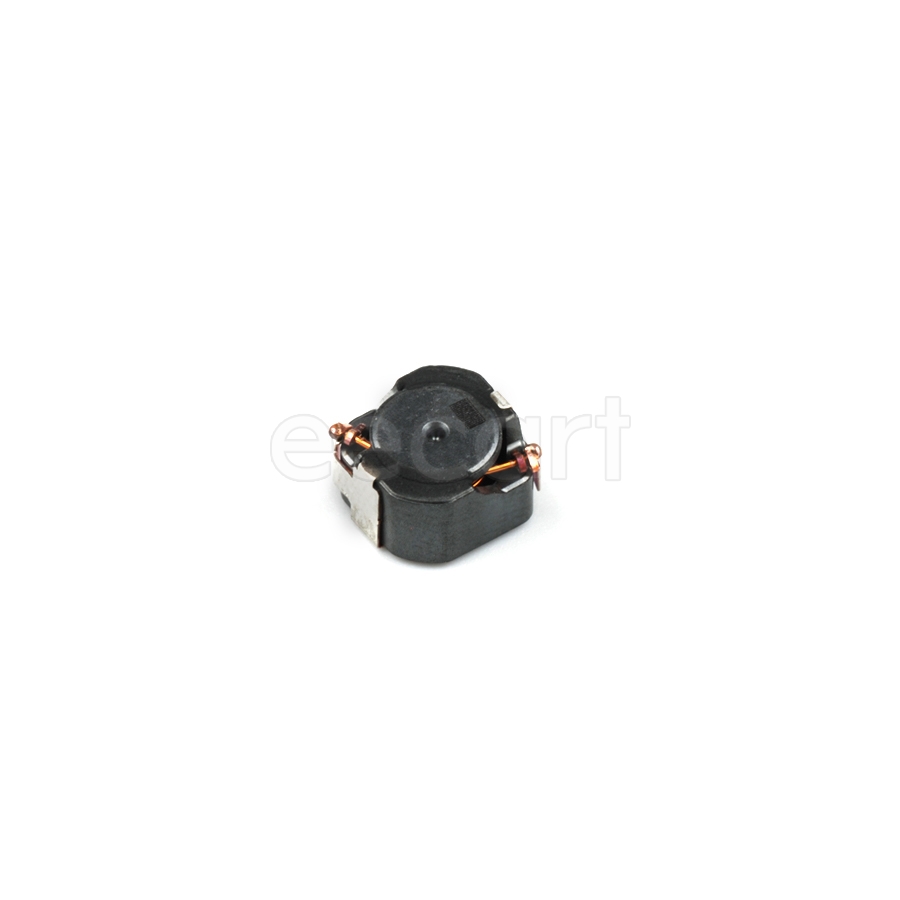

SRP1250-2R7M
Manufacturer:
Bourns
Mfr.Part #:
SRP1250-2R7M
Datasheet:
Description:
Fixed Inductors 13.90mmL×13.50mmW×5.20mmH SMD/SMT 2.7 µH 20 % 17 A 7.3 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 5.9 mm |
| Length | 13.9 mm |
| Width | 13.5 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Height | 5.9 mm |
| Material | Ferrite |
| Packaging | Reel |
| Depth | 13.5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Current Rating | 17 A |
| DC Resistance (DCR) | 7.3 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 2.7 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 17 A |
| inductance tolerance | 20 % |
| Max DC Current | 17 A |
| DC Current | 17 A |
| Saturation Current | 32 A |
| Schedule B | 8504500000 |
| Composition(Kit Type) | Wirewound |
| Type | Wirewound |
Stock: 5
Distributors
pcbx
pcbxUnit Price$0.96323
Ext.Price$0.96323
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.96323 | $0.96323 |
| 10 | $0.94229 | $9.42290 |
| 25 | $0.92658 | $23.16450 |
