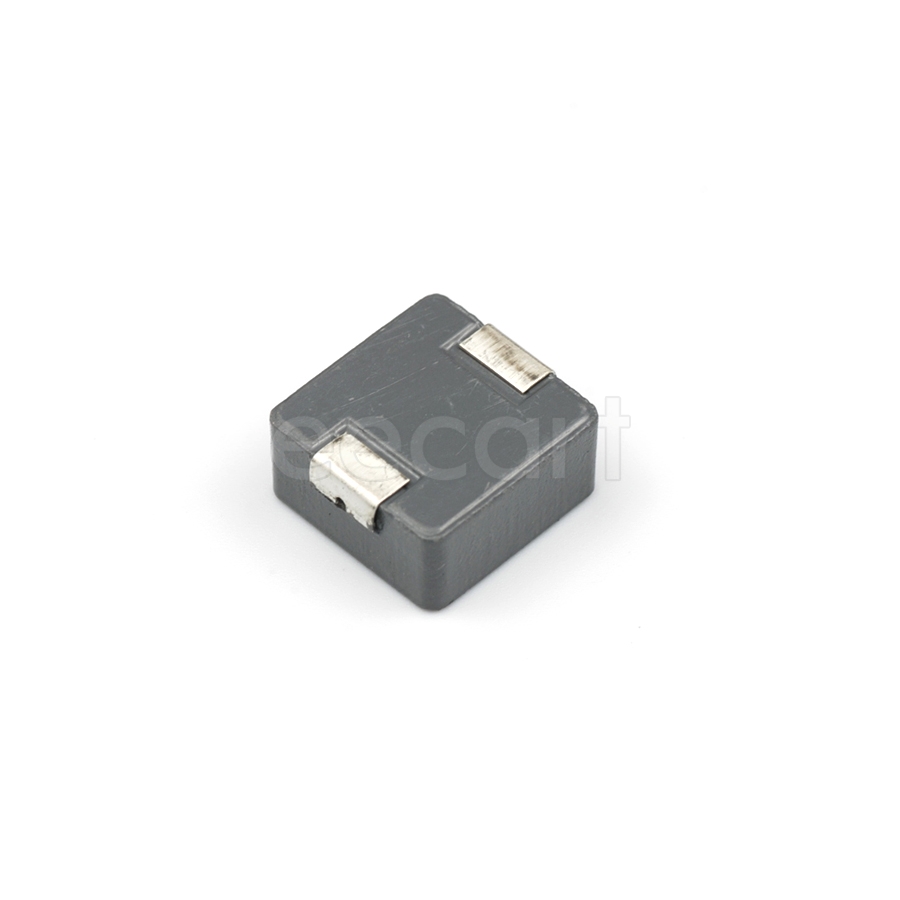

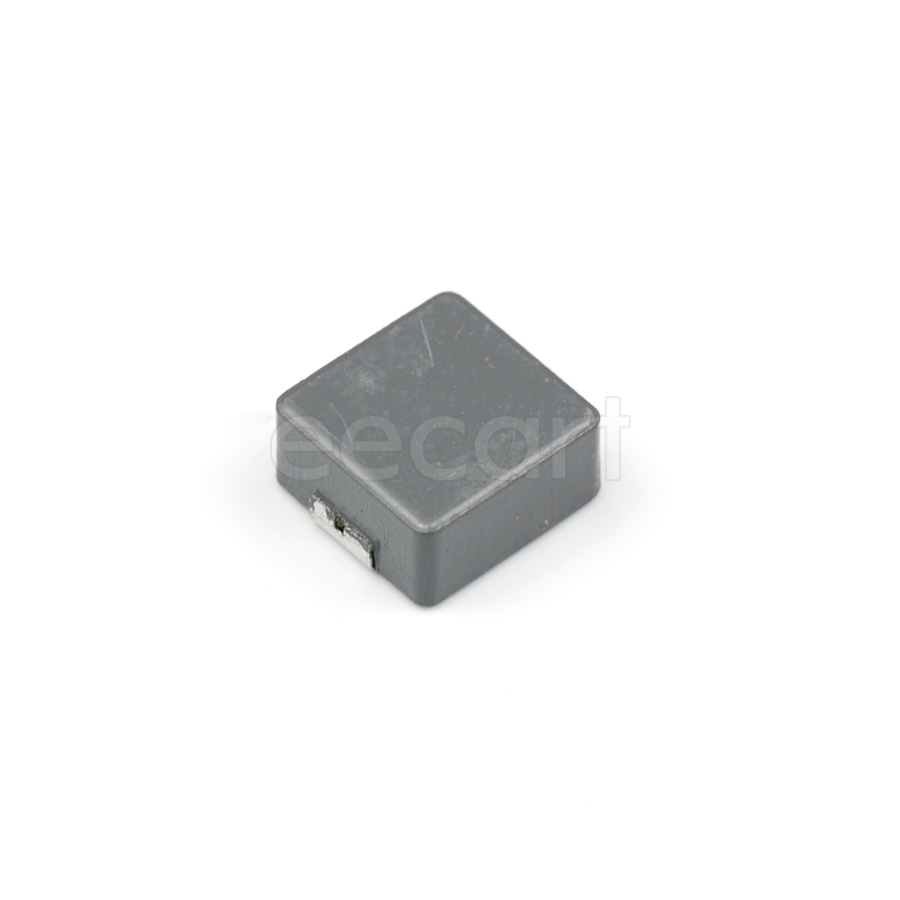

SRP1265A-100M
Manufacturer:
Bourns
Mfr.Part #:
SRP1265A-100M
Datasheet:
Description:
Fixed Inductors 13.50mmL×12.50mmW×6.40mmH SMD/SMT 10 µH 20 % 10 A 16.5 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 6.4 mm |
| Length | 13.5 mm |
| Width | 12.4968 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Height | 6.2 mm |
| Packaging | Reel |
| Depth | 12.5 mm |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Ratings | AEC-Q200 |
| Self Resonant Frequency | 10 MHz |
| Q Factor | 20 |
| Current Rating | 10 A |
| DC Resistance (DCR) | 16.5 mΩ |
| Test Frequency | 100 kHz |
| Shielding | Shielded |
| Inductance | 10 µH |
| Core Material | Carbonyl Powder |
| RMS Current (Irms) | 10 A |
| inductance tolerance | 20 % |
| Max DC Current | 10 A |
| Series Resistance | 16.5 mΩ |
| Saturation Current | 15.5 A |
| Schedule B | 8504500000 |
| Composition(Kit Type) | Wirewound |
| Type | Wirewound |
Stock: 1038
Distributors
pcbx
pcbxUnit Price$0.75063
Ext.Price$0.75063
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.75063 | $0.75063 |
| 10 | $0.63863 | $6.38630 |
| 25 | $0.57366 | $14.34150 |
| 50 | $0.56288 | $28.14400 |
| 100 | $0.55229 | $55.22900 |
| 300 | $0.52557 | $157.67100 |
| 500 | $0.50013 | $250.06500 |
| 1000 | $0.45995 | $459.95000 |
