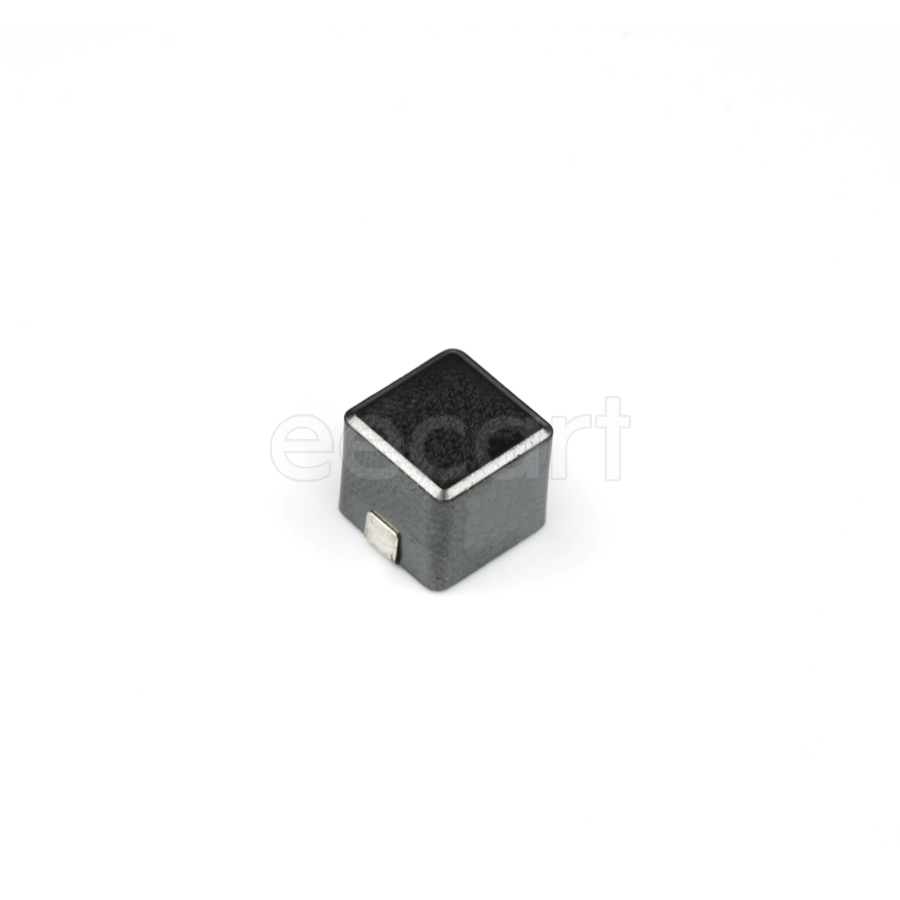

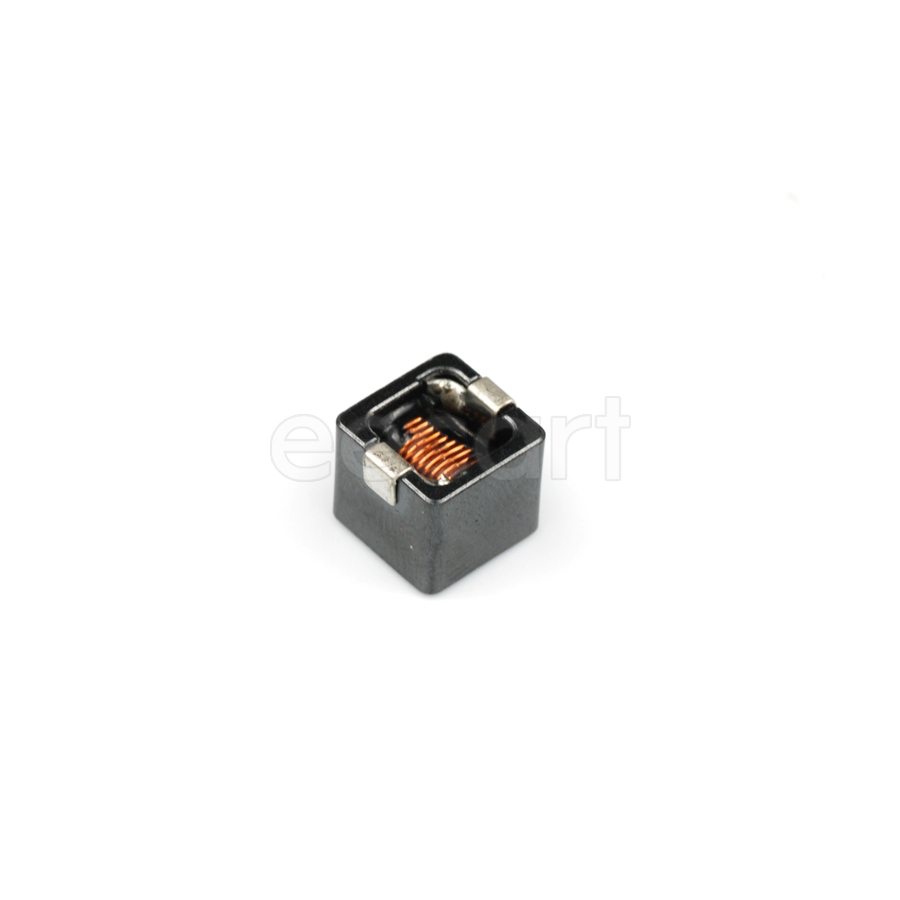

SRP1265A-3R3M
Manufacturer:
Bourns
Mfr.Part #:
SRP1265A-3R3M
Datasheet:
Description:
Fixed Inductors 13.50mmL×12.50mmW×6.20mmH SMD/SMT 3.3 µH 20 % 18 A 6.8 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 6.4 mm |
| Length | 13.4874 mm |
| Width | 12.4968 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Height | 6.2 mm |
| Packaging | Reel |
| Depth | 12.8 mm |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Ratings | AEC-Q200 |
| Self Resonant Frequency | 20 MHz |
| Current Rating | 18 A |
| DC Resistance (DCR) | 6.8 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 3.3 µH |
| Core Material | Carbonyl Powder |
| RMS Current (Irms) | 18 A |
| inductance tolerance | 20 % |
| Max DC Current | 18 A |
| DC Current | 18 A |
| Saturation Current | 30 A |
| Schedule B | 8504500000 |
| Composition(Kit Type) | Wirewound |
| Type | Wirewound |
| Q Factor | 20 |
Stock: 1692
Distributors
pcbx
pcbxUnit Price$0.83270
Ext.Price$0.83270
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.83270 | $0.83270 |
| 10 | $0.68822 | $6.88220 |
| 25 | $0.58734 | $14.68350 |
| 50 | $0.57262 | $28.63100 |
| 100 | $0.55827 | $55.82700 |
| 300 | $0.50767 | $152.30100 |
| 500 | $0.46166 | $230.83000 |
| 1000 | $0.45995 | $459.95000 |
