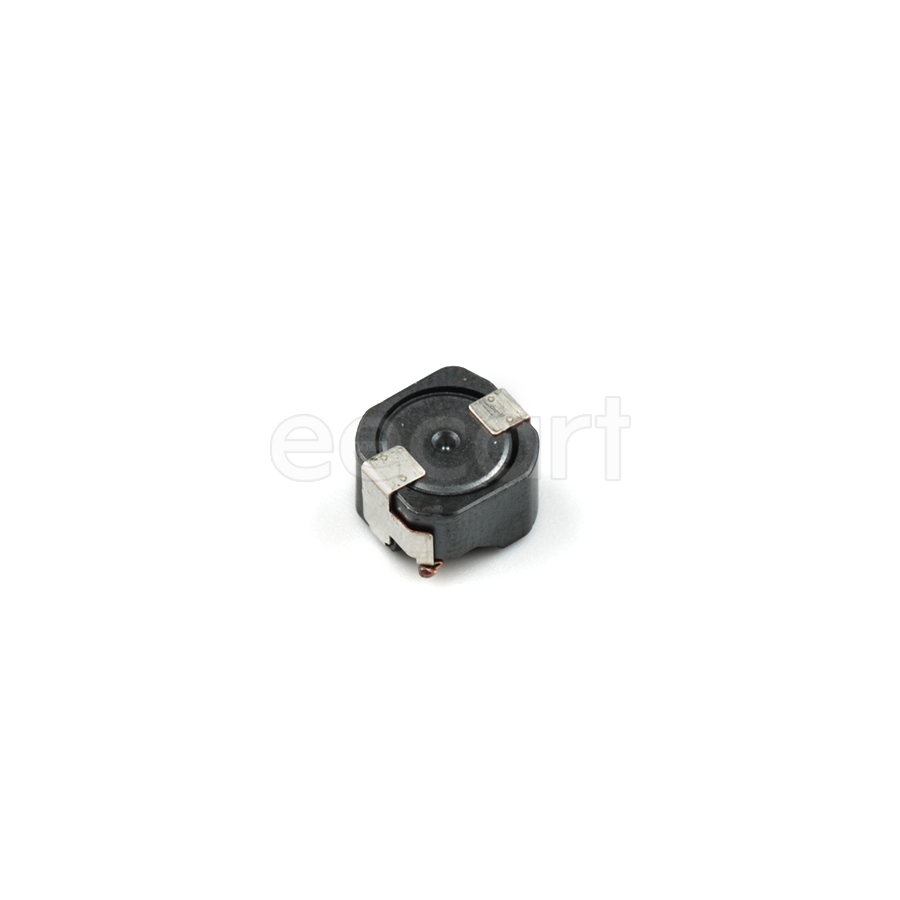

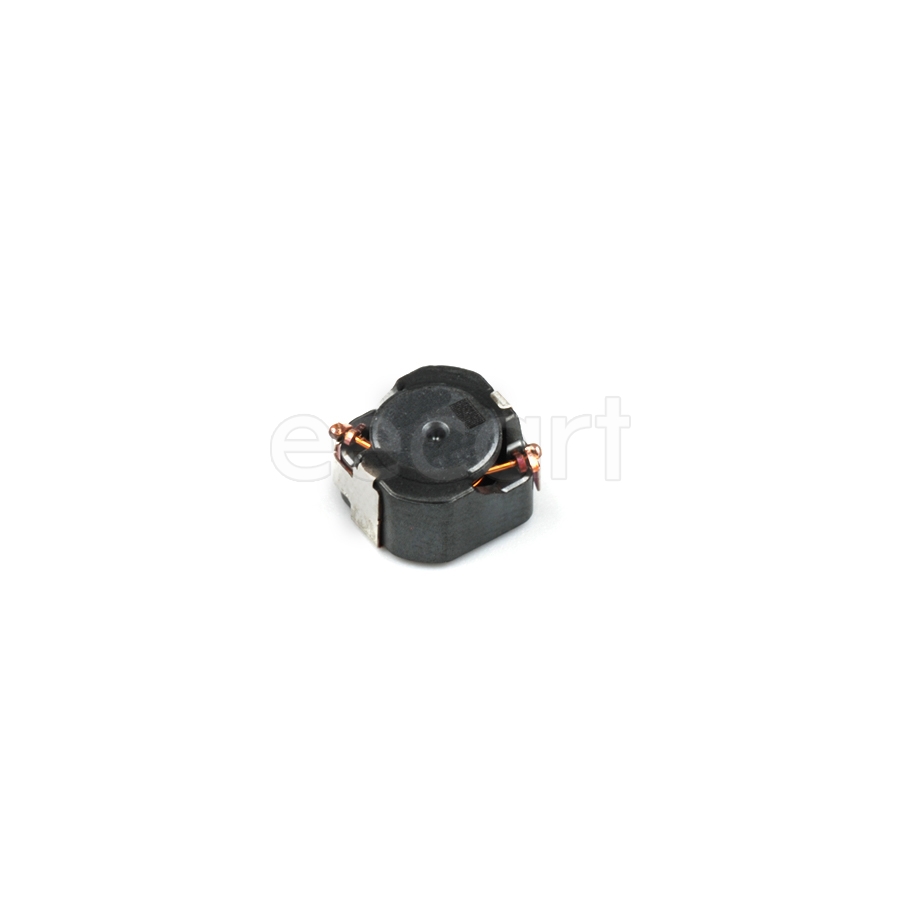

SRP1270-1R5M
Manufacturer:
Bourns
Mfr.Part #:
SRP1270-1R5M
Datasheet:
Description:
Fixed Inductors 3.70mmL×13.70mmW×7.00mmH SMD/SMT 1.5 µH 20 % 27 A 2.6 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 7.01 mm |
| Length | 13.7 mm |
| Width | 13.7 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Height | 7 mm |
| Packaging | Reel |
| Depth | 13.7 mm |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 31 MHz |
| Current | 12 A |
| Current Rating | 27 A |
| DC Resistance (DCR) | 2.6 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 1.5 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 27 A |
| inductance tolerance | 20 % |
| Max DC Current | 27 A |
| DC Current | 27 A |
| Saturation Current | 48 A |
| Schedule B | 8504500000 |
| Composition(Kit Type) | Wirewound |
| Type | Wirewound |
Stock: 228
Distributors
pcbx
pcbxUnit Price$0.83223
Ext.Price$0.83223
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.83223 | $0.83223 |
| 10 | $0.68198 | $6.81980 |
| 25 | $0.63888 | $15.97200 |
| 50 | $0.59850 | $29.92500 |
| 100 | $0.56068 | $56.06800 |
| 300 | $0.49847 | $149.54100 |
