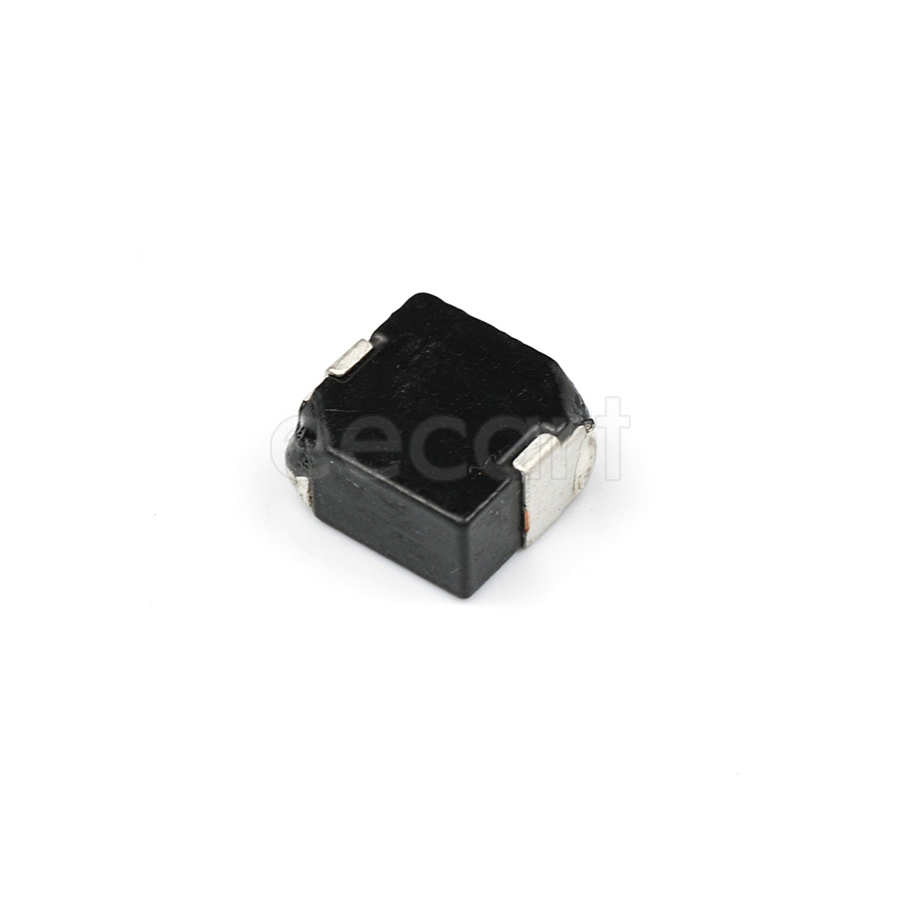

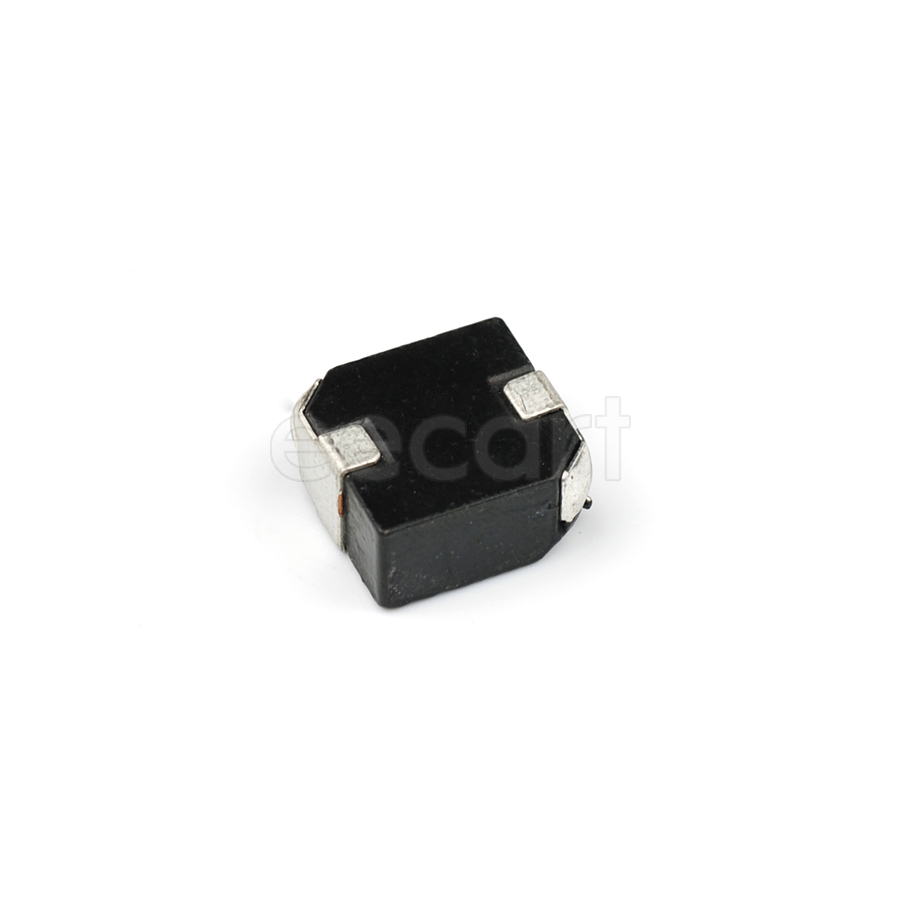

SRP1270-2R2M
Manufacturer:
Bourns
Mfr.Part #:
SRP1270-2R2M
Datasheet:
Description:
Fixed Inductors 13.70mmL×13.70mmW×7.00mmH SMD/SMT 2.2 µH 20 % 22 A 4.2 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 7.01 mm |
| Length | 13.7 mm |
| Width | 13.7 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Height | 7 mm |
| Packaging | Reel |
| Depth | 13.7 mm |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 25 MHz |
| Current | 46 A |
| Current Rating | 22 A |
| DC Resistance (DCR) | 4.2 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 2.2 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 22 A |
| inductance tolerance | 20 % |
| Max DC Current | 22 A |
| Series Resistance | 4.2 mΩ |
| DC Current | 22 A |
| Saturation Current | 40 A |
| Schedule B | 8504500000 |
| Composition(Kit Type) | Wirewound |
| Type | Wirewound |
Stock: 760
Distributors
pcbx
pcbxUnit Price$0.83270
Ext.Price$0.83270
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.83270 | $0.83270 |
| 10 | $0.68223 | $6.82230 |
| 25 | $0.63942 | $15.98550 |
| 50 | $0.59930 | $29.96500 |
| 100 | $0.56169 | $56.16900 |
| 300 | $0.50781 | $152.34300 |
| 500 | $0.45910 | $229.55000 |
