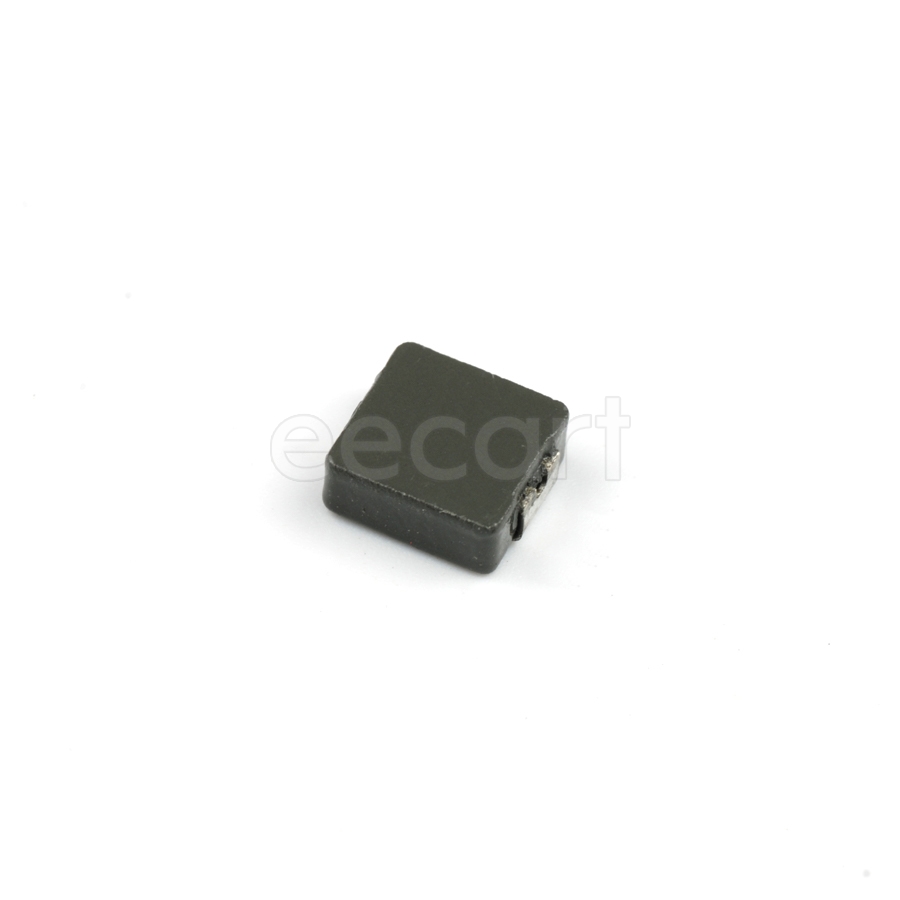

SRP1770TA-330M
Manufacturer:
Bourns
Mfr.Part #:
SRP1770TA-330M
Datasheet:
Description:
Fixed Inductors 16.90mmL×16.90mmW×7.00mmH SMD/SMT 33 µH 20 % 10.7 A 44 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 7.01 mm |
| Length | 17.6 mm |
| Width | 16.9164 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Reel |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Ratings | AEC-Q200 |
| Self Resonant Frequency | 4 MHz |
| Current Rating | 10.7 A |
| DC Resistance (DCR) | 44 mΩ |
| Test Frequency | 100 kHz |
| Shielding | Shielded |
| Inductance | 33 µH |
| Core Material | Carbonyl Powder |
| RMS Current (Irms) | 10.7 A |
| inductance tolerance | 20 % |
| Saturation Current | 15 A |
| Schedule B | 8504500000 |
| Composition(Kit Type) | Wirewound |
| Height | 6.7 mm |
| Q Factor | 20 |
| Type | Wirewound |
Stock: 13
Distributors
pcbx
pcbxUnit Price$4.28294
Ext.Price$4.28294
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.28294 | $4.28294 |
| 10 | $3.63024 | $36.30240 |
| 25 | $3.36003 | $84.00075 |
| 50 | $3.10993 | $155.49650 |
| 100 | $2.87848 | $287.84800 |
| 300 | $2.78515 | $835.54500 |
| 500 | $2.69485 | $1347.42500 |
| 1000 | $2.61221 | $2612.21000 |
