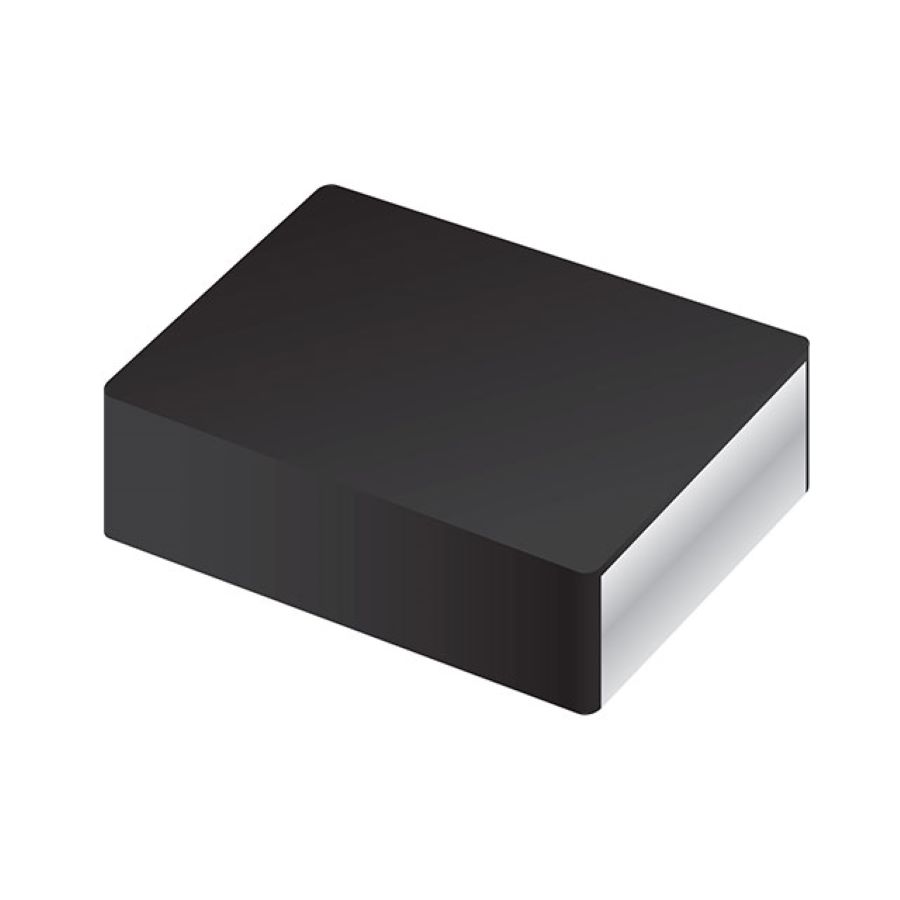

SRP2510A-R22M
Manufacturer:
Bourns
Mfr.Part #:
SRP2510A-R22M
Datasheet:
Description:
Fixed Inductors 1008(2520 Metric) SMD/SMT 220 nH 20 % 5.9 A 12.5 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 1 mm |
| Length | 2.5 mm |
| Width | 2 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Height | 1 mm |
| Packaging | Reel |
| RoHS | Non-Compliant |
| Ratings | AEC-Q200 |
| Self Resonant Frequency | 170 MHz |
| Type | Wirewound |
| Current Rating | 5.9 A |
| DC Resistance (DCR) | 12.5 mΩ |
| Test Frequency | 1 MHz |
| Shielding | Shielded |
| Inductance | 220 nH |
| Core Material | Ferrite |
| inductance tolerance | 20 % |
| Saturation Current | 7.9 A |
| Schedule B | 8504500000 |
Stock: 11816
Distributors
pcbx
pcbxUnit Price$0.25050
Ext.Price$0.25050
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.25050 | $0.25050 |
| 10 | $0.20775 | $2.07750 |
| 50 | $0.18894 | $9.44700 |
| 100 | $0.17184 | $17.18400 |
| 500 | $0.15569 | $77.84500 |
| 1000 | $0.14106 | $141.06000 |
| 3000 | $0.12482 | $374.46000 |
| 5000 | $0.11627 | $581.35000 |
