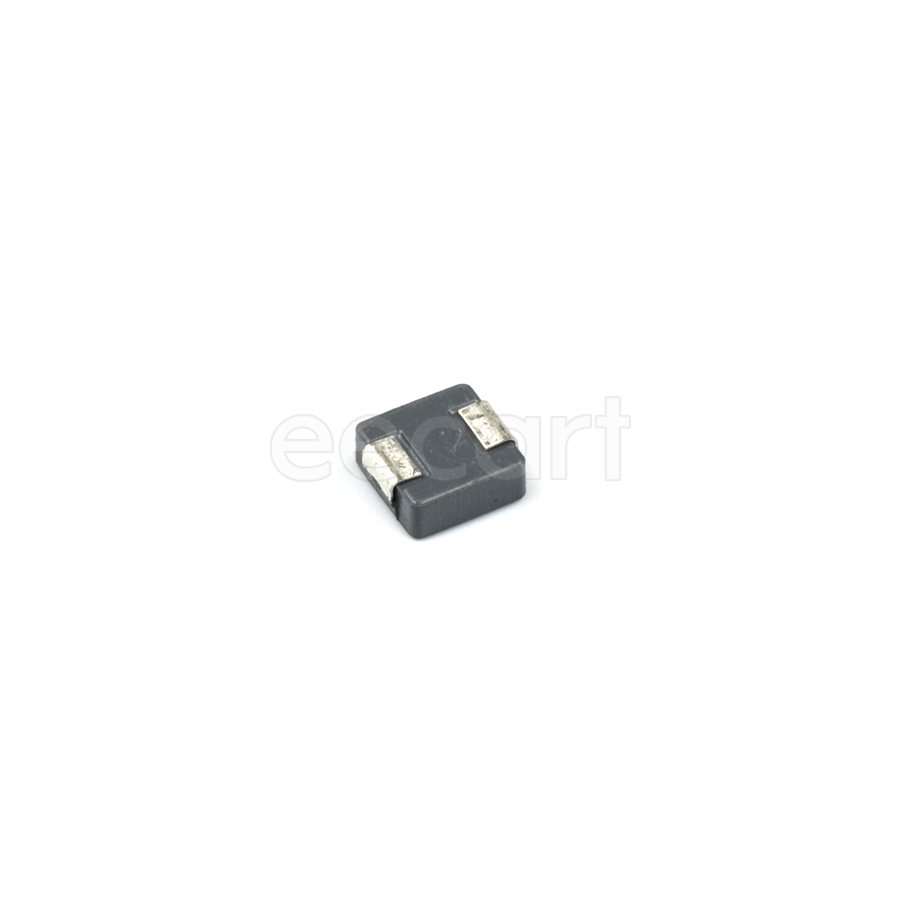

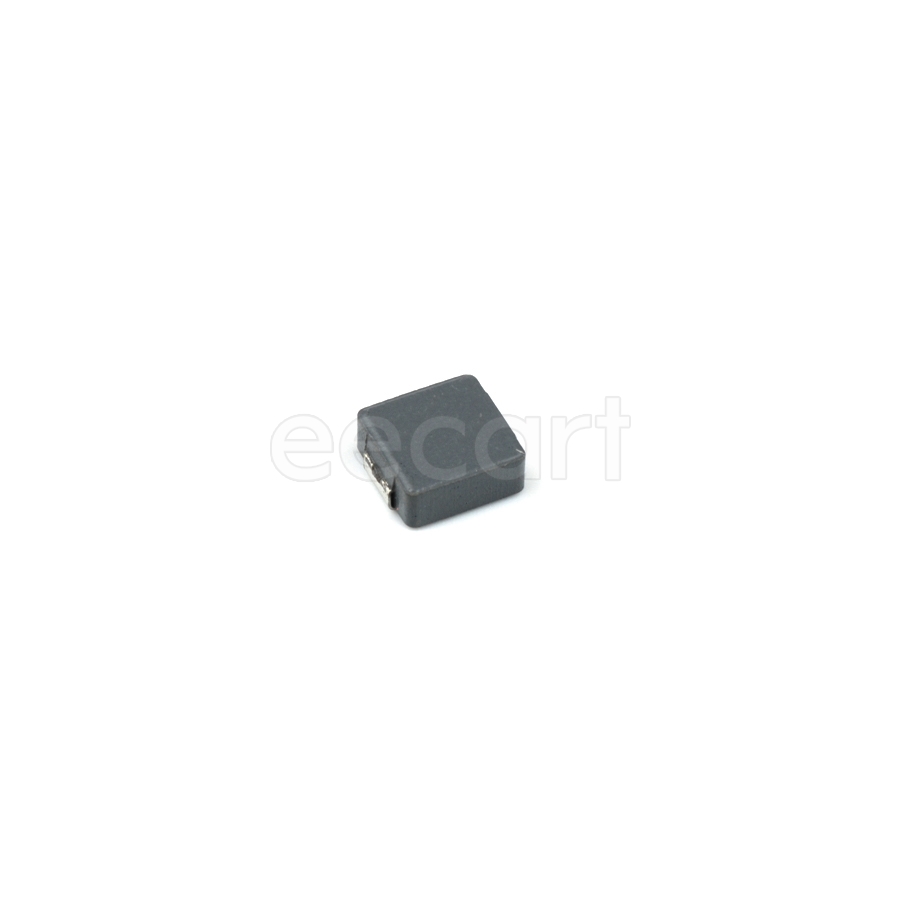

SRP5030T-2R2M
Manufacturer:
Bourns
Mfr.Part #:
SRP5030T-2R2M
Datasheet:
Description:
Fixed Inductors 5.70mmL×5.20mmW×3.00mmH SMD/SMT 2.2 µH 20 % 5.5 A 35 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 3 mm |
| Length | 5.7 mm |
| Width | 5.2 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Height | 2.8 mm |
| Material | Ferrite |
| Packaging | Reel |
| Depth | 5.4 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 100 kHz |
| Current Rating | 5.5 A |
| DC Resistance (DCR) | 35 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 2.2 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 5.5 A |
| inductance tolerance | 20 % |
| Max DC Current | 5.5 A |
| Saturation Current | 9 A |
| Schedule B | 8504500000 |
| Composition(Kit Type) | Wirewound |
| Type | Wirewound |
Stock: 43
Distributors
pcbx
pcbxUnit Price$1.60157
Ext.Price$1.60157
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.60157 | $1.60157 |
| 10 | $1.37270 | $13.72700 |
| 25 | $1.27222 | $31.80550 |
| 50 | $1.17910 | $58.95500 |
| 100 | $1.09280 | $109.28000 |
| 300 | $1.05850 | $317.55000 |
| 500 | $1.02529 | $512.64500 |
| 1000 | $0.99677 | $996.77000 |
